NSN 5120-01-339-0370 TE25FU, TE25FUA, 01-339-0370
Product Details | TORQUE WRENCH
5120-01-339-0370 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: TE25FU, TE25FUA, 5120-01-339-0370, 01-339-0370, 5120013390370, 013390370
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 15 MAY 1991 | 01-339-0370 | 17611 ( WRENCH, TORQUE ) |

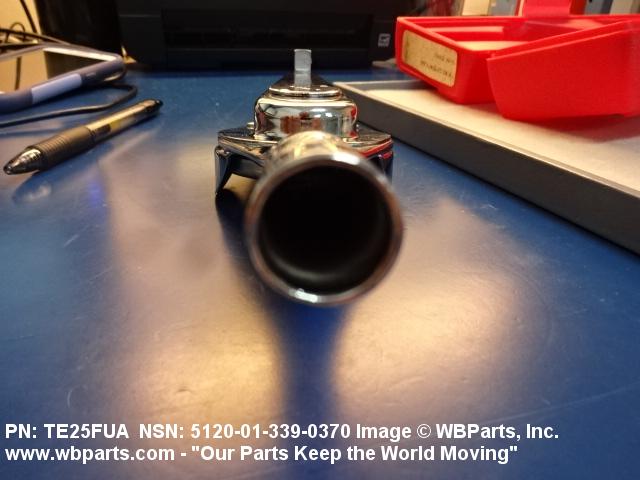

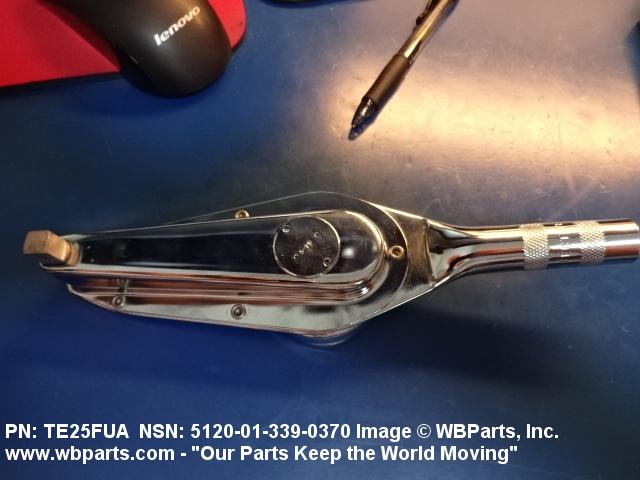

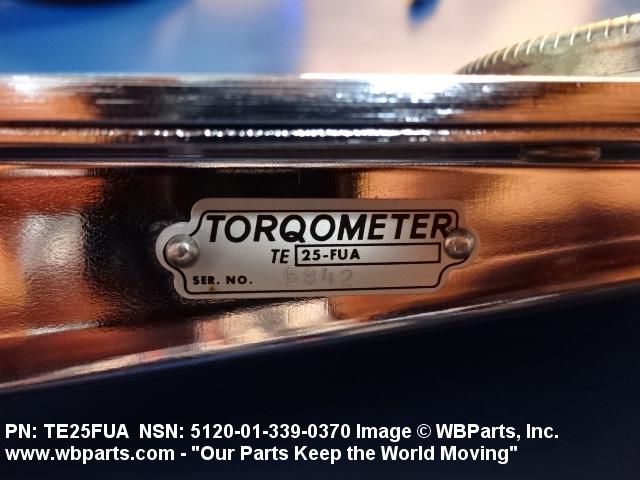

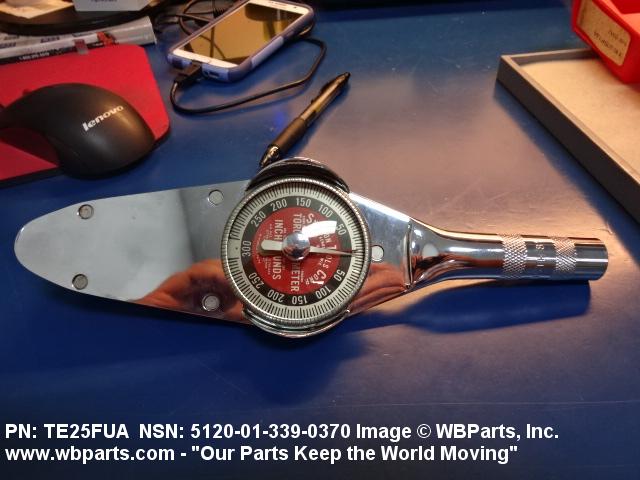

Drawings & Photos | NSN 5120-01-339-0370
Demand History | NSN 5120-01-339-0370
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-339-0370 | 2024-06-180 | 2 | United States |
| 5120-01-339-0370 | 2019-11-330 | 1 | TW |
| 5120-01-339-0370 | 2018-12-354 | 1 | United States |
| 5120-01-339-0370 | 2018-12-352 | 1 | United States |
| TE25FUA | 2015-01-23 | 2 | US |
Cross Reference | NSN 5120-01-339-0370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.14 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14 TY1CLCST3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.300 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| TE25FU | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| TE25FUA | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-339-0370
Technical Data | NSN 5120-01-339-0370
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 850 RIGID FRAME END DRIVE |
| OVERALL LENGTH | 9.906 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |

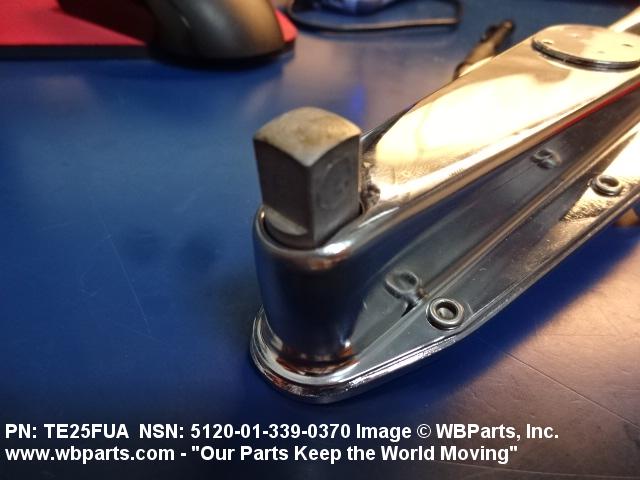

| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| TORQUE CAPACITY | 0.0 INCH-POUNDS MINIMUM AND 300.0 INCH-POUNDS MAXIMUM |

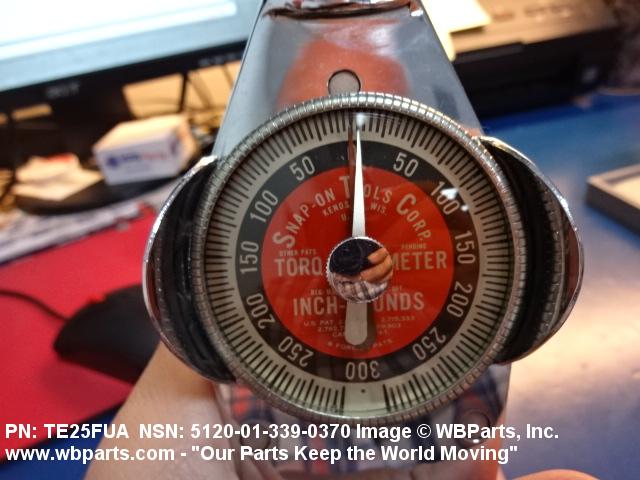

| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SIGNAL METHOD | DIAL INDICATOR |
| TORQUE SCALE GRADUATION | 5.00 INCH-POUNDS |

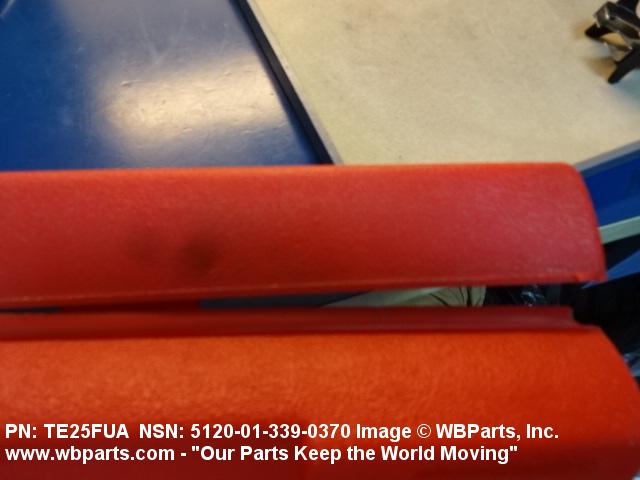

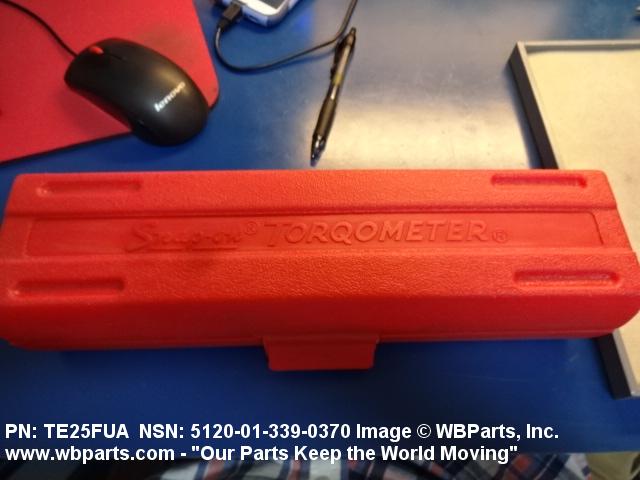

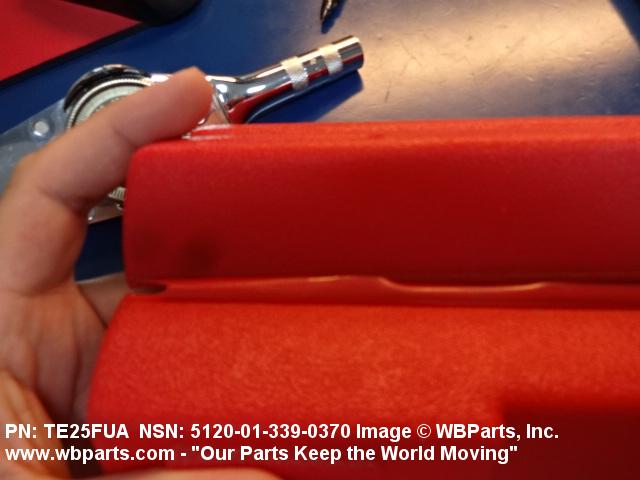

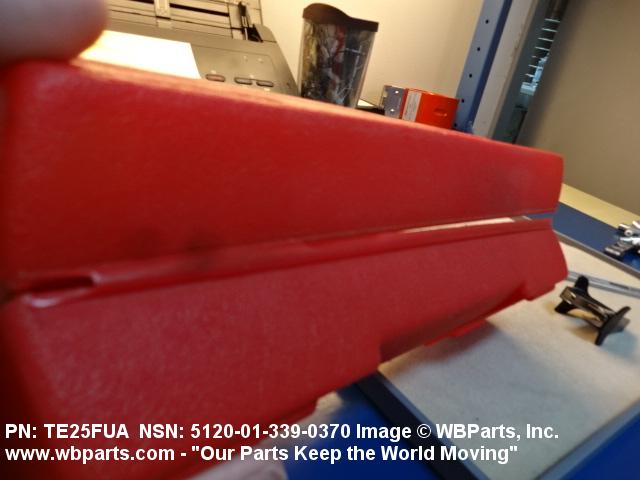

| FURNISHED ITEMS | CASE |
| SPECIAL FEATURES | MEMORY INDICATOR |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-339-0370
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
