Product Details | SLIP JOINT PLIERS

5120-01-335-1562 A tool having gripping jaws and a joint adjustable to two or more positions to provide a wide or narrow opening for the jaws. See also PLIERS and PLIERS (as modified).

Part Alternates: 91ACP, 91CP, 5120-01-335-1562, 01-335-1562, 5120013351562, 013351562

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 06 MAR 1991 01-335-1562

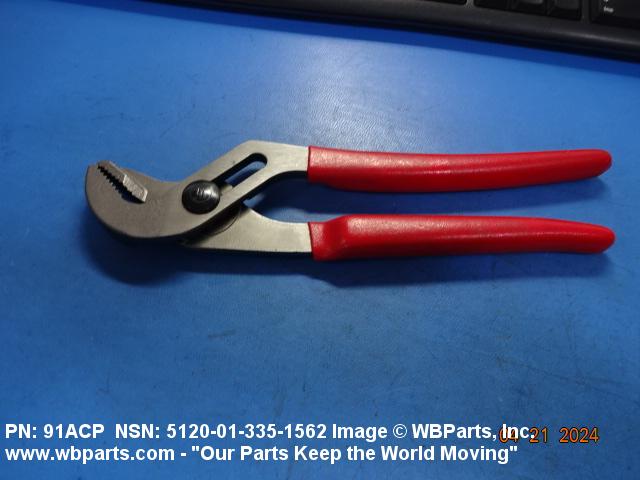

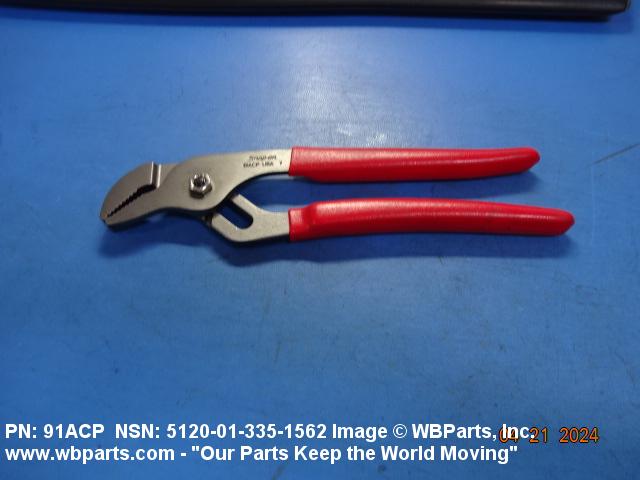

Drawings & Photos | NSN 5120-01-335-1562


Demand History | NSN 5120-01-335-1562

Part Number Request Date QTY Origin
5120-01-335-1562 2024-03-76 1 us
91ACP 2014-02-45 2 KR

Cross Reference | NSN 5120-01-335-1562

Part Number Cage Code Manufacturer

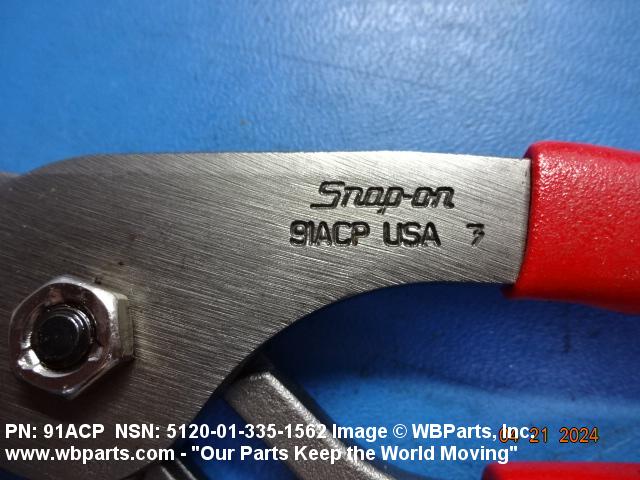

91ACP 55719 IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL
91CP 55719 IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL
B107.23 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B107.23 TY1CL1STA 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
B107.500 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-335-1562

Technical Data | NSN 5120-01-335-1562

Characteristic Specifications

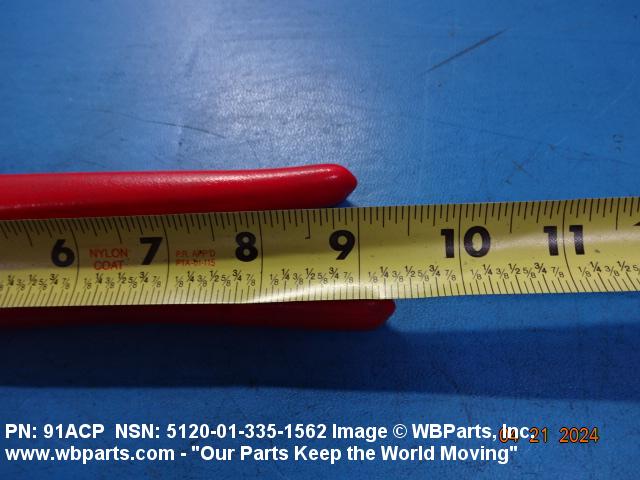

OVERALL LENGTH 9.250 INCHES NOMINAL
PLIERS STYLE DESIGNATOR A79 ANGLE NOSE, MULTIPLE TONGUE AND GROOVE
INSULATED HANDLE NOT PROVIDED

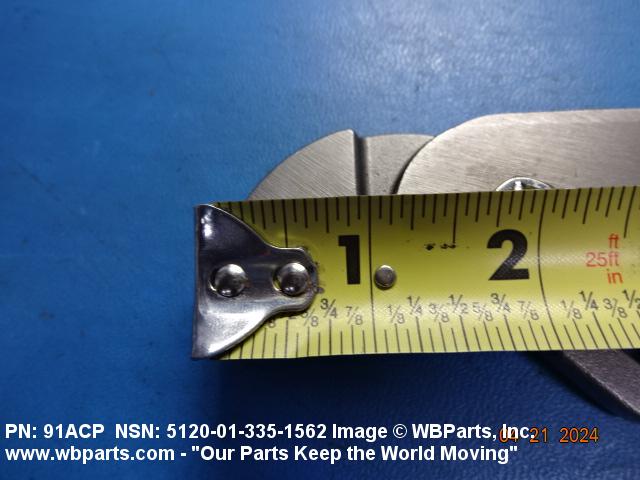

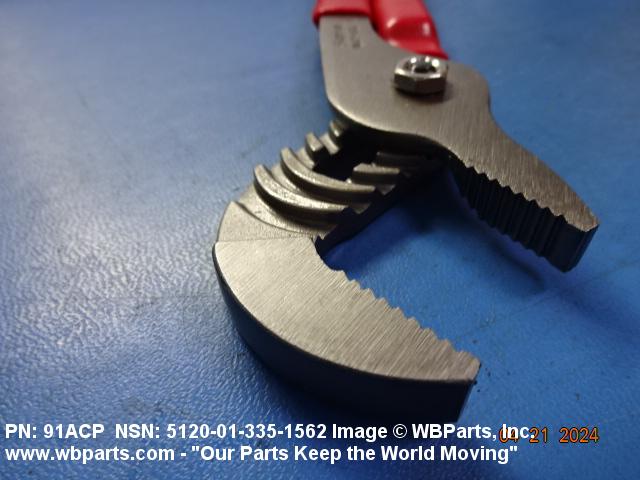

SPECIAL FEATURES VINYL GRIP HANDLES; STRAIGHT SERRATED JAWS; 5 JAW POSITIONS; 1-3/8 IN. JAW CAPACITY; INDUSTRIAL FINISH
III SUPPLEMENTARY FEATURES INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM

Restrictions/Controls & Freight Information | NSN 5120-01-335-1562

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5120-01-335-1562

Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
