Product Details | TORQUE WRENCH

5120-01-308-6994 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies

Part Alternates: TEX3005TL, 5120-01-308-6994, 01-308-6994, 5120013086994, 013086994

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 03 OCT 1989 01-308-6994

Drawings & Photos | NSN 5120-01-308-6994


Cross Reference | NSN 5120-01-308-6994

Part Number Cage Code Manufacturer
TEX3005TL 55719 IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-308-6994

Technical Data | NSN 5120-01-308-6994

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CHROMIUM OVERALL

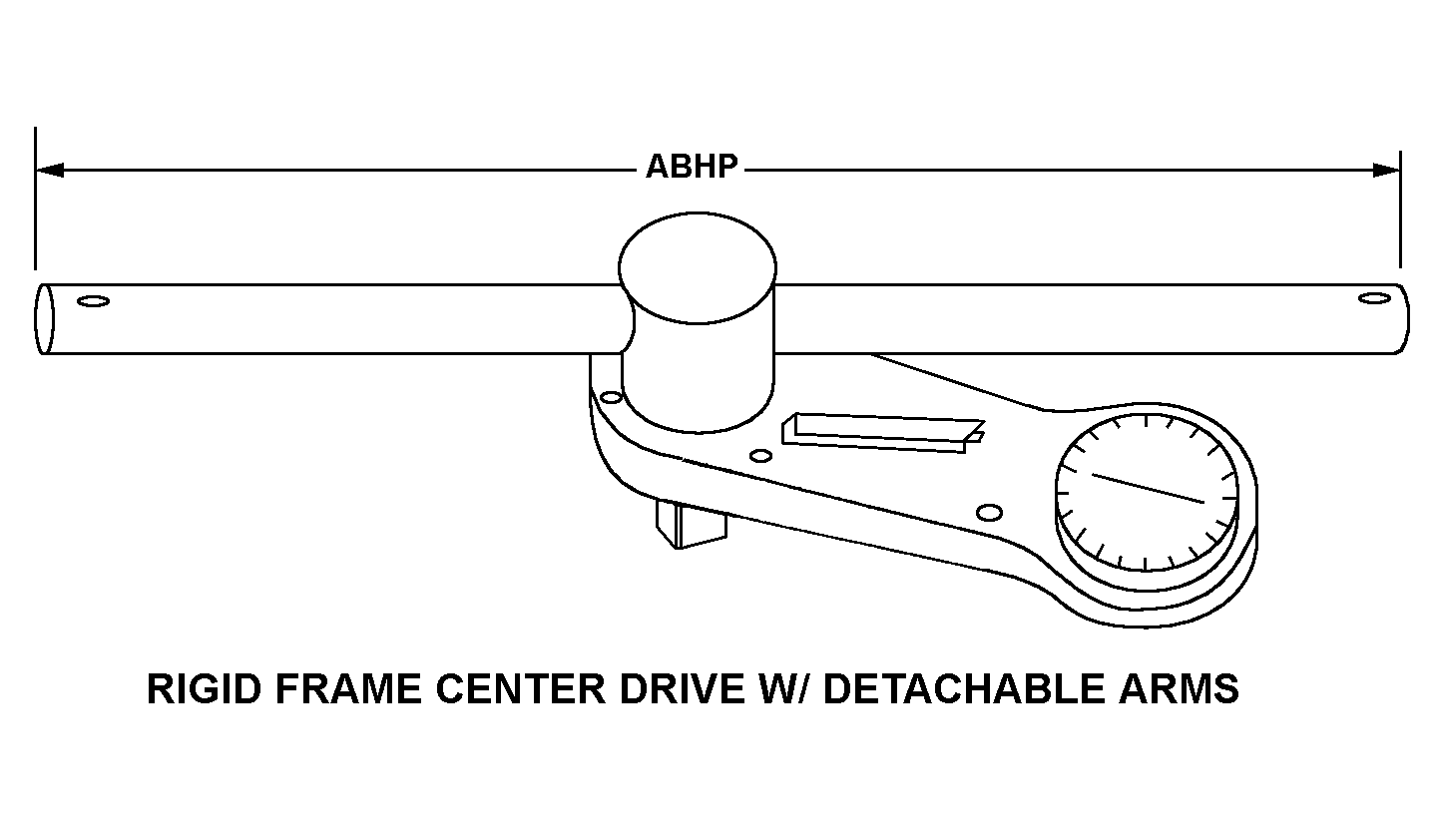

STYLE DESIGNATOR 854 RIGID FRAME CENTER DRIVE W/DETACHABLE ARMS
OVERALL LENGTH 12.000 INCHES NOMINAL
DRIVE SURFACE SIZE 1.500 INCHES NOMINAL FIRST END 1.500 INCHES NOMINAL SECOND END
DRIVE END SHAPE SQUARE FIRST END INTERNAL SQUARE SECOND END EXTERNAL
TORQUE CAPACITY 0.0 FOOT-POUNDS MINIMUM AND 3000.0 FOOT-POUNDS MAXIMUM
TORQUE INDICATING MECHANISM DIAL
TORQUE SIGNAL METHOD DIAL INDICATOR OR VISUAL
TORQUE SCALE GRADUATION 50.0 FOOT-POUNDS

Restrictions/Controls & Freight Information | NSN 5120-01-308-6994

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
