NSN 5120-01-306-8381 AS4167, AS4167 TY2CL2STE , AS4167 TY2CL2STESZ1/2
Product Details | OPEN END BOX WRENCH
5120-01-306-8381 A nonadjustable wrench having an open end box wrenching feature on one or both ends for installing or removing packing nuts, flare nuts, conduit fittings, and the like. It may have a ratchet mechanism. Excludes WRENCH, BOX and WRENCH, OPEN END.
Part Alternates: AS4167, AS4167 TY2CL2STE , AS4167 TY2CL2STESZ1/2, AS4167TY2CL2STE, AS4167TY2CL2STESZ12, 43216, 5120-01-306-8381, 01-306-8381, 5120013068381, 013068381
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 31 AUG 1989 | 01-306-8381 | 17184 ( WRENCH, OPEN END BOX ) |
Drawings & Photos | NSN 5120-01-306-8381
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-306-8381
Related Products | NSN 5120-01-306-8381
Technical Data | NSN 5120-01-306-8381
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |

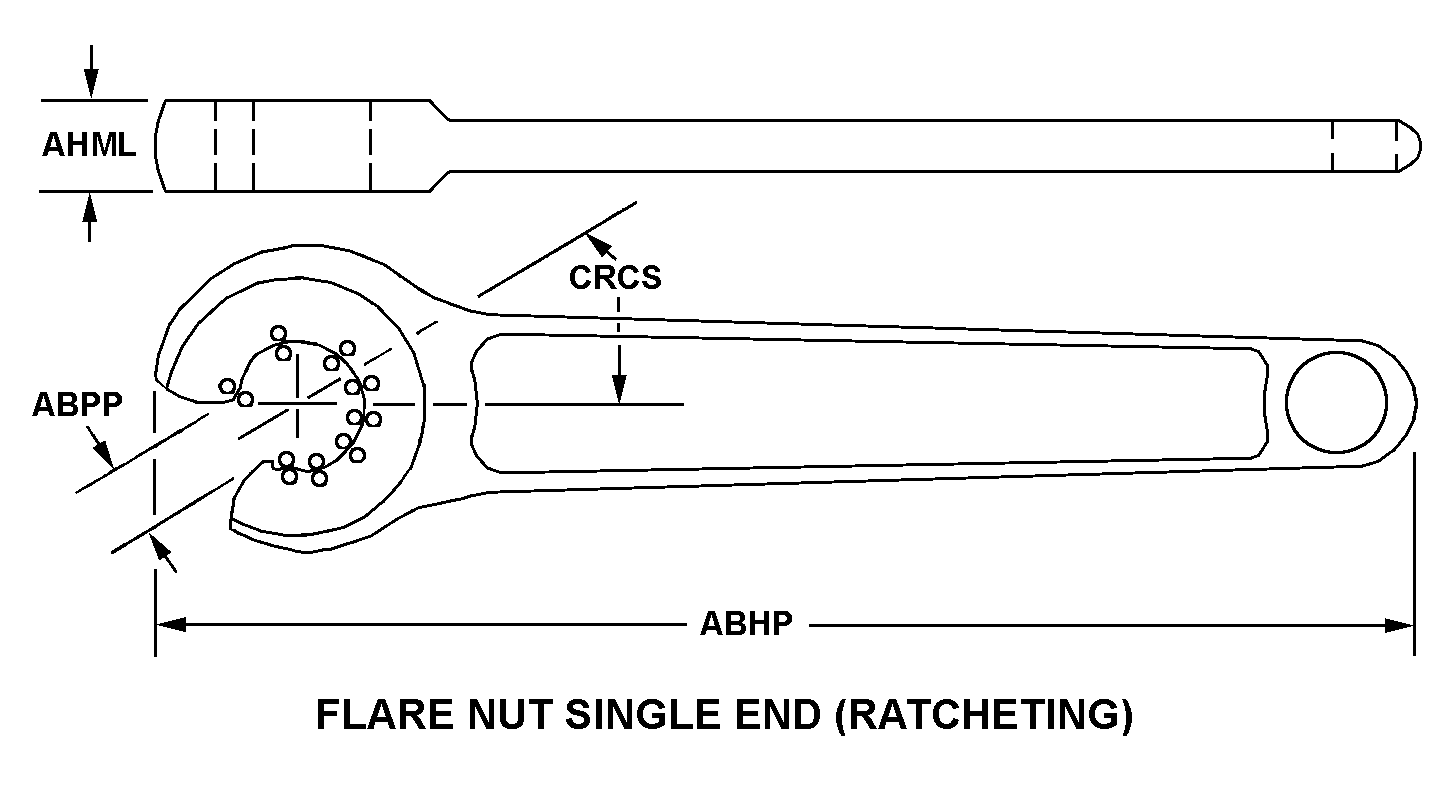

| STYLE DESIGNATOR | 125 FLARE NUT SINGLE END (RATCHETING) |
| OVERALL LENGTH | 5.000 INCHES MINIMUM |
| OPENING WIDTH | 0.317 INCHES MINIMUM |
| HEAD THICKNESS | 0.480 INCHES MAXIMUM |
| HEAD ANGLE | 35.0 DEGREES MAXIMUM |
| WRENCHING SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 12 POINT SINGLE END INTERNAL |
| SPECIFICATION/STANDARD DATA | 81343-AS4167 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 2 CLASS AND E STYLE AND 1/2 SIZE |
Restrictions/Controls & Freight Information | NSN 5120-01-306-8381
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-306-8381
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
