NSN 5120-01-297-6102 5860880, 01-297-6102, 012976102
Product Details | ELECTRONIC EQUIPMENT ALIGNMENT TOOL
5120-01-297-6102 An item designed for adjustment of electronic circuits, and which is insulated to reduce to a minimum the change in radio frequency inductance or capacitance in the circuit(s) under adjustment. Excludes screwdrivers and wrenches having a more specific item name.
Part Alternates: 5860880, 5120-01-297-6102, 01-297-6102, 5120012976102, 012976102
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 04 APR 1989 | 01-297-6102 | 13223 ( ALIGNMENT TOOL, ELECTRONIC EQUIPMENT ) |

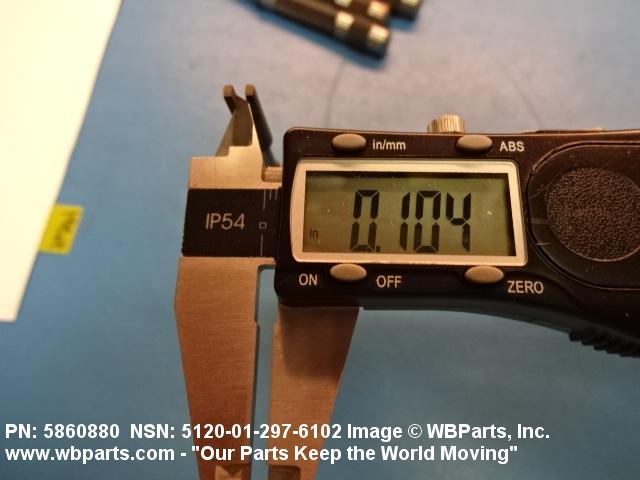

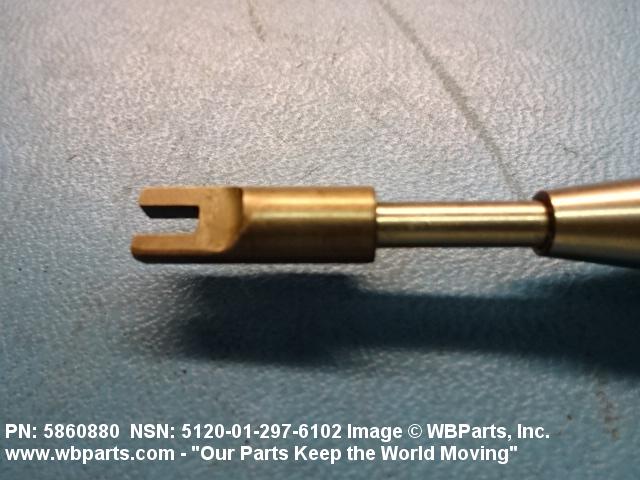

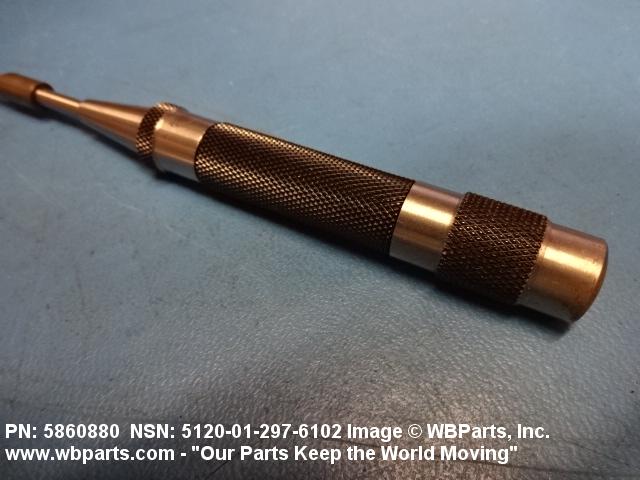

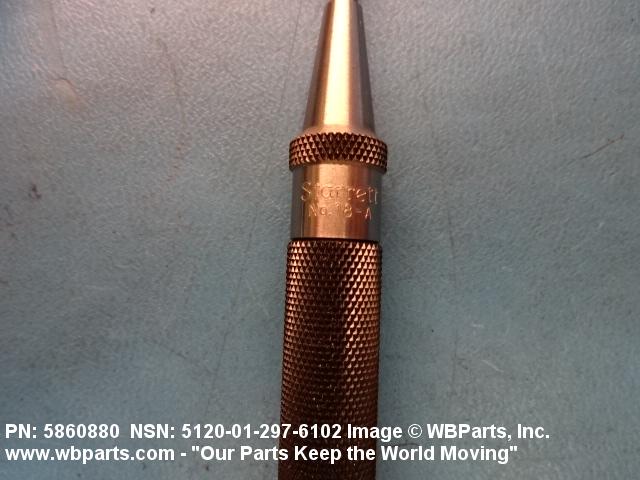

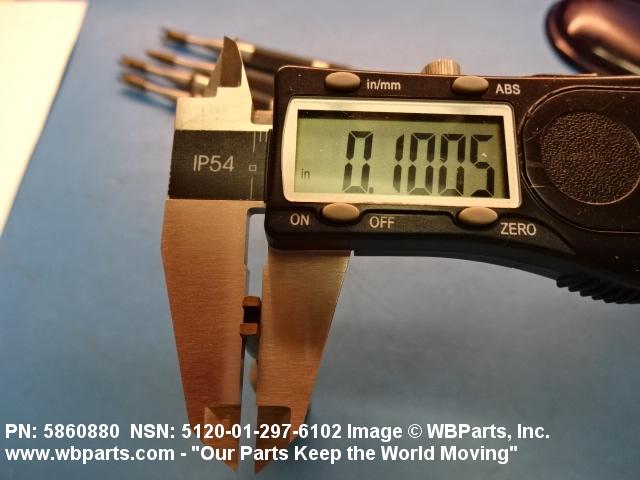

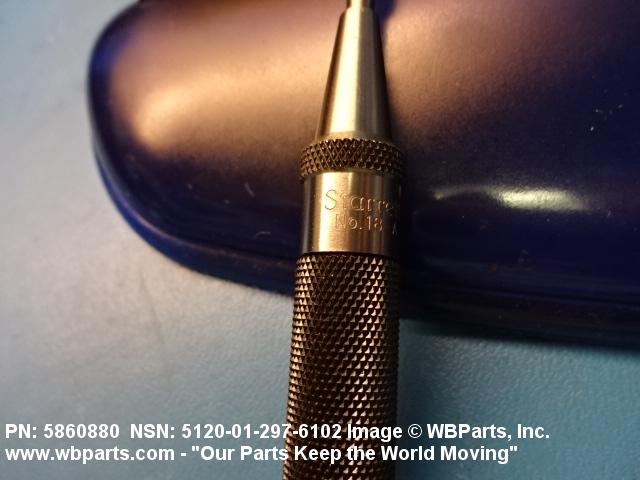

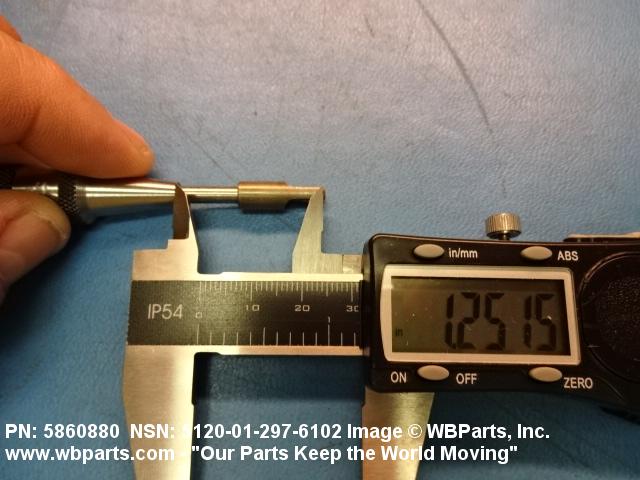

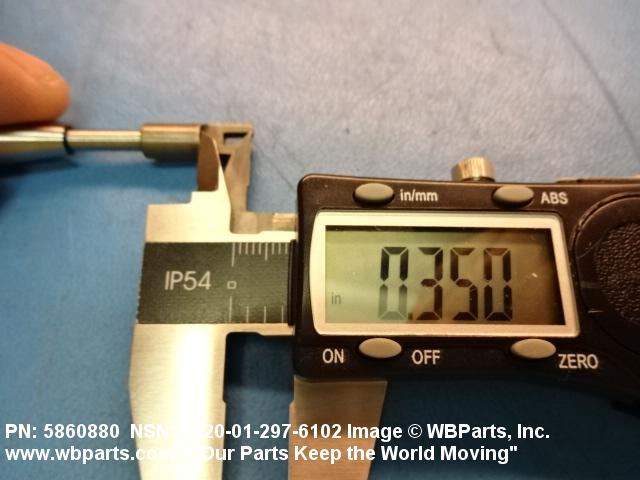

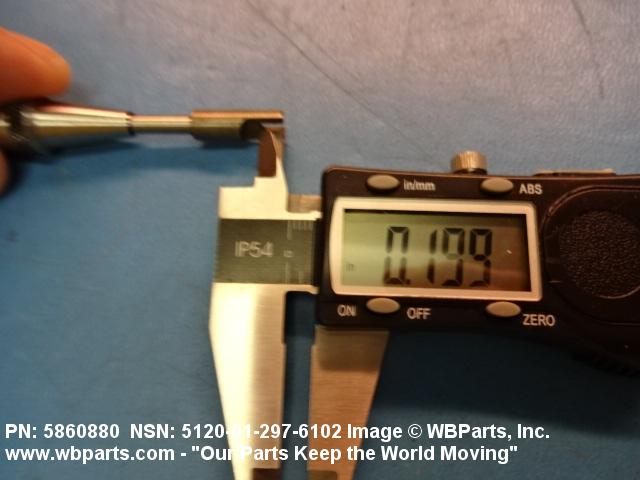

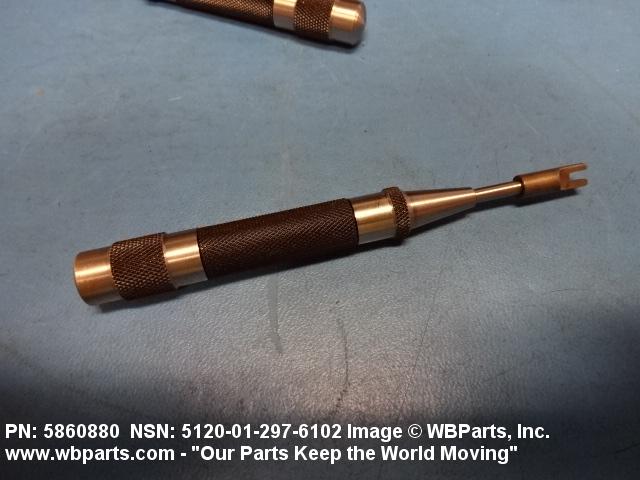

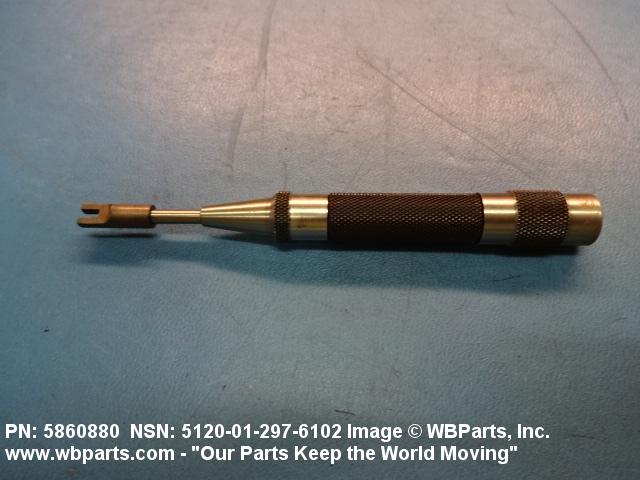

Drawings & Photos | NSN 5120-01-297-6102
Demand History | NSN 5120-01-297-6102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-297-6102 | 2024-08-233 | 43 | DIBBS |
| 5120-01-297-6102 | 2024-05-127 | 43 | DIBBS |
| 5120-01-297-6102 | 2022-06-166 | 57 | DIBBS |
| 5120-01-297-6102 | 2021-01-21 | 53 | DIBBS |
| 5120-01-297-6102 | 2020-05-134 | 54 | DIBBS |
| 5120-01-297-6102 | 2017-09-269 | 70 | United States |
| 5120-01-297-6102 | 2017-09-260 | 70 | DIBBS |
| 5120-01-297-6102 | 2013-04-111 | 59 | DIBBS |
| 5120-01-297-6102 | 2012-12-359 | 4 | DIBBS |
| 5120-01-297-6102 | 2012-12-344 | 4 | DIBBS |
| 5120-01-297-6102 | 2012-10-279 | 5 | DIBBS |
| 5120-01-297-6102 | 2012-09-264 | 5 | DIBBS |
| 5120-01-297-6102 | 2012-02-46 | 8 | DIBBS |
Cross Reference | NSN 5120-01-297-6102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5860880 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-297-6102
Related Products | NSN 5120-01-297-6102
Technical Data | NSN 5120-01-297-6102
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | AEGIS AEL REPROVISIONING EQUIPMENT |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 5860880 |
Restrictions/Controls & Freight Information | NSN 5120-01-297-6102
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-297-6102
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
