NSN 5120-01-263-4527 PWA80237, 01-263-4527, 012634527
Product Details | MECHANICAL PULLER
5120-01-263-4527 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: PWA80237, 5120-01-263-4527, 01-263-4527, 5120012634527, 012634527
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 15 SEP 1987 | 01-263-4527 | 18913 ( PULLER, MECHANICAL ) |
Drawings & Photos | NSN 5120-01-263-4527
Cross Reference | NSN 5120-01-263-4527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA80237 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-263-4527
Technical Data | NSN 5120-01-263-4527
| Characteristic | Specifications |
|---|---|

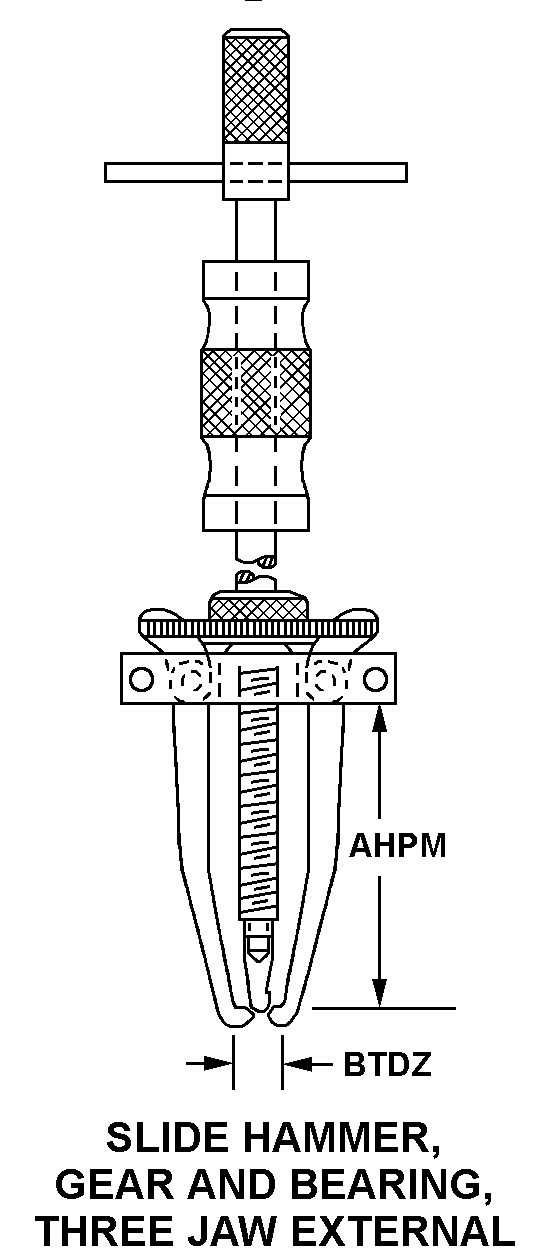

| STYLE DESIGNATOR | BA14 SLIDE HAMMER, GEAR AND BEARING THREE JAW EXTERNAL |
| SPECIAL FEATURES | SIZE 1.6 IN. X 1.6 IN. X 5.5 IN.;MATL STEEL; BLACK OXIDE FIN |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA80237 |
Restrictions/Controls & Freight Information | NSN 5120-01-263-4527
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-263-4527
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
