NSN 5120-01-245-7471 TL2612, 01-245-7471, 012457471
Product Details | MECHANICAL PULLER
5120-01-245-7471 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: TL2612, 5120-01-245-7471, 01-245-7471, 5120012457471, 012457471
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 03 DEC 1986 | 01-245-7471 | 18913 ( PULLER, MECHANICAL ) |
Drawings & Photos | NSN 5120-01-245-7471
Cross Reference | NSN 5120-01-245-7471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TL2612 | 24235 | WILLIAMS INTERNATIONAL CO., L.L.C. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-245-7471
Related Products | NSN 5120-01-245-7471
Technical Data | NSN 5120-01-245-7471
| Characteristic | Specifications |
|---|---|

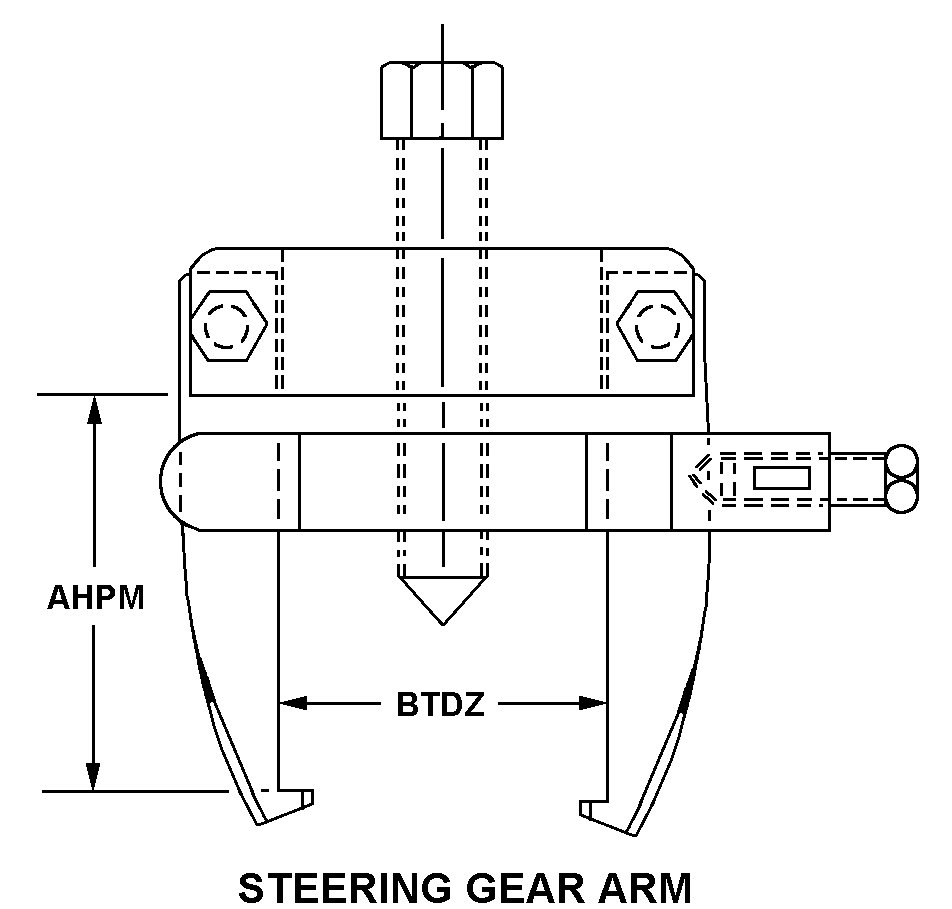

| STYLE DESIGNATOR | BA16 STEERING GEAR ARM |
| REACH LENGTH | 1.500 INCHES NOMINAL |
| SPREAD RANGE | 1.500 INCHES NOMINAL |
| SPECIAL FEATURES | 8.0 IN.HIGH,2.125 IN. DIA,MATL PLAIN CARBON STEEL; BLACK OXIDE FINISH; U/O E/I F112 ENGINE |
| MANUFACTURERS CODE | 24235 |
| DESIGN CONTROL REFERENCE | TL2612 |
Restrictions/Controls & Freight Information | NSN 5120-01-245-7471
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-245-7471
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | E | 2257X3020:Missile Replacement Equip and Vate |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | NK | SX:F-112 ENGINE |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
