NSN 5120-01-146-7661 PWA55814, 01-146-7661, 011467661
Product Details | MECHANICAL PULLER
5120-01-146-7661 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: PWA55814, 5120-01-146-7661, 01-146-7661, 5120011467661, 011467661
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 04 FEB 1983 | 01-146-7661 | 18913 ( PULLER, MECHANICAL ) |

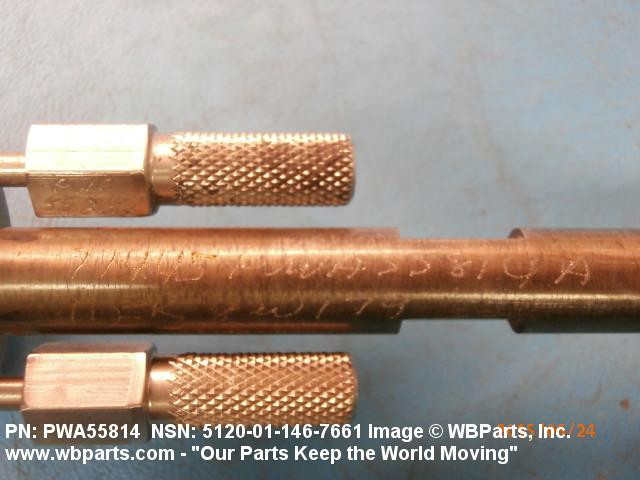

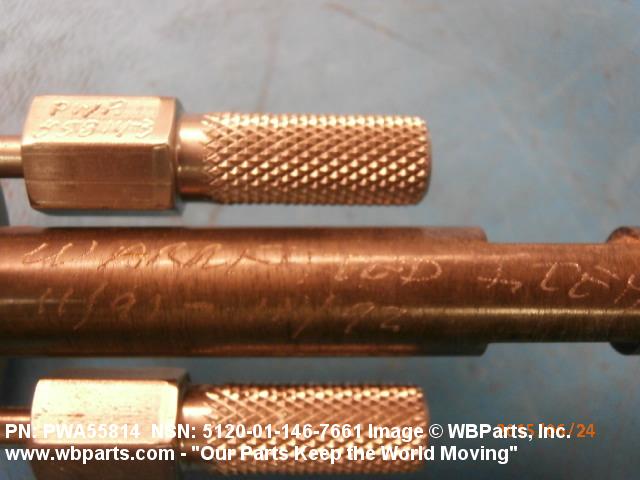

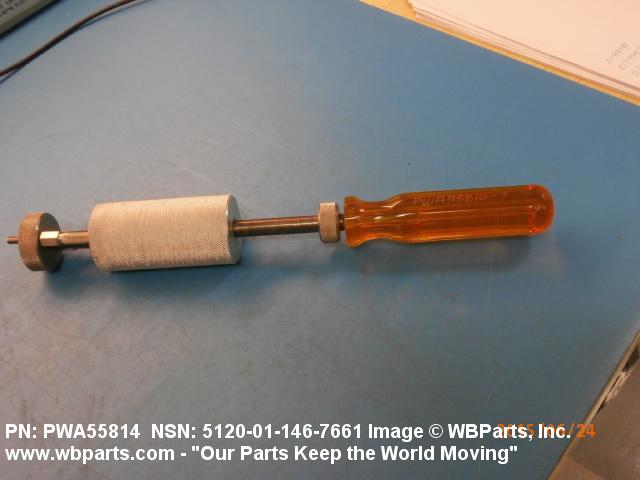

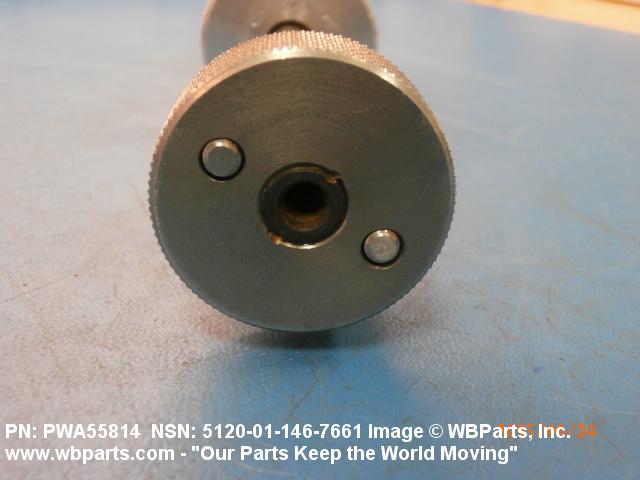

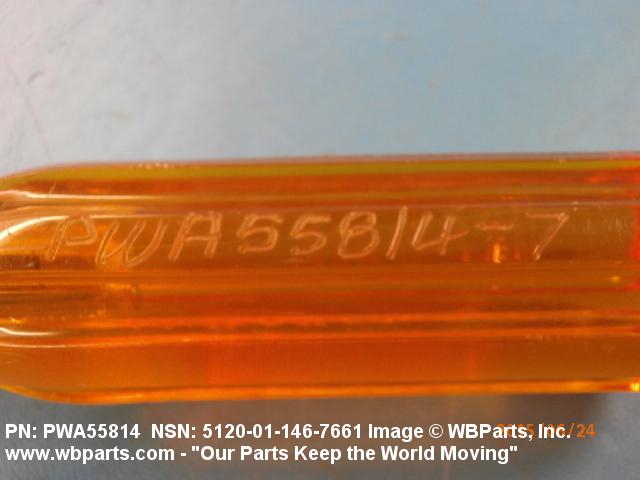

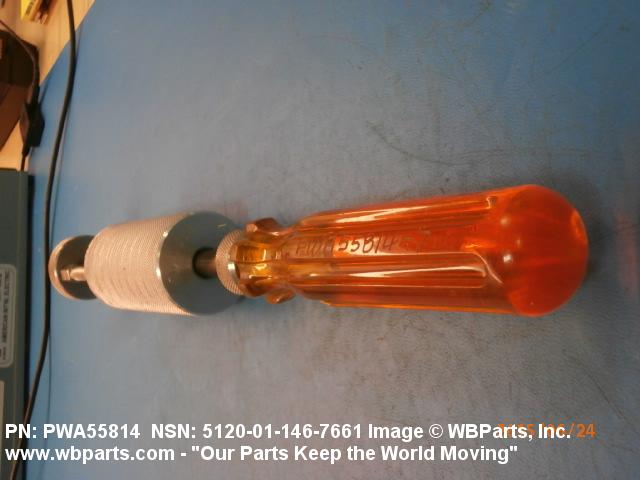

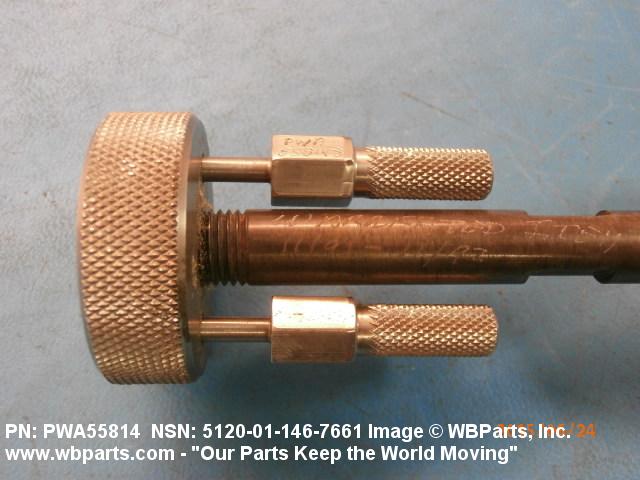

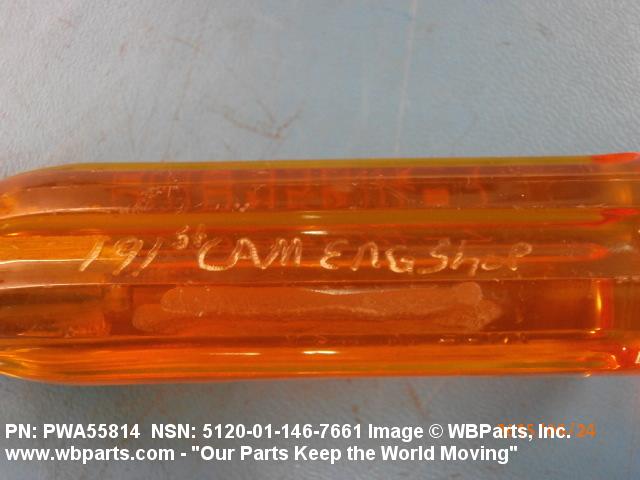

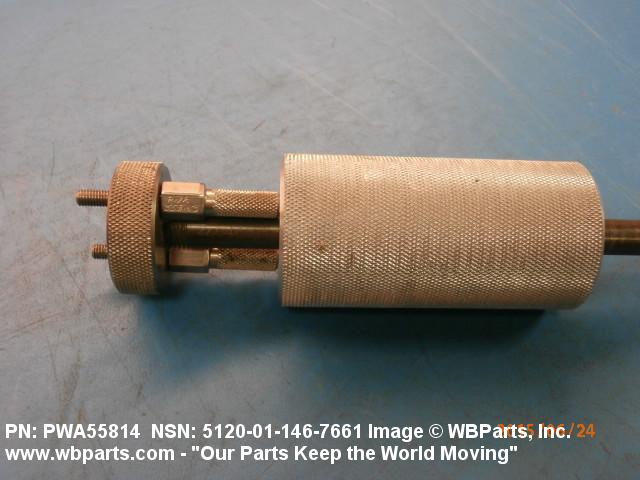

Drawings & Photos | NSN 5120-01-146-7661
Demand History | NSN 5120-01-146-7661
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-146-7661 | 2015-04-114 | 1 | Poland |
| 5120-01-146-7661 | 2015-03-89 | 1 | Poland |
| PWA55814 | 2013-04-99 | 1 | US |
| 5120-01-146-7661 | 2013-04-98 | 1 | Poland |
Cross Reference | NSN 5120-01-146-7661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA55814 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-146-7661
Related Products | NSN 5120-01-146-7661
Technical Data | NSN 5120-01-146-7661
| Characteristic | Specifications |
|---|---|
| III FUNCTIONAL DESCRIPTION | PULLER ATTACHED BY TWO SCREWS,SLIDE HAMMER ACTION IS USED TO REMOVE PROBE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA55814 |
Restrictions/Controls & Freight Information | NSN 5120-01-146-7661
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-146-7661
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
