NSN 5120-01-144-9201 RITBD186, RI-TBD-186, 01-144-9201
Product Details | SOCKET WRENCH CROWFOOT ATTACHMENT
5120-01-144-9201 A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH.
Part Alternates: RITBD186, RI-TBD-186, 5120-01-144-9201, 01-144-9201, 5120011449201, 011449201
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 30 DEC 1982 | 01-144-9201 | 17106 ( CROWFOOT ATTACHMENT, SOCKET WRENCH ) |
Drawings & Photos | NSN 5120-01-144-9201
Cross Reference | NSN 5120-01-144-9201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RI-TBD-186 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-144-9201
Technical Data | NSN 5120-01-144-9201
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE OVERALL |

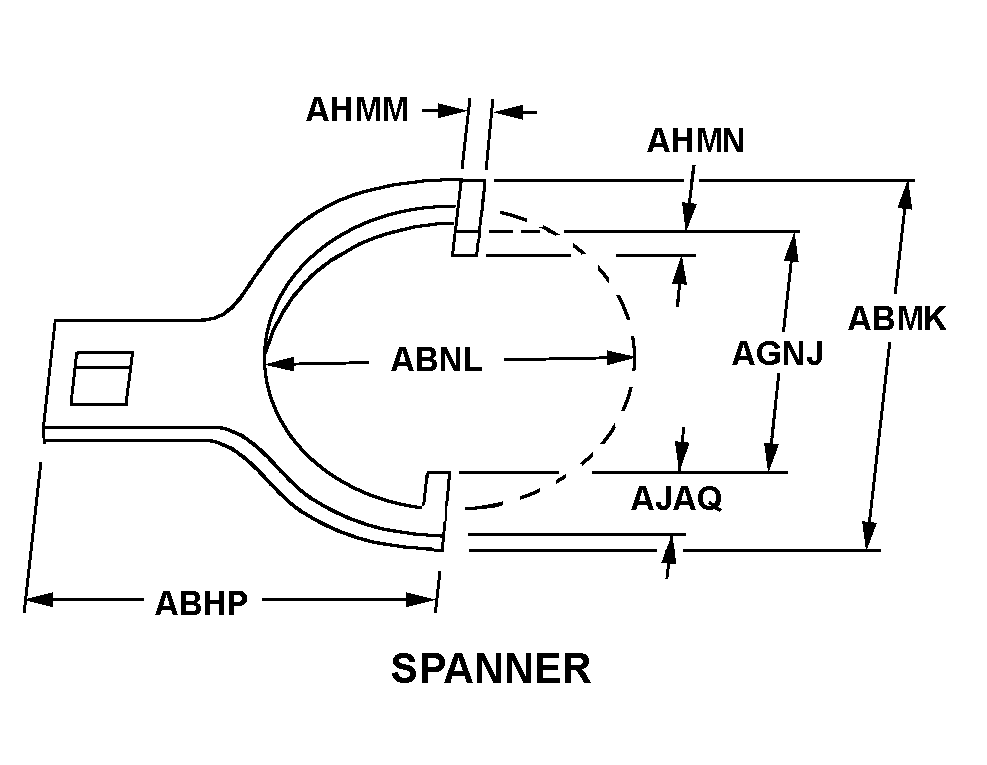

| STYLE DESIGNATOR | 57 SPANNER |
| OVERALL LENGTH | 20.000 INCHES NOMINAL |
| OVERALL WIDTH | 11.500 INCHES NOMINAL |
| OPENING DIAMETER | 10.750 INCHES NOMINAL |
| LUG WIDTH | 0.510 INCHES NOMINAL |
| LUG THICKNESS | 0.190 INCHES NOMINAL |
| LUG LENGTH | 0.188 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | B-1B,SUPPORT EQUIPMENT |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | RI-TBD-186 |
Restrictions/Controls & Freight Information | NSN 5120-01-144-9201
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
