NSN 5120-01-144-7459 5499802, 01-144-7459, 011447459
Product Details | FACE SPANNER WRENCH SOCKET
5120-01-144-7459 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Part Alternates: 5499802, 5120-01-144-7459, 01-144-7459, 5120011447459, 011447459
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 29 DEC 1982 | 01-144-7459 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

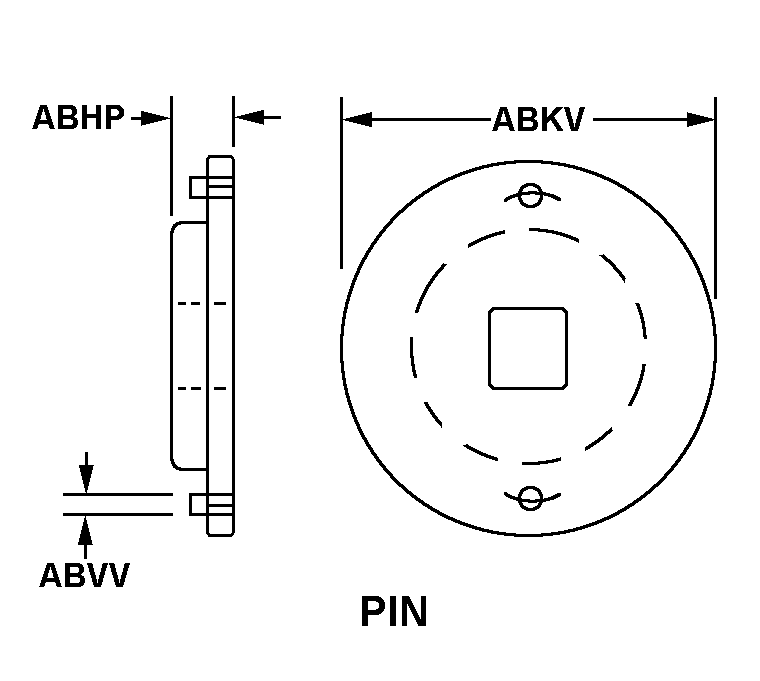

Drawings & Photos | NSN 5120-01-144-7459
Cross Reference | NSN 5120-01-144-7459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5499802 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-144-7459
Related Products | NSN 5120-01-144-7459
Technical Data | NSN 5120-01-144-7459
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 180 PIN |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| PIN DIAMETER | 0.218 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
| DRIVE SURFACE SIZE | 0.515 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-01-144-7459
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-144-7459
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
