NSN 5120-01-141-0054 2962341, 296234-1, 01-141-0054
Product Details | SOCKET WRENCH SOCKET
5120-01-141-0054 An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: 2962341, 296234-1, 5120-01-141-0054, 01-141-0054, 5120011410054, 011410054
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 OCT 1982 | 01-141-0054 | 03518 ( SOCKET, SOCKET WRENCH ) |
Drawings & Photos | NSN 5120-01-141-0054
Cross Reference | NSN 5120-01-141-0054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 296234-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-141-0054
Technical Data | NSN 5120-01-141-0054
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

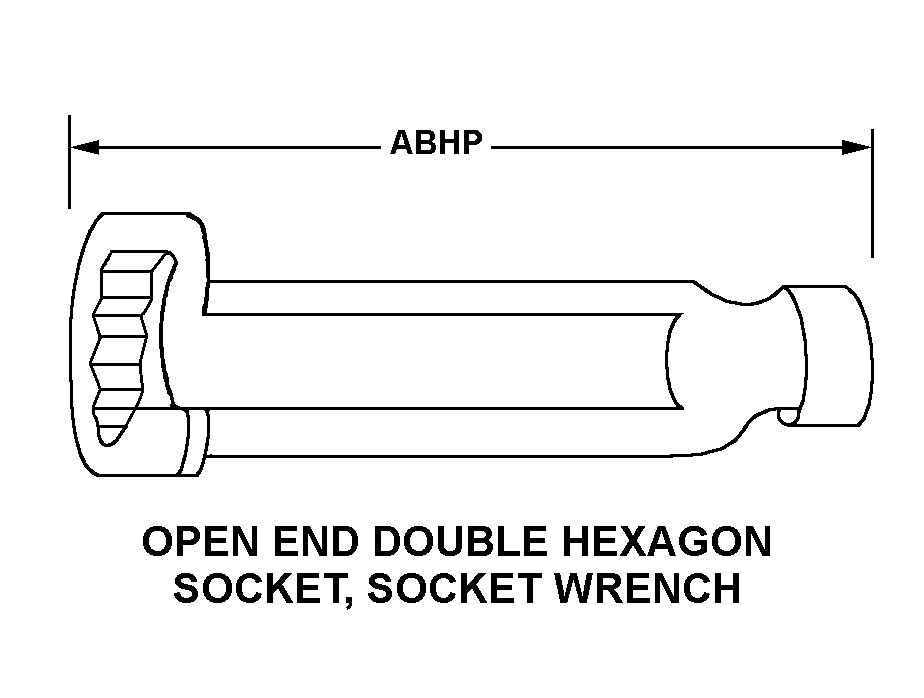

| STYLE DESIGNATOR | 173 OPEN END DOUBLE HEXAGON SOCKET, SOCKET WRENCH |
| OVERALL LENGTH | 3.040 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.587 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 12 POINT SINGLE END EXTERNAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | HEXAGON SINGLE END EXTERNAL |
| TORQUE CAPACITY | 200.0 INCH-POUNDS MINIMUM AND 225.0 INCH-POUNDS MAXIMUM |
| SPECIAL MARKINGS | 296234-1 |
| III END ITEM IDENTIFICATION | HU-25 COAST GUARD AIRCRAFT |
| III FSC APPLICATION DATA | STRUT MID-FRAME ASSEMBLY |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 296234-1 |
Restrictions/Controls & Freight Information | NSN 5120-01-141-0054
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-141-0054
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
