NSN 5120-01-036-9221 M22520/1-13, M22520113, M22520-1-13

Product Details | TERMINAL CRIMPING TOOL CONTACT POSITIONER

5120-01-036-9221 A device designed to regulate the positioning of the contact crimp barrel, the crimp depth, and the point of ratchet release in a tool which is designed to affix a terminal to an electrical wire.

Part Alternates: M22520/1-13, M22520113, M22520-1-13, MILC22520, MIL-C-22520, MIL-C-22520/1, MILC225201, TH285, VG95236T102, VG95236-T102, 2622 540 09265, 262254009265, 616408, 91631290, 5120-01-036-9221, 01-036-9221, 5120010369221, 010369221

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
51	09 MAR 1977	01-036-9221	27126 ( CONTACT POSITIONER, TERMINAL CRIMPING TOOL )

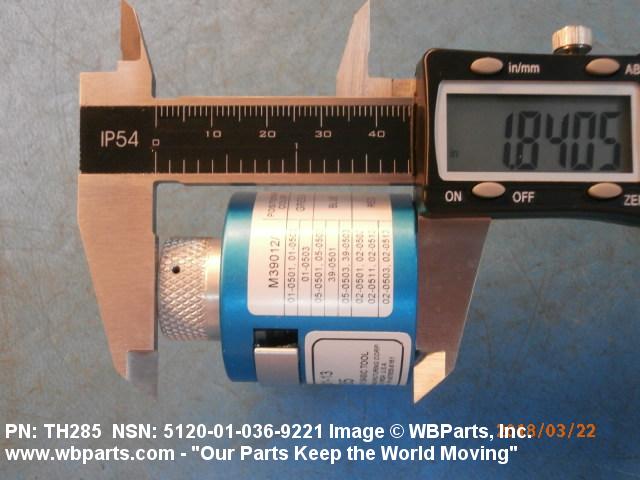

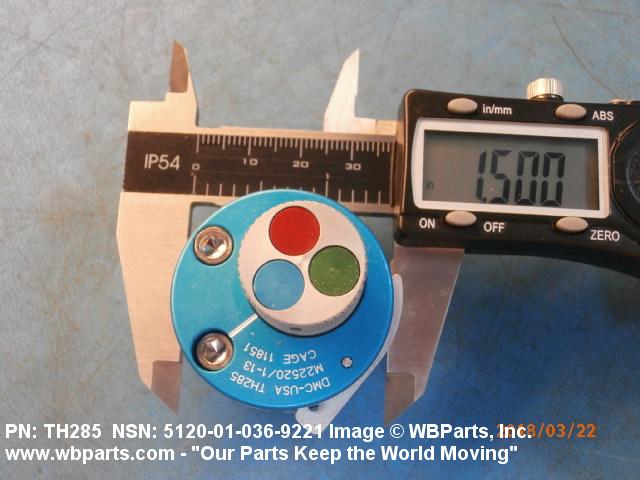

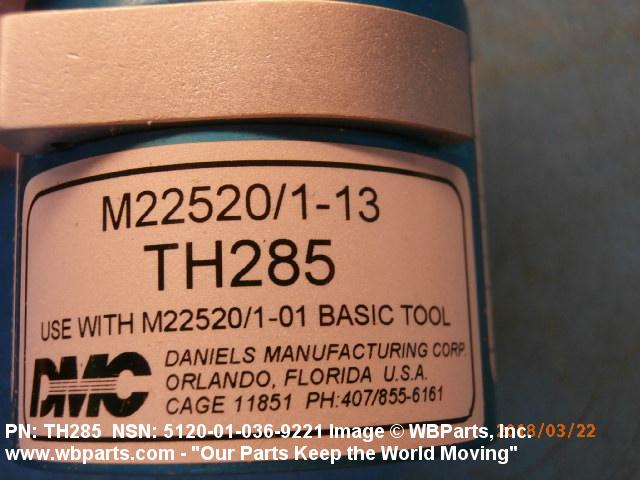

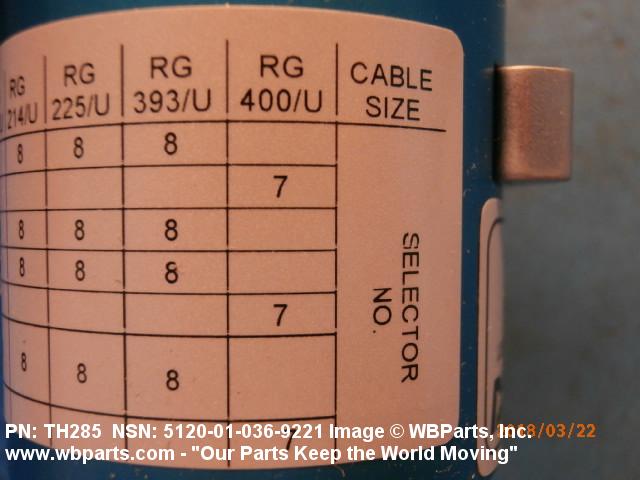

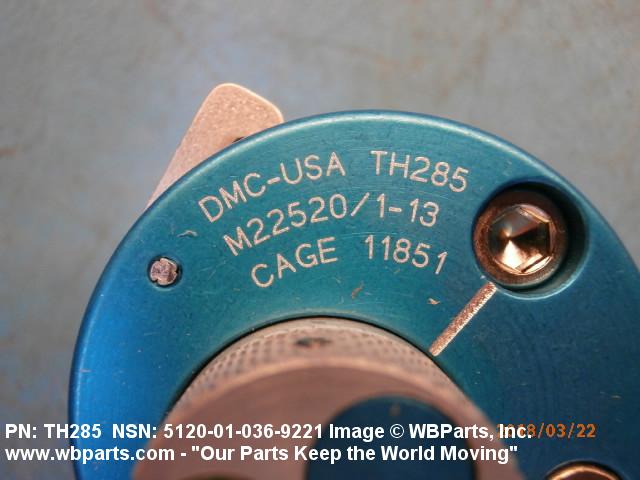

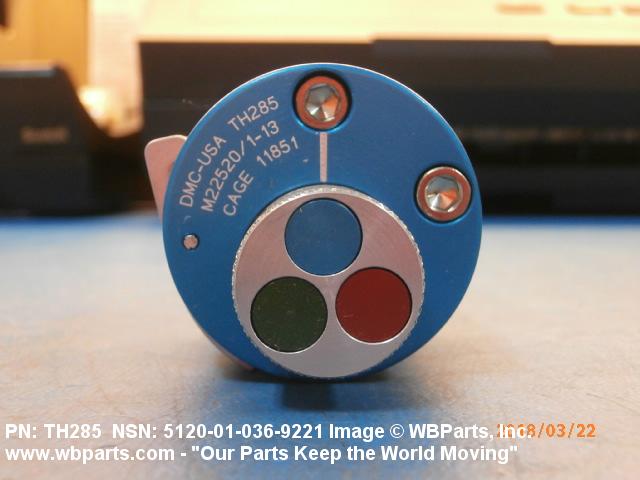

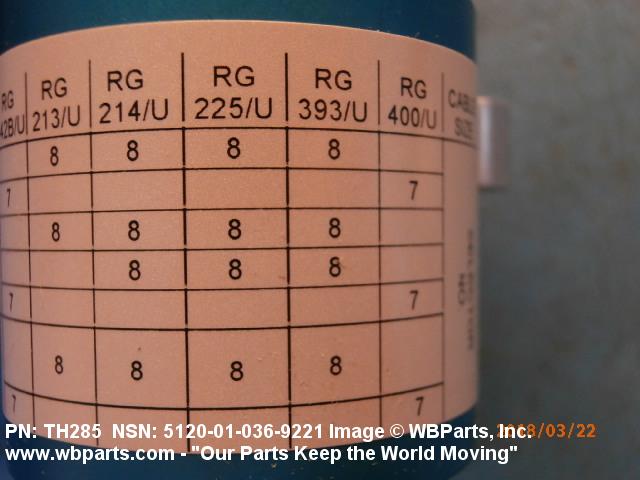

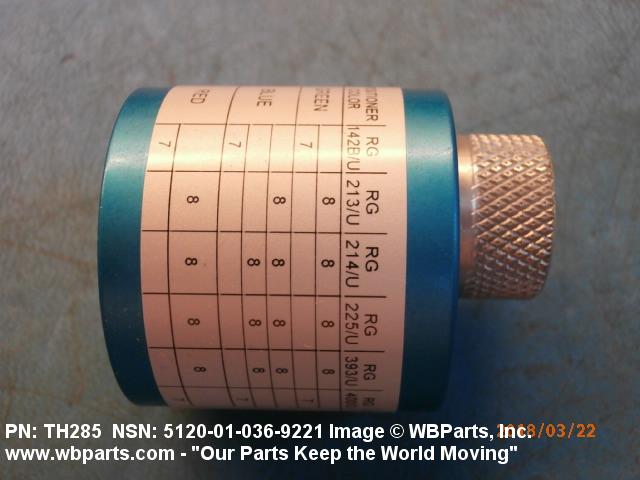

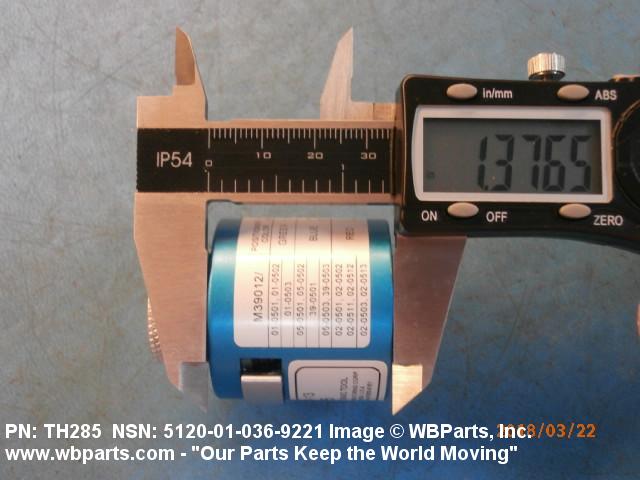

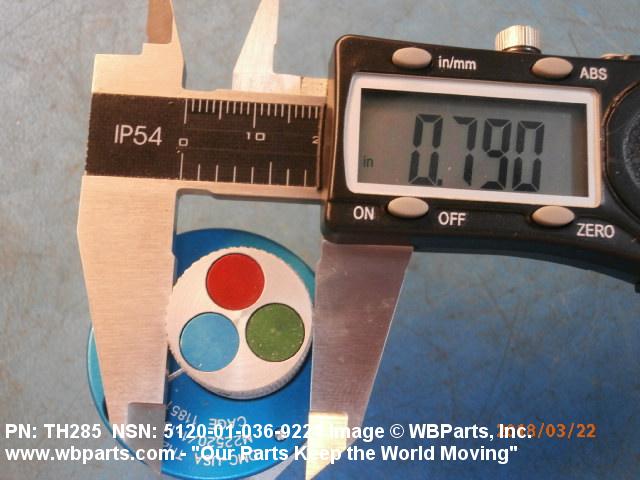

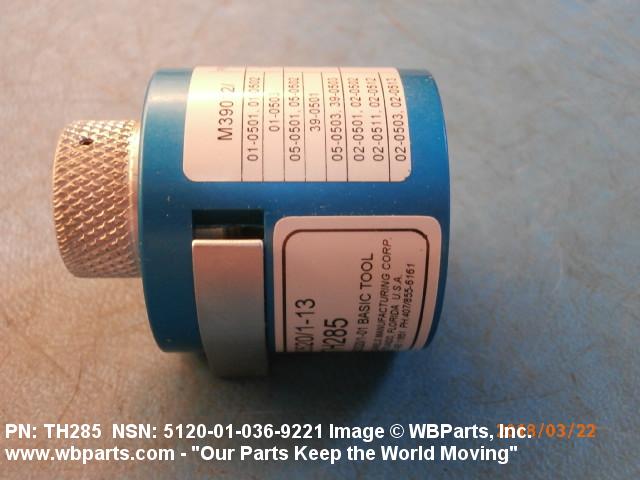

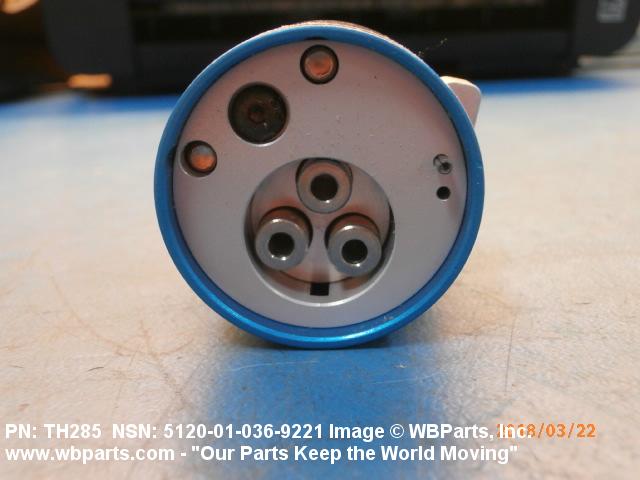

Drawings & Photos | NSN 5120-01-036-9221

Part Number	Request Date	QTY	Origin
5120-01-036-9221	2018-03-75	2	United States
5120-01-036-9221	2012-09-272	1	US
M22520113	2011-07-206	1	US
M22520113	2010-03-63	1	us

Cross Reference | NSN 5120-01-036-9221

Part Number	Cage Code	Manufacturer
2622 540 09265	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
616408	58164	ASTRO TOOL CORP.
91631290	F6481	THALES SA
M22520-1-13	F7391	OCETA
M22520/1-13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-22520	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-22520/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
TH285	11851	DANIELS MANUFACTURING CORPORATION
TH285	F7391	OCETA
VG95236-T102	D9477	BUNDESAMT FUER AUSRUESTUNG,

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-036-9221

Compare

Related Products | NSN 5120-01-036-9221

5120-01-036-9222, 5120-01-036-9223, 5120-01-036-9915, 5120-01-037-0150, 5120-01-037-0472

Technical Data | NSN 5120-01-036-9221

Characteristic	Specifications
TOOL TYPE FOR WHICH DESIGNED	HAND

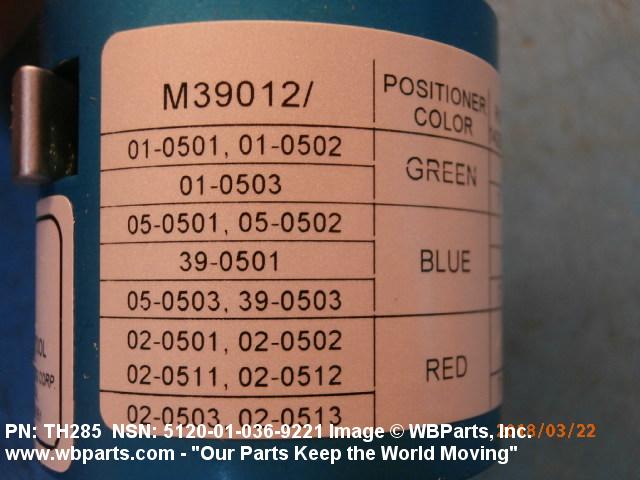

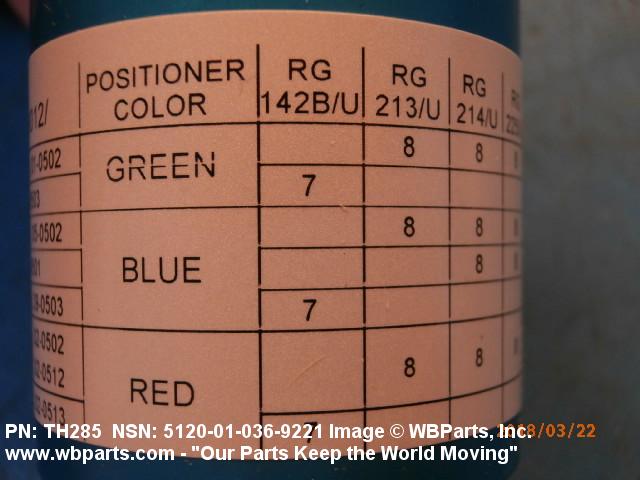

CONTACT SIZE FOR WHICH DESIGNED	M39012/01-501, M39012/01-502, M39012/01-503, M39012/05-501, M39012/05-0502, M39012/05-0503, M39012/39-0501, M39012/39-0503, M39012/02-0501, M39012/02-0502, M39012/02-0503, M39012/02-0511, M39012/02-0512, M39012/02-0513
