NSN 5120-00-991-1907 AA51123, A-A-51123, A-A-51123 TY4SZ1
Product Details | MULTIPOSITION VISE

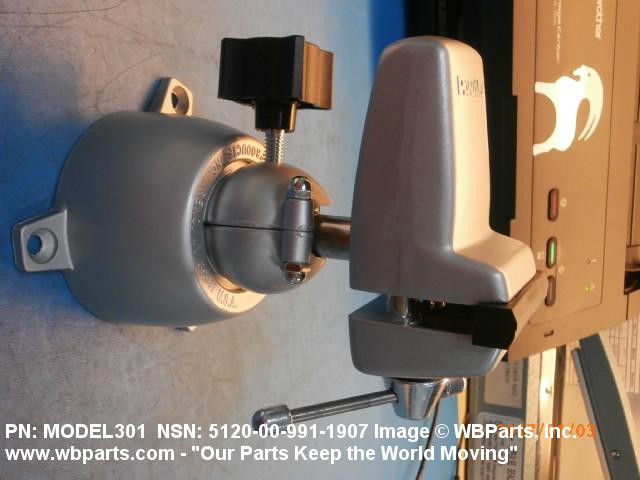

5120-00-991-1907 A clamping device consisting of a workholding head and a base provided with swiveling, tilting, and locking arrangement. Designed to be bolt mounted to a bench, table, or the like and constructed so that the workholding head can be swiveled 360 degrees (6.3 radians) in a horizontal plane and tilted from a normal level position downward at least 90 degrees (1.6 radians), and locked in any desired position within the swiveling and tilting ranges. Intended for use in manufacturing and maintenance of mechanical and electronic parts and assemblies or any light bench work. See also VISE, PATTERNMAKER'S.
Part Alternates: AA51123, A-A-51123, A-A-51123 TY4SZ1 , A-A-51123 TYPE 4SIZE 1, AA51123TY4SZ1, AA51123TYPE4SIZE1, GGGV410, GGG-V-410, GGG-V-410 TYPE 7, GGGV410TYPE7, 301, 62, 74907114B, 74-907114B, 5120-00-991-1907, 00-991-1907, 5120009911907, 009911907
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1960 | 00-991-1907 | 29351 ( VISE, MULTIPOSITION ) |

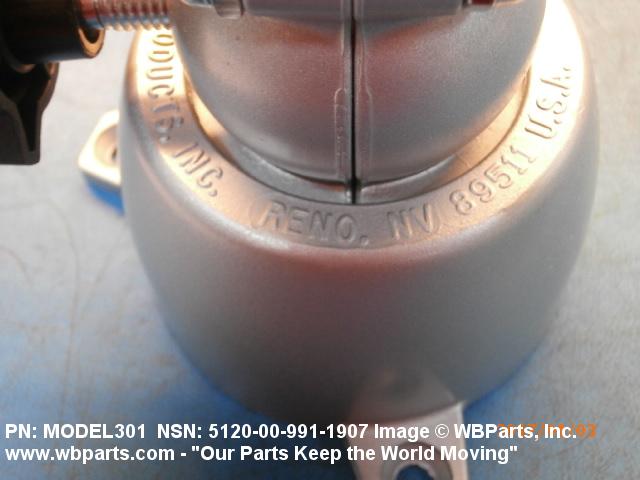

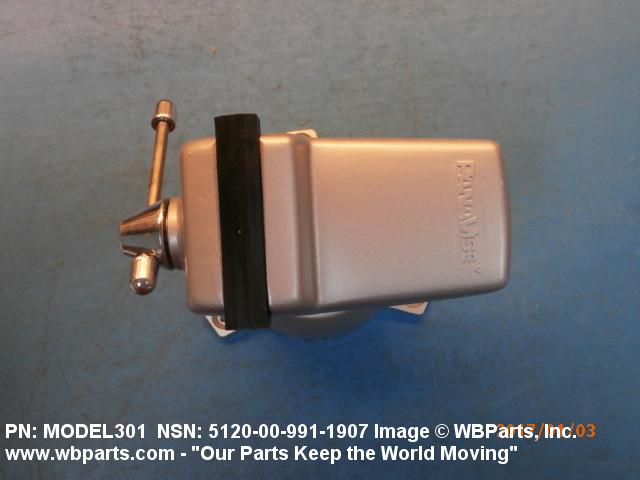

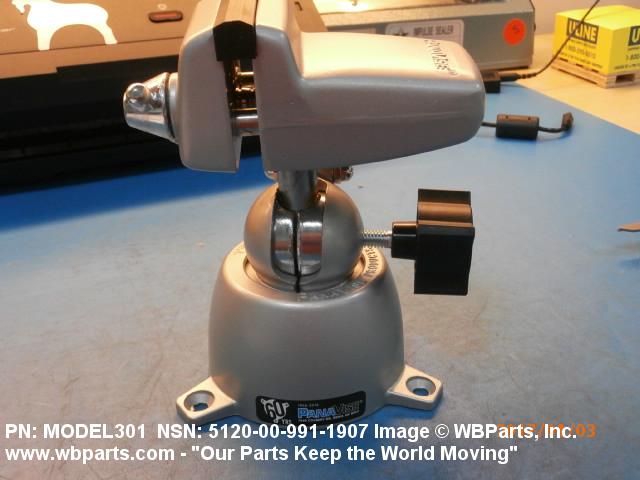

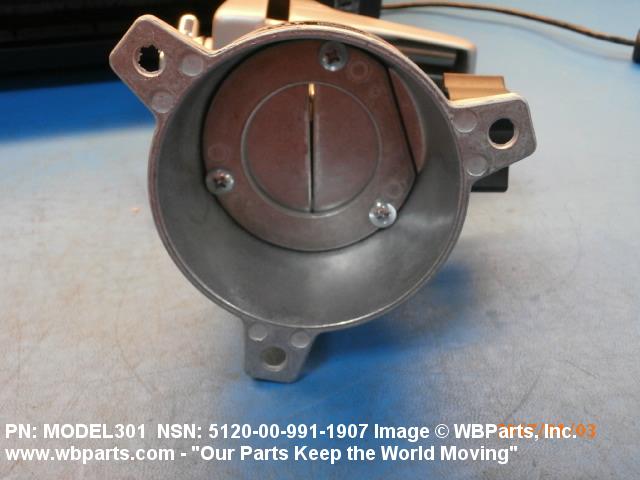

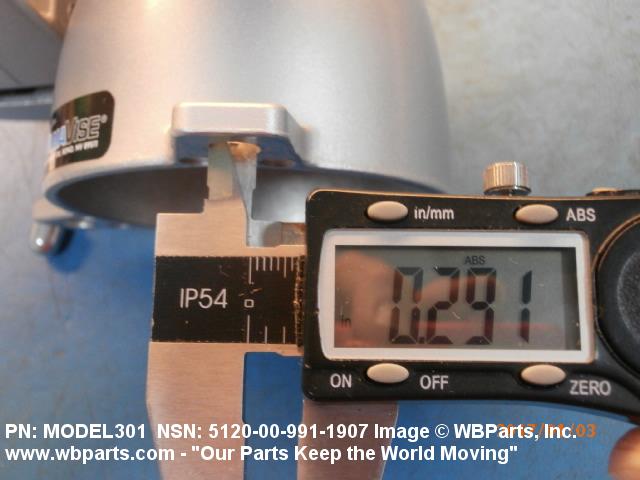

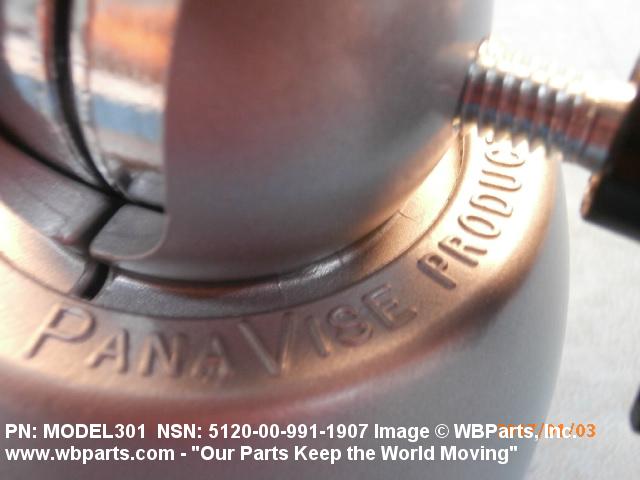

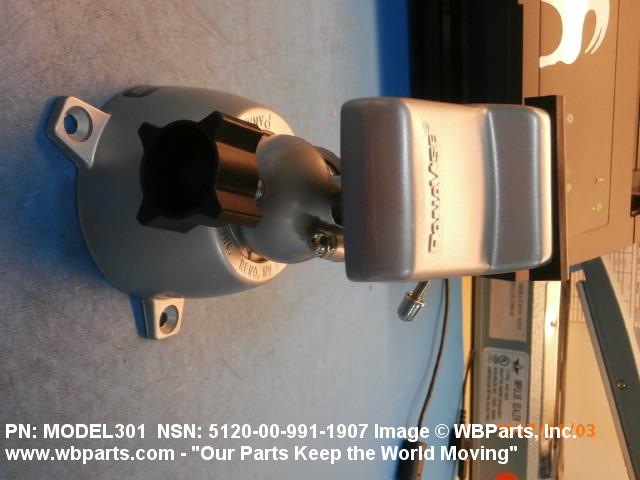

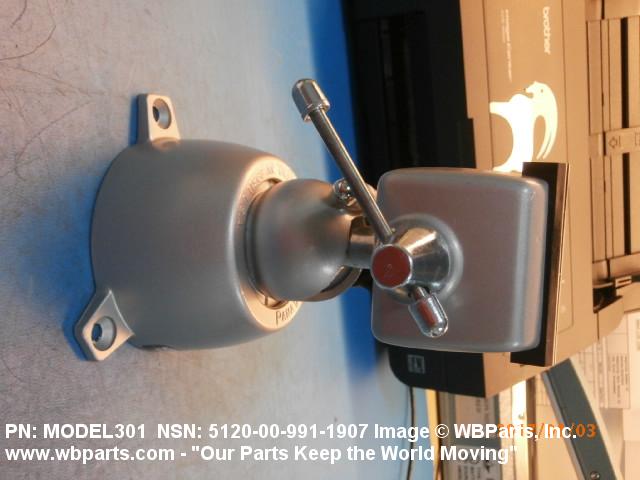

Drawings & Photos | NSN 5120-00-991-1907
Demand History | NSN 5120-00-991-1907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-991-1907 | 2024-11-324 | 1 | United States |
| 62 | 2020-12-337 | 1 | United States |
| 5120-00-991-1907 | 2016-12-355 | 1 | United States |
| 62 | 2015-08-224 | 2 | |
| 301 | 2012-07-204 | 1 | United States |
| 301 | 2011-12-335 | 25 | |
| 301 | 2011-10-278 | 4 | US |
| 5120-00-991-1907 | 2011-10-278 | 4 | MANUAL |
| 301 | 2011-05-138 | 1 | AE |
Cross Reference | NSN 5120-00-991-1907
| Part Number | Cage Code | Manufacturer |
|---|---|---|

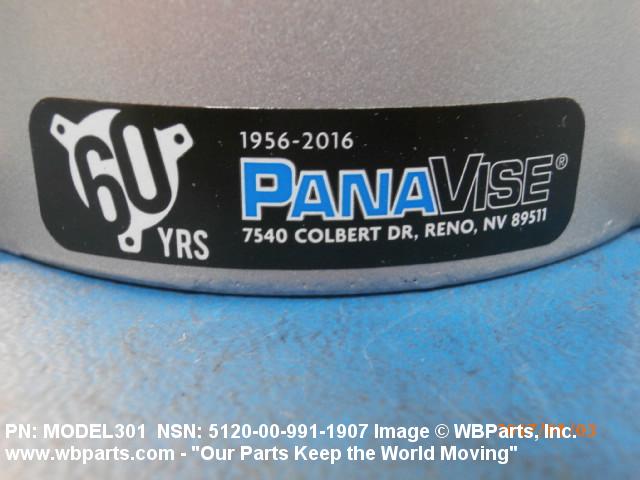

| 301 | 60476 | PANAVISE PRODUCTS INC |
| 301 | F1263 | EURACIER DIVISION EURO SGOS |
| 301 | U1144 | GREENWOOD ELECTRONIC COMPONENTS LIMITED |
| 5120-00-991-1907 | 64067 | SOURCEAMERICA |
| 62 | 08292 | EASCO HAND TOOLS INC DIV DANAHER TOOL GROUP EASCO HAND |
| 62 | 636D0 | APEX TOOL GROUP, LLC |
| 74-907114B | U2772 | RS COMPONENTS |
| A-A-51123 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-51123 TY4SZ1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| GGG-V-410 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-V-410 TYPE 7 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-991-1907
Related Products | NSN 5120-00-991-1907
Technical Data | NSN 5120-00-991-1907
| Characteristic | Specifications |
|---|---|

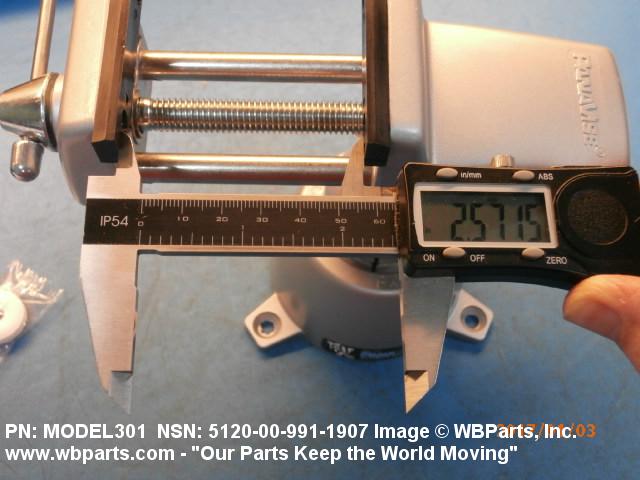

| JAW NOMINAL OPENING | 2.250 INCHES |
| HYDRAULICALLY OPERATED FEATURE | NOT PROVIDED |
| BASE TYPE | SWIVEL |
| SWIVEL BACK JAW | NOT PROVIDED |
| ANVIL BACK FEATURE | NOT PROVIDED |
| JAW FACE REMOVABILITY | REMOVABLE OR NONREMOVABLE |

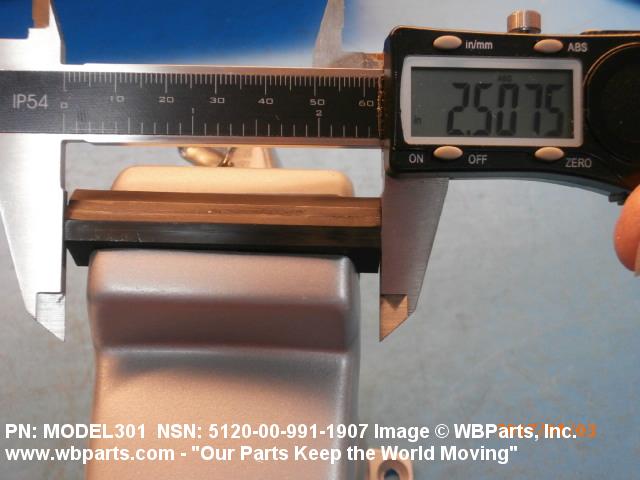

| SPECIAL FEATURES | JAW NOMINAL WIDTH 2.500IN. MININUM AND 3.000IN. MAXIMUM |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-51123 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-51123 TYPE 4SIZE 1 |
Restrictions/Controls & Freight Information | NSN 5120-00-991-1907
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186750 | TOOLS:VISES/ANVILS VISES COMB I/S |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-991-1907
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
