NSN 5120-00-980-4070 1820151001, 182-0151-001, 2551325
Product Details | TORQUE WRENCH
5120-00-980-4070 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: 1820151001, 182-0151-001, 2551325, 5120-00-980-4070, 00-980-4070, 5120009804070, 009804070
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-980-4070 | 17611 ( WRENCH, TORQUE ) |
Drawings & Photos | NSN 5120-00-980-4070
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-980-4070
Technical Data | NSN 5120-00-980-4070
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

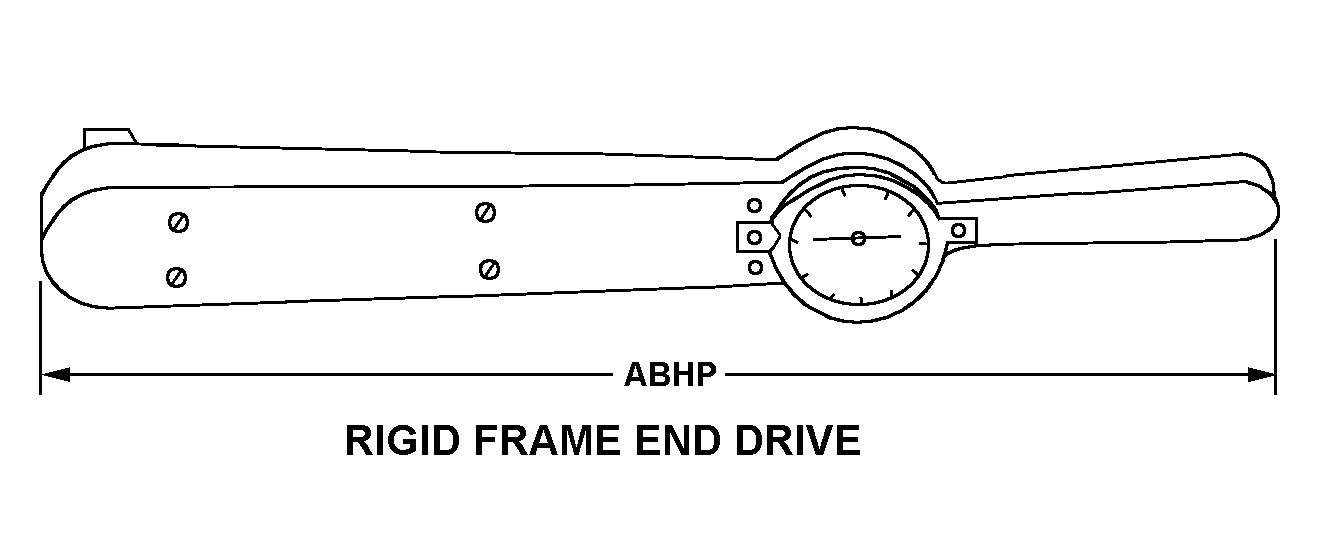

| STYLE DESIGNATOR | 851 RIGID FRAME END DRIVE |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| TORQUE CAPACITY | 15.0 INCH-POUNDS NOMINAL |
| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SIGNAL METHOD | DIAL INDICATOR |
| TORQUE SCALE GRADUATION | 0.50 INCH-POUNDS |
| MANUFACTURERS CODE | 94756 |
| DESIGN CONTROL REFERENCE | 182-0151-001 |
Restrictions/Controls & Freight Information | NSN 5120-00-980-4070
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-980-4070
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
