NSN 5120-00-924-7734 6795597, 00-924-7734, 009247734
Product Details | FACE SPANNER WRENCH SOCKET
5120-00-924-7734 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Part Alternates: 6795597, 5120-00-924-7734, 00-924-7734, 5120009247734, 009247734
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 20 JAN 1966 | 00-924-7734 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

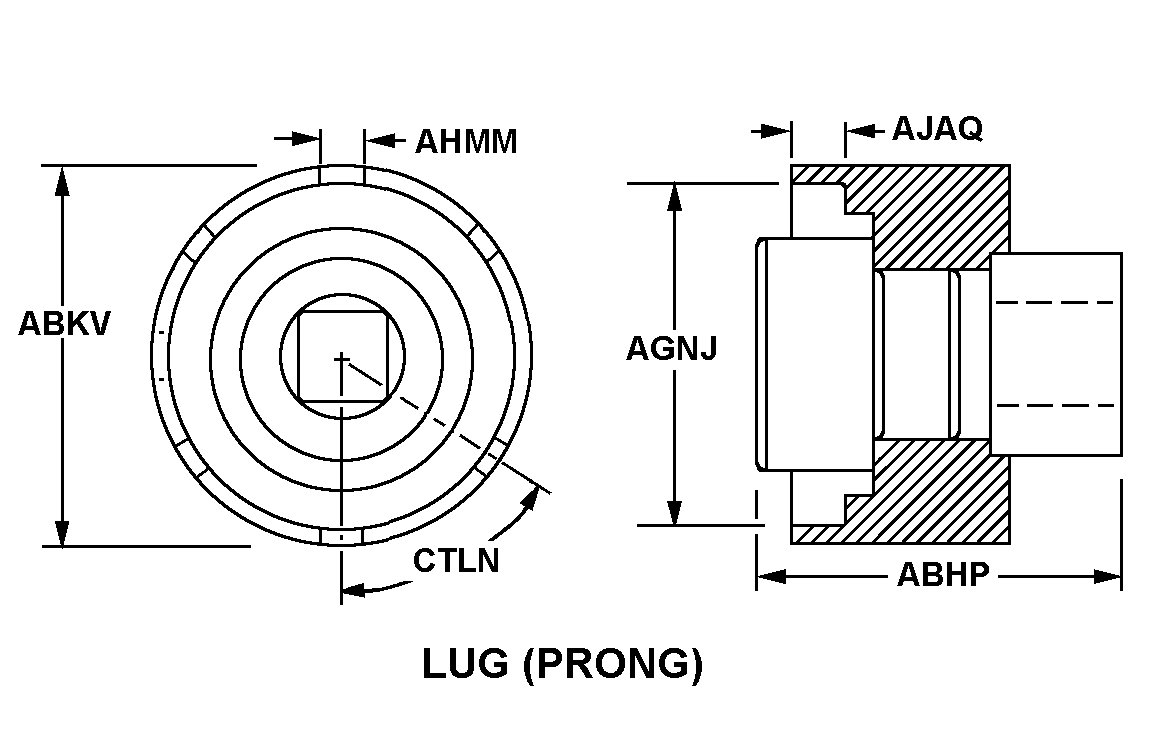

Drawings & Photos | NSN 5120-00-924-7734
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-924-7734
Related Products | NSN 5120-00-924-7734
Technical Data | NSN 5120-00-924-7734
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 AND STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 177 LUG |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OPENING DIAMETER | 1.470 INCHES NOMINAL |
| LUG WIDTH | 0.165 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
| LUG LENGTH | 0.130 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| DRIVE SURFACE SIZE | 0.378 INCHES MINIMUM AND 0.385 INCHES MAXIMUM SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6795597 |
Restrictions/Controls & Freight Information | NSN 5120-00-924-7734
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-924-7734
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BQ | T63-A-700 and T63-A-720 |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
