NSN 5120-00-903-7129 GGGH20, GGG-H-20, GGG-H-20 TY3CL2STA
Product Details | HAND HAMMER
5120-00-903-7129 A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified).
Part Alternates: GGGH20, GGG-H-20, GGG-H-20 TY3CL2STA, GGGH20TY3CL2STA, 5120-00-903-7129, 00-903-7129, 5120009037129, 009037129
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1960 | 00-903-7129 | 05970 ( HAMMER, HAND ) |
Drawings & Photos | NSN 5120-00-903-7129
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-903-7129
Technical Data | NSN 5120-00-903-7129
| Characteristic | Specifications |
|---|---|

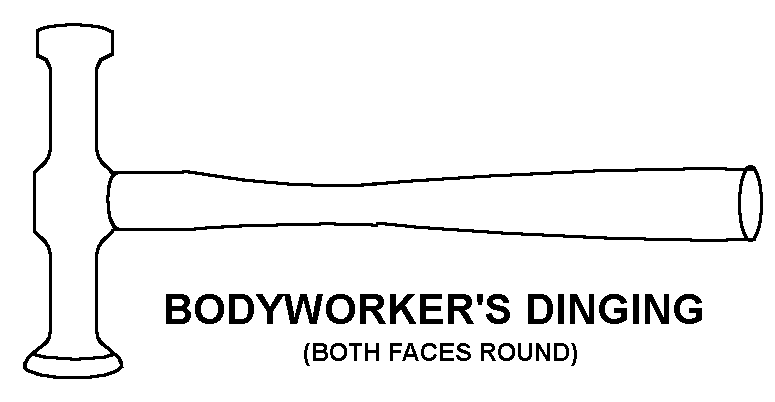

| STYLE DESIGNATOR | 39 BODYWORKER'S DINGING |
| HEAD WEIGHT | 12.000 OUNCES |
| HANDLE MATERIAL | GLASS FIBER |
| HEAD LENGTH | 6.000 INCHES NOMINAL |
| SPECIAL FEATURES | 1-5/8 IN. ROUND FLAT AND 1-1/4 IN. ROUND FLAT FACES |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2 CLASS AND A STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-H-20 |
Restrictions/Controls & Freight Information | NSN 5120-00-903-7129
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
