NSN 5120-00-888-5831 MS33781, AIC21210, AIC212-10

Product Details | SCREWDRIVER BIT

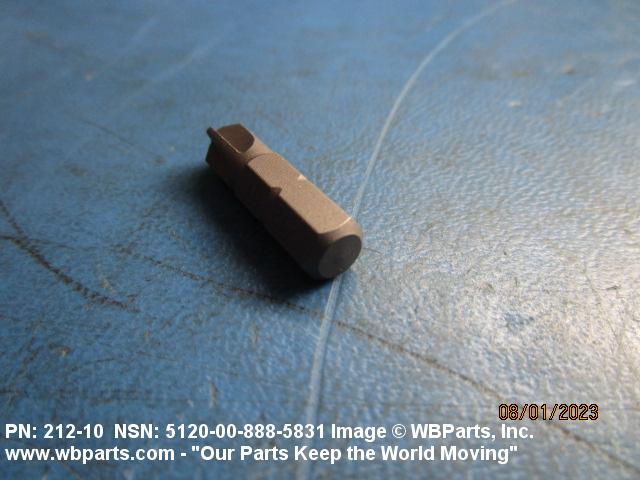

5120-00-888-5831 An item designed for use with a HOLDER, SCREWDRIVER BIT (as modified), part of a BIT SET, SCREWDRIVER, or a replacement part for a SOCKET WRENCH ATTACHMENT, SCREWDRIVER. It has a screwdriving tip at one or both ends. See also, SOCKET WRENCH ATTACHMENT, SCREWDRIVER.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven

Part Alternates: MS33781, AIC21210, AIC212-10, AT21210, AT212-10, EX21210, EX212-10, GGGB001222, GGG-B-001222, TS21210, TS212-10, 100XT10, 100-XT10 , 21210, 212-10, 35403, 771282016300 , 5120-00-888-5831, 00-888-5831, 5120008885831, 008885831

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
51	01 JAN 1962	00-888-5831	03503 ( BIT, SCREWDRIVER )

Drawings & Photos | NSN 5120-00-888-5831

Part Number	Request Date	QTY	Origin
5120-00-888-5831	2023-07-206	400	United States
5120-00-888-5831	2023-07-185	2000	US
5120-00-888-5831	2023-05-142	1	Korea
TS21210	2022-01-10	10	Korea
MS33781	2021-10-275	2	US
5120-00-888-5831	2021-09-251	50	us
5120-00-888-5831	2021-02-36	2	Malaysia
5120-00-888-5831	2020-10-303	60	United States
TS21210	2020-09-248	10	Malaysia
TS21210	2020-08-240	10	MY
5120-00-888-5831	2019-02-37	1	United States
5120-00-888-5831	2019-02-36	1	United States
100XT10	2019-01-17	3	US
100XT10	2018-10-289	3	US
GGG-B-001222	2018-07-192	38	United States
5120-00-888-5831	2018-06-164	6200	SG
100XT10	2018-06-160	7050	SG
5120-00-888-5831	2018-06-159	7050	Singapore
5120-00-888-5831	2018-03-61	3	US
100XT10	2018-02-59	108	MY
5120-00-888-5831	2017-08-236	2	US
100XT10	2017-07-205	60	Malaysia
5120-00-888-5831	2017-02-53	1080	MANUAL
MS33781	2014-08-234	2	US
21210	2014-05-145	1000	Taiwan
21210	2014-03-63	300	Taiwan
5120-00-888-5831	2013-02-43	1	MANUAL
TS21210	2012-10-299	1	United States
MS33781	2012-06-170	1	US
21210	2012-06-153	7	United States
5120-00-888-5831	2012-05-143	200	ES
AIC21210	2011-09-258	100	US
5120-00-888-5831	2010-09-263	10	US

Cross Reference | NSN 5120-00-888-5831

Part Number	Cage Code	Manufacturer
100-XT10	071U1	AMCO PRODUCTS, INC.
212-10	C1354	STENZEL GMBH
212-10	K2283	PROBOTEC LTD
212-10	U0416	POWELL DUFFRYN RAIL PROJECTS
35403	11195	MAGNA DIV VERMONT AMERICAN CORP
35403	FA5A7	AMDP
5120-00-888-5831	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
AIC212-10	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
AT212-10	9K380	AIR TUF PRODUCTS DIV OF AIR INDUSTRIES CORP
EX212-10	05755	PHILLIPS SCREW CO RULE INDUSTRIES DIV
EX212-10	73439	AMSCO PRODUCTS CAMCAR DIV
GGG-B-001222	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS33781	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
TS212-10	67179	ZEPHYR MANUFACTURING CO., INC.
TS212-10	H2876	HOIST INTERNATIONAL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-888-5831

Compare

Related Products | NSN 5120-00-888-5831

5120-00-888-5832, 5120-00-888-5833, 5120-00-888-5834, 5120-00-888-5844, 5120-00-888-5850

Technical Data | NSN 5120-00-888-5831

Characteristic	Specifications
POWER DRIVEN TOOL PROVISION	NOT PROVIDED

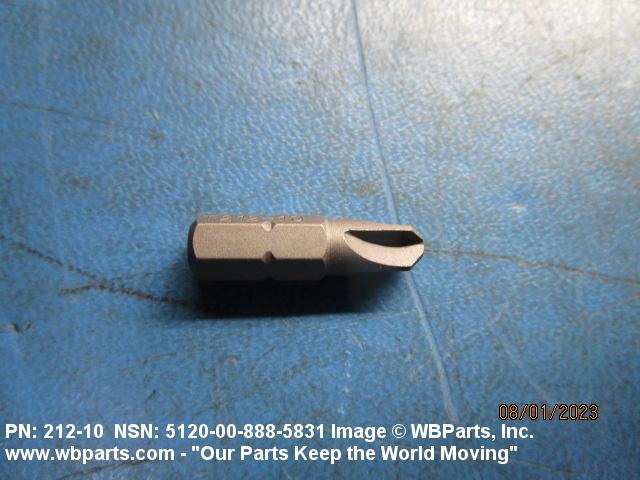

TIP TYPE	TORQUE SET CROSS
TIP SIZE DESIGNATION	10
FLARED SIDE	NOT INCLUDED
DRIVE SHANK TYPE	HEXAGON

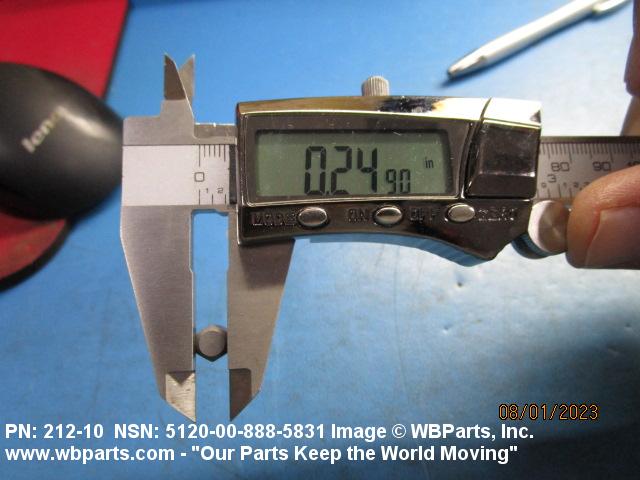

SHANK WIDTH ACROSS WRENCH FLATS	0.250 INCHES NOMINAL

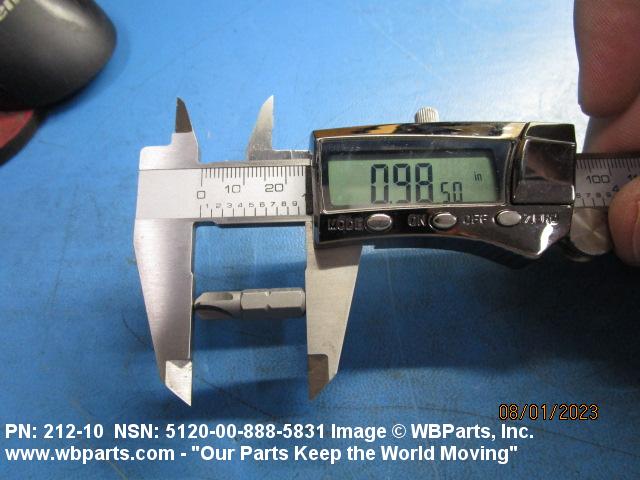

OVERALL LENGTH	1.000 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5120-00-888-5831

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	186620	TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	732	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5120-00-888-5831

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	0	GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration.
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each
