NSN 5120-00-775-9461 PWA13267, 00-775-9461, 007759461
Product Details | LEVELING-SUPPORT JACK
5120-00-775-9461 A device usually of single leg construction incorporating one of the various methods of jacking. The base end contacts the ground or floor, and the opposite end or upper portion has facilities for attaching to the item to be supported. It is used as an auxiliary support for leveling and/or preventing movement. Excludes JACK, LEVELING-SUPPORT GUIDED MISSILE ERECTOR-LAUNCHER; JACK, TRANSPORTABLE SHELTER; and SUPPORT, RETRACTABLE, SEMITRAILER. See also JACK (as modified).
Part Alternates: PWA13267, 5120-00-775-9461, 00-775-9461, 5120007759461, 007759461
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1962 | 00-775-9461 | 36602 ( JACK, LEVELING-SUPPORT ) |

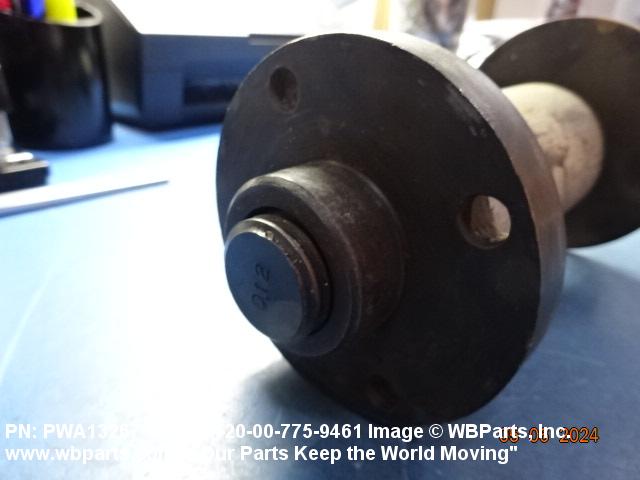

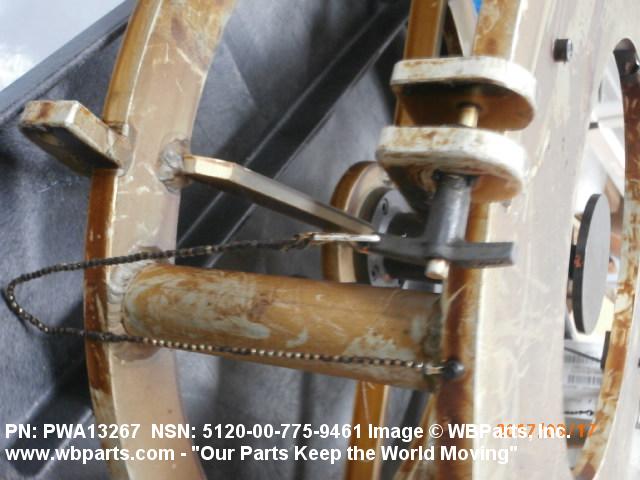

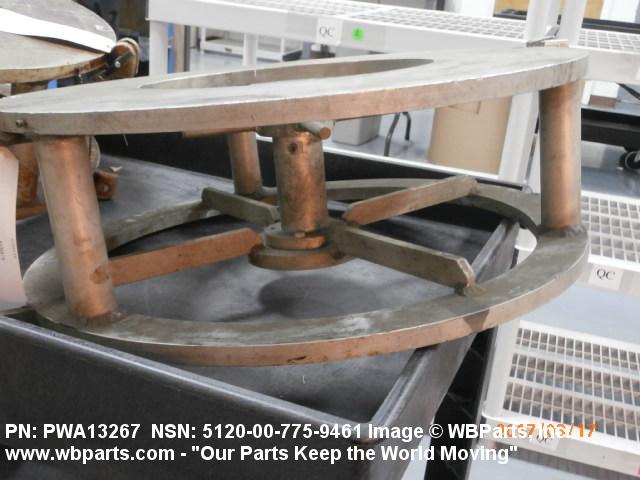

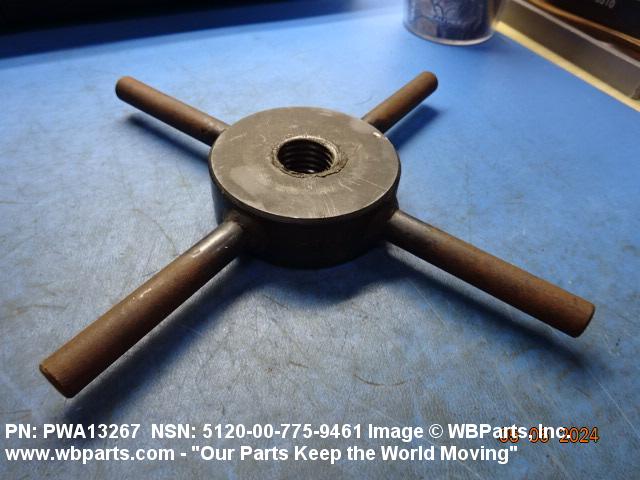

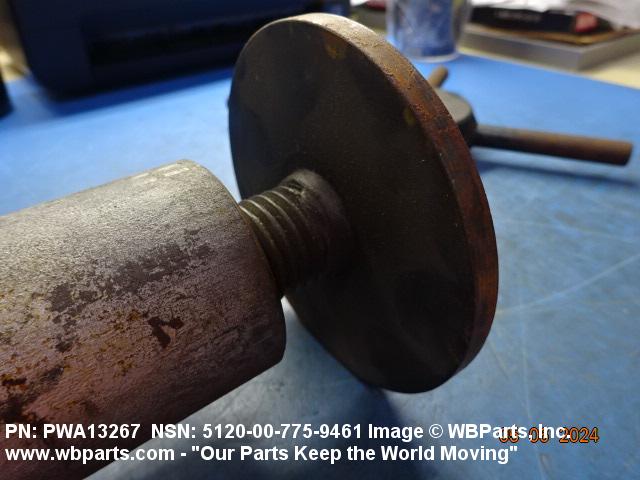

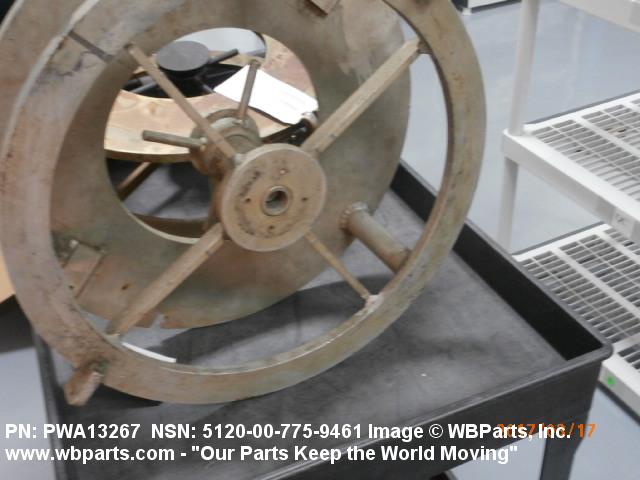

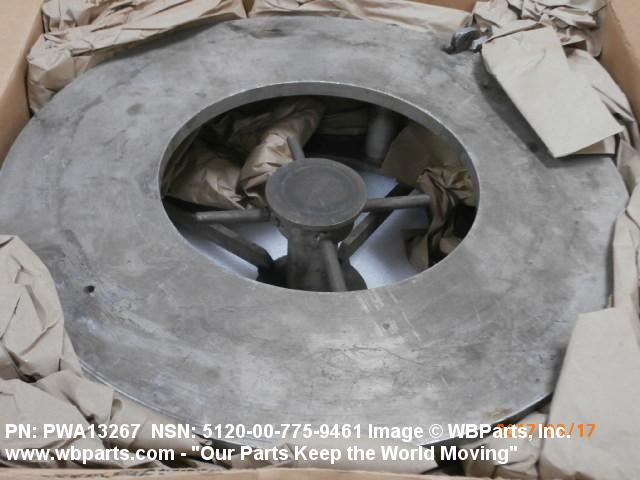

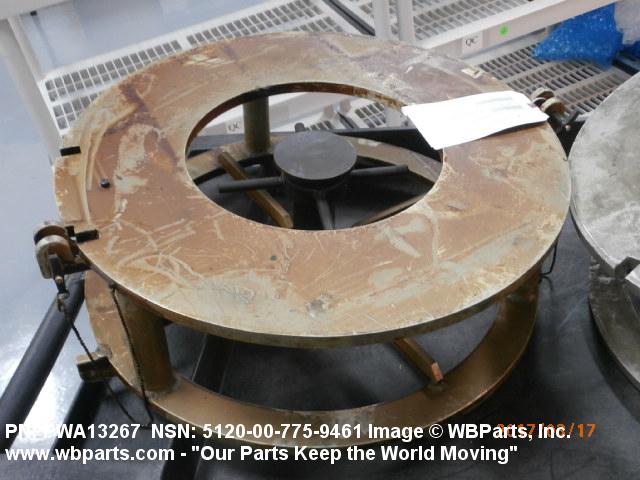

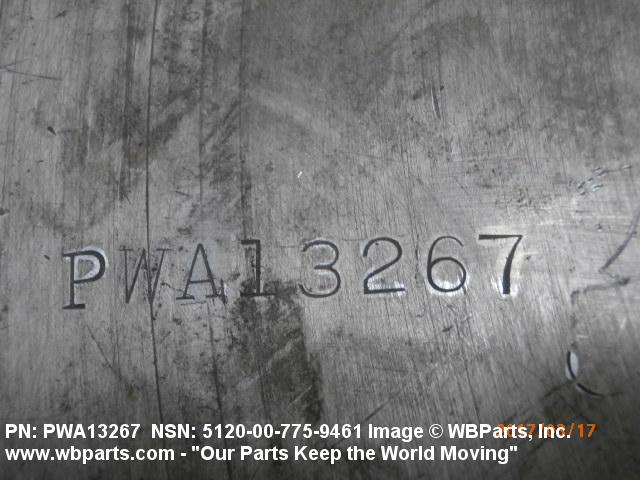

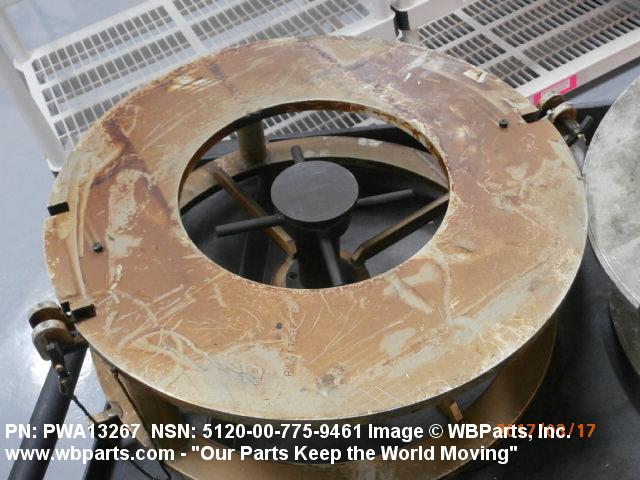

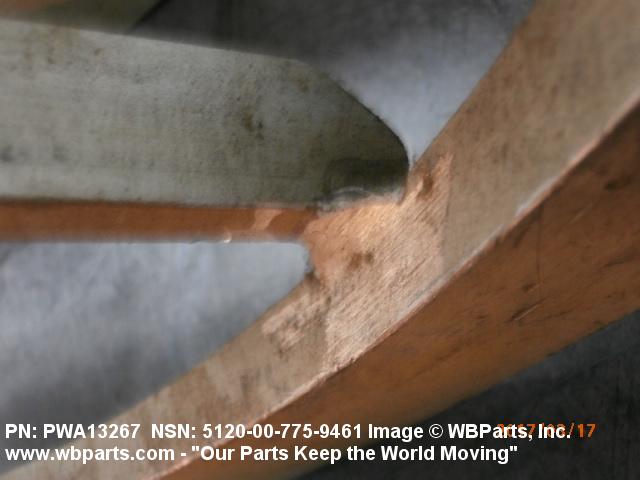

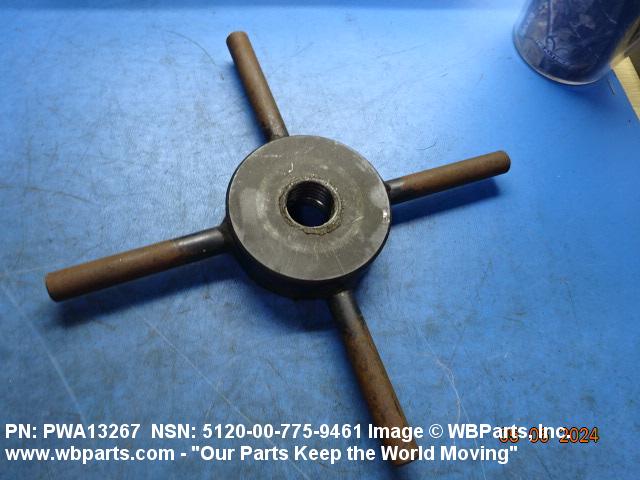

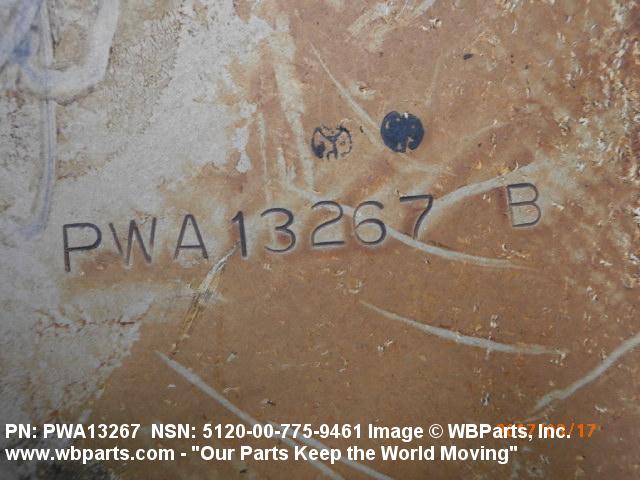

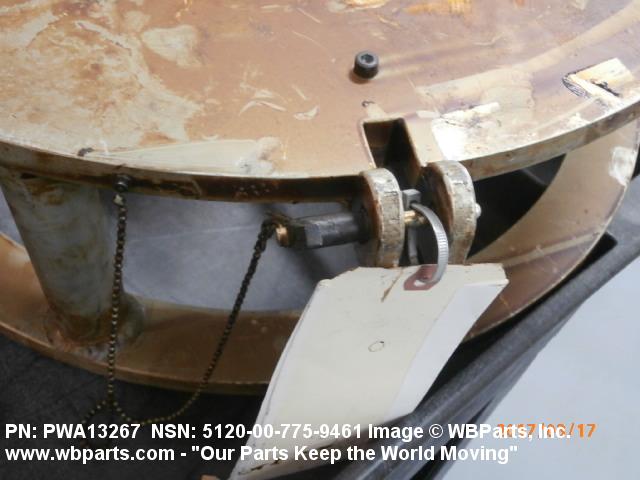

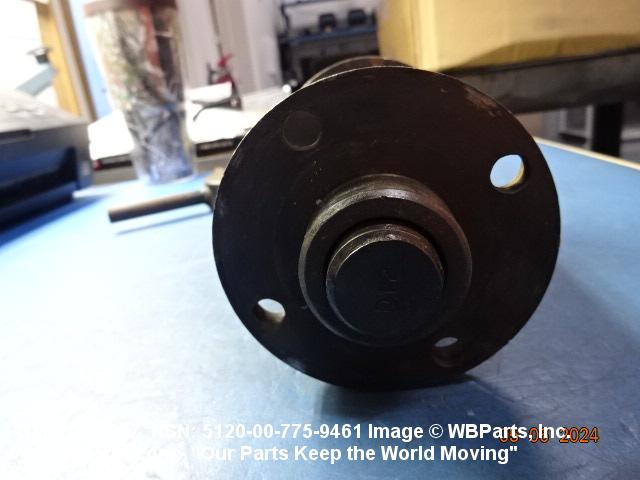

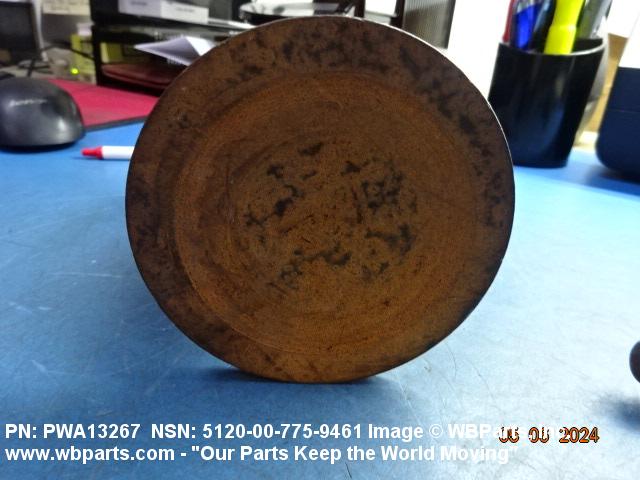

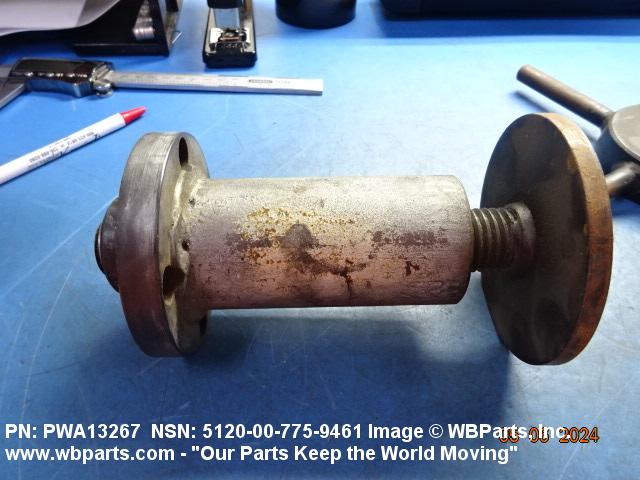

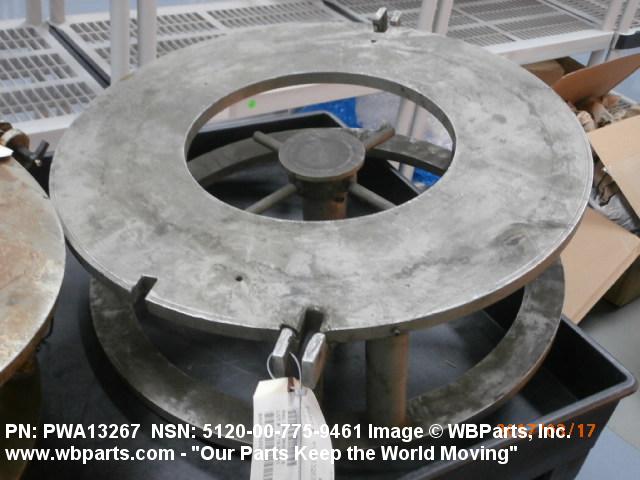

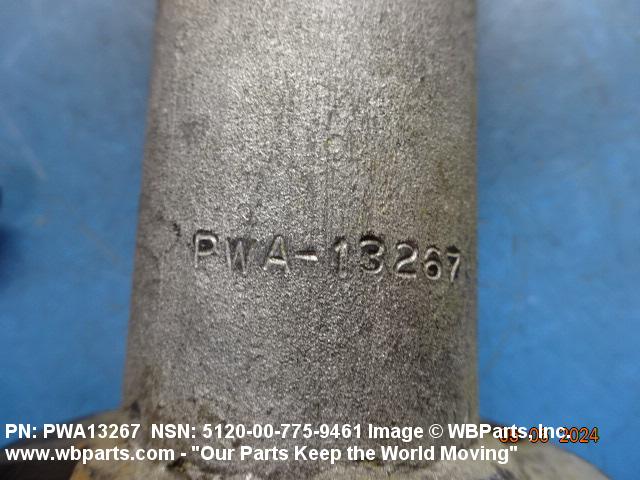

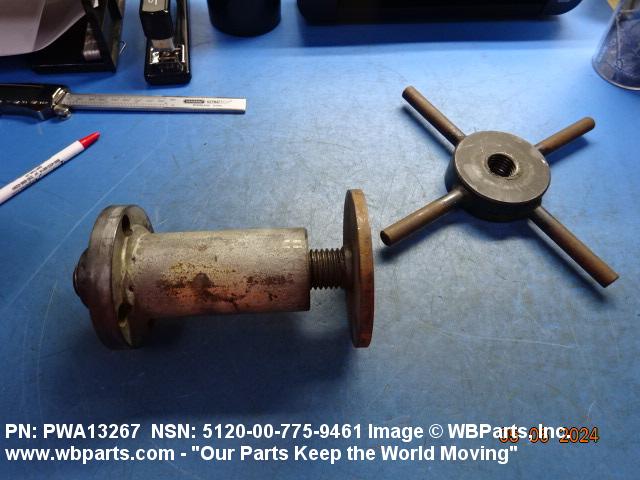

Drawings & Photos | NSN 5120-00-775-9461
Demand History | NSN 5120-00-775-9461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-775-9461 | 2024-03-66 | 1 | United States |
| PWA13267 | 2017-02-59 | 2 | United States |
| PWA13267 | 2017-01-26 | 2 | United States |
Cross Reference | NSN 5120-00-775-9461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA13267 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-775-9461
Related Products | NSN 5120-00-775-9461
Technical Data | NSN 5120-00-775-9461
| Characteristic | Specifications |
|---|---|
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | JACK,COMPRESSOR |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA13267 |
Restrictions/Controls & Freight Information | NSN 5120-00-775-9461
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 184970 | TOOLS:JACKS/JACKSCREWS NOI SUB2 |
| Less than car load rating | R | 65 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-775-9461
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | GN | JET ENGINES(J60) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
