NSN 5120-00-768-2485 54254TA, 5425-4TA, 9027407
Product Details | TORQUE WRENCH ADAPTER
5120-00-768-2485 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: 54254TA, 5425-4TA, 9027407, 5120-00-768-2485, 00-768-2485, 5120007682485, 007682485
Hand Tools | Hand Tools, Nonedged, Nonpowered
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 01 JAN 1962 | 00-768-2485 | 60023 ( ADAPTER, TORQUE WRENCH ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-768-2485
Related Products | NSN 5120-00-768-2485
Technical Data | NSN 5120-00-768-2485
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |

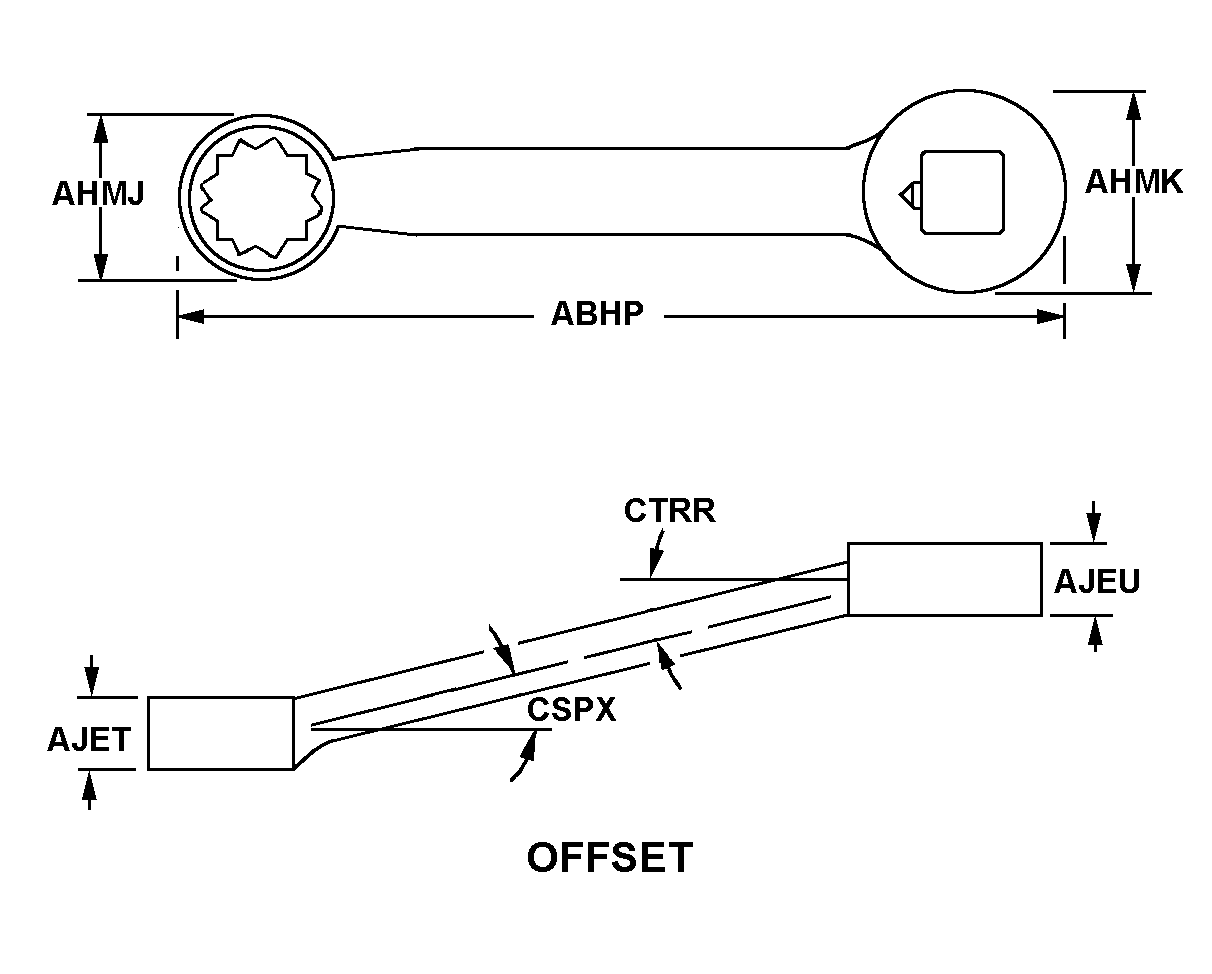

STYLE DESIGNATOR | 25 OFFSET |
OVERALL LENGTH | 5.177 INCHES NOMINAL |
WRENCHING END OUTSIDE DIAMETER | 1.155 INCHES NOMINAL |
DRIVE END OUTSIDE DIAMETER | 1.200 INCHES NOMINAL |
WRENCHING END HEAD THICKNESS | 0.500 INCHES NOMINAL |
DRIVE END HEAD THICKNESS | 0.500 INCHES NOMINAL |
WRENCHING END OFFSET ANGLE | 8.0 DEGREES NOMINAL |
WRENCHING SURFACE SIZE | 0.790 INCHES NOMINAL SINGLE END |
WRENCHING SURFACE SHAPE | 12 POINT SINGLE END INTERNAL |
DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-00-768-2485
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 732 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
Special Handling Code | 5 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
