NSN 5120-00-757-5030 431B883PC1, 00-757-5030, 007575030
Product Details | SLUGGING TYPE BOX WRENCH SOCKET
5120-00-757-5030 An item having a hexagonal external drive at one end, made to fit into the internal hexagonal or 12-point opening of a slugging type box wrench. The opposite end has a single-broached hexagonal opening of the same size as the external drive. The item is designed with extra thick walls to withstand the impact of sledge blows on the driving wrench.
Part Alternates: 431B883PC1, 5120-00-757-5030, 00-757-5030, 5120007575030, 007575030
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1960 | 00-757-5030 | 20061 ( SOCKET, SLUGGING TYPE BOX WRENCH ) |

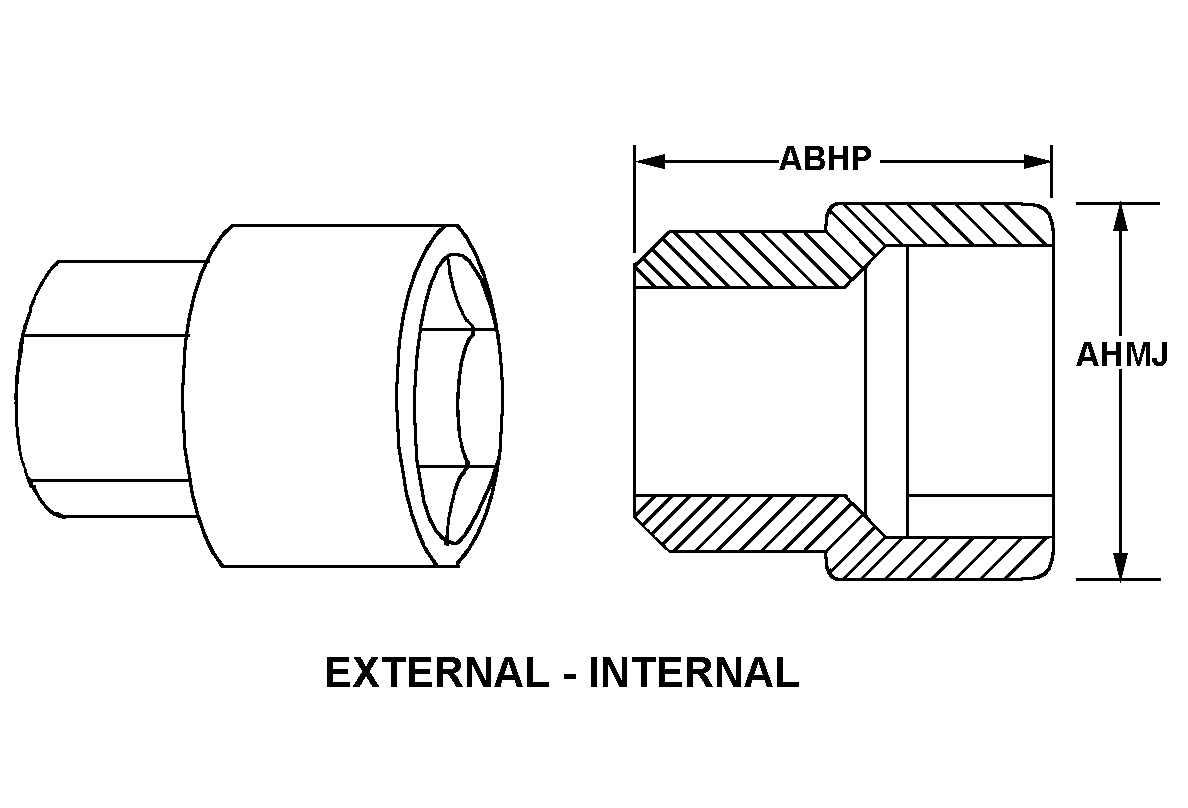

Drawings & Photos | NSN 5120-00-757-5030
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-757-5030
Technical Data | NSN 5120-00-757-5030
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4142 OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |
| STYLE DESIGNATOR | 163 EXTERNAL INTERNAL |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| WRENCHING END OUTSIDE DIAMETER | 1.688 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 1.125 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | SQUARE SINGLE END INTERNAL |
| DRIVE SURFACE SIZE | 1.088 INCHES MINIMUM AND 1.125 INCHES MAXIMUM SINGLE END |
| DRIVE END SHAPE | HEXAGON SINGLE END EXTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-00-757-5030
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-757-5030
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
