NSN 5120-00-732-3197 7323197, 00-732-3197, 007323197
Product Details | OPEN END WRENCH
5120-00-732-3197 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: 7323197, 5120-00-732-3197, 00-732-3197, 5120007323197, 007323197
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-732-3197 | 17182 ( WRENCH, OPEN END ) |

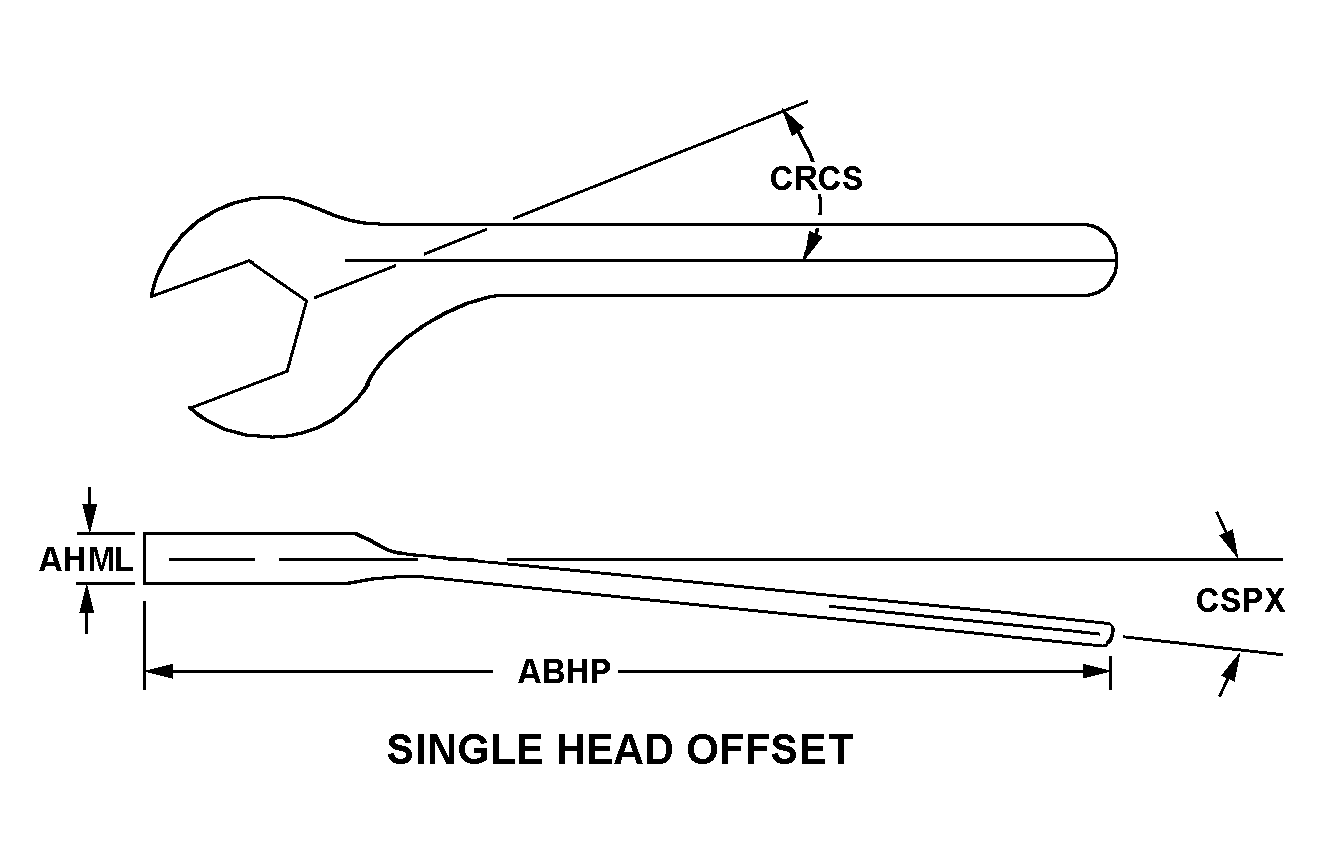

Drawings & Photos | NSN 5120-00-732-3197
Cross Reference | NSN 5120-00-732-3197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7323197 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-732-3197
Technical Data | NSN 5120-00-732-3197
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 90 SINGLE HEAD OFFSET |
| OVERALL LENGTH | 27.000 INCHES NOMINAL |
| HEAD THICKNESS | 1.3125 INCHES NOMINAL |
| HEAD ANGLE | 15.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 3.8125 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | OVAL SINGLE END INTERNAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7323197 |
Restrictions/Controls & Freight Information | NSN 5120-00-732-3197
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
