NSN 5120-00-628-5790 117GT1022, 00-628-5790, 006285790

5120-00-628-5790 An item designed to be driven by an external or internal drive. It has a face type spanner end.

Part Alternates: 117GT1022, 5120-00-628-5790, 00-628-5790, 5120006285790, 006285790

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
51	01 JAN 1963	00-628-5790	03543 ( SOCKET, WRENCH, FACE SPANNER )

Part Number	Cage Code	Manufacturer
117GT1022	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5120-00-628-5790

Compare

5120-00-628-6419, 5120-00-628-7441, 5120-00-628-9099, 5120-00-628-9101, 5120-00-628-9805

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 1,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

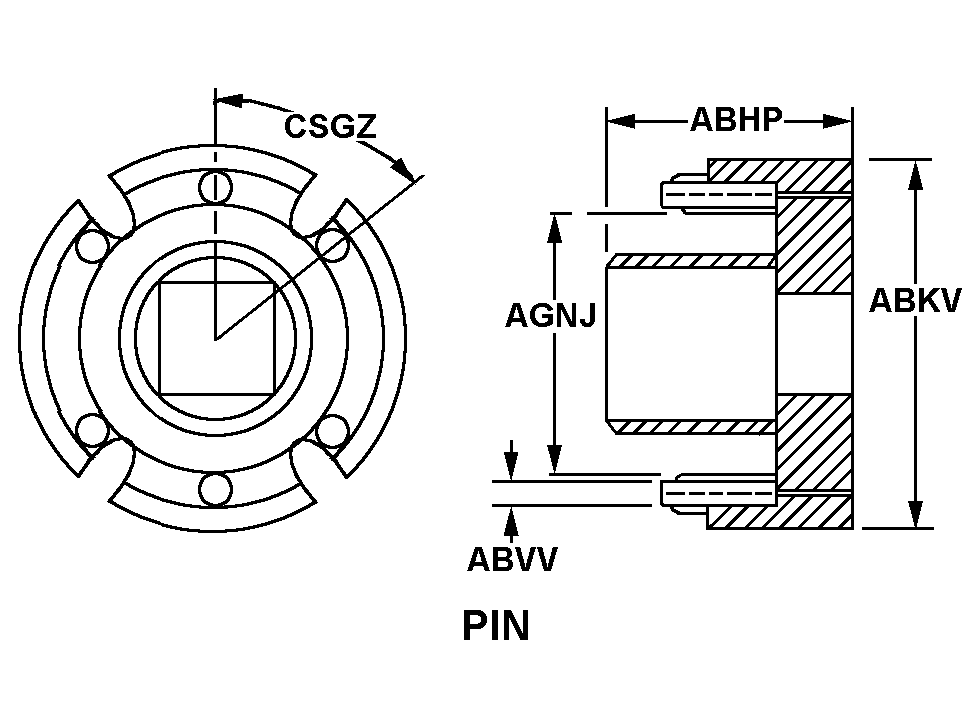

STYLE DESIGNATOR	174 PIN
OVERALL LENGTH	2.000 INCHES NOMINAL
OUTSIDE DIAMETER	2.500 INCHES NOMINAL
PIN DIAMETER	0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
OPENING DIAMETER	0.665 INCHES MINIMUM AND 1.500 INCHES MAXIMUM
ANGLE BETWEEN PINS	180.0 DEGREES NOMINAL
DRIVE SURFACE SIZE	0.504 INCHES MINIMUM AND 0.513 INCHES MAXIMUM SECOND END
DRIVE END SHAPE	SQUARE SINGLE END INTERNAL
MANUFACTURERS CODE	26512
DESIGN CONTROL REFERENCE	117GT1022

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	186620	TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	732	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	5	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
