NSN 5120-00-596-8502 MS152212, MS15221-2, B107.15
Product Details | FLAT TIP SCREWDRIVER
5120-00-596-8502 A manual screwdriver having a single, nonremovable, flat tip blade. The blade has a flared or straight sided tip. For items having more than one blade, see SCREWDRIVER BIT SET AND HANDLE. Excludes SCREWDRIVER, JEWELER'S SWIVEL KNOB; SCREWDRIVER, RATCHET; and SCREWDRIVER, SPARK TESTING.
Part Alternates: MS152212, MS15221-2, B107.15, B107.15 TY2CL3, B10715, B10715TY2CL3, GGGS121, GGG-S-121, GGG-S-121 TY1CL3, GGGS121TY1CL3, SDD1, SSD1, 304, 4511465TW, 45-11465TW, 5120-00-596-8502, 00-596-8502, 5120005968502, 005968502
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-596-8502 | 03355 ( SCREWDRIVER, FLAT TIP ) |

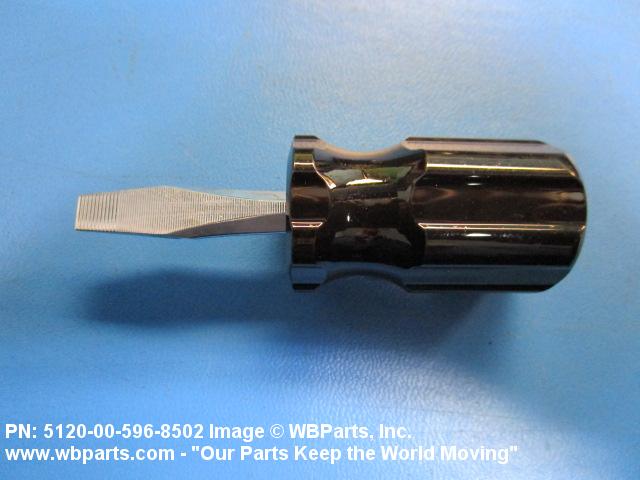

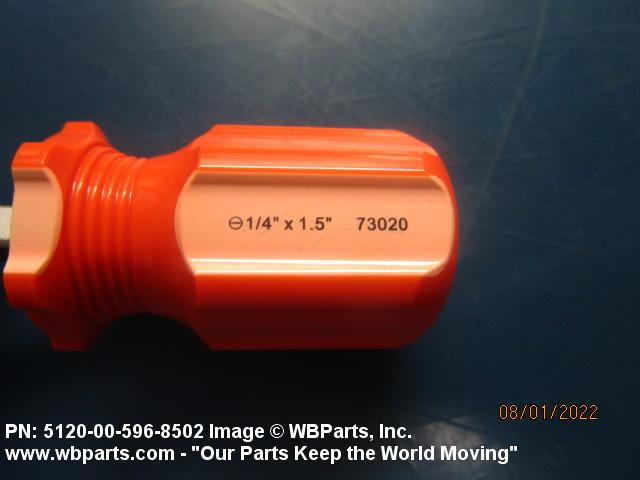

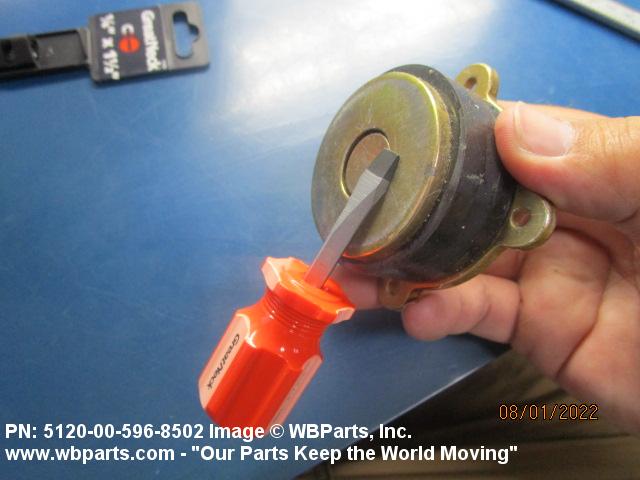

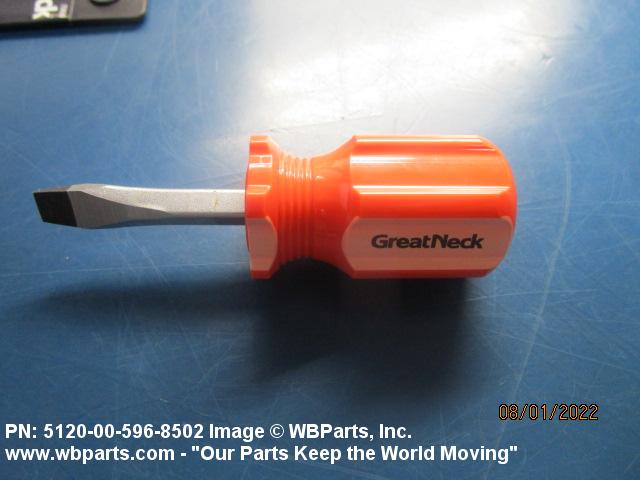

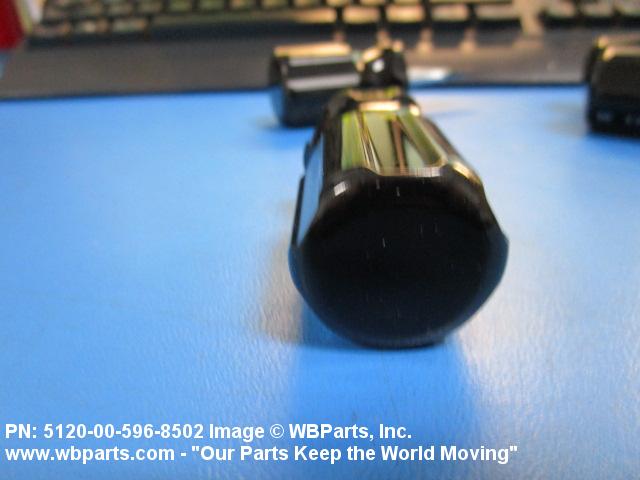

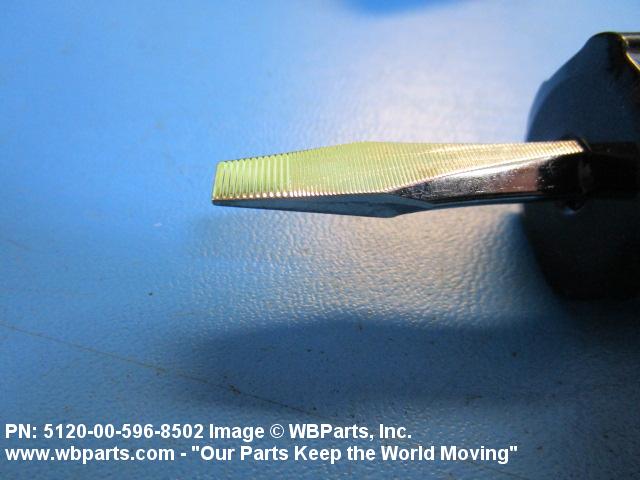

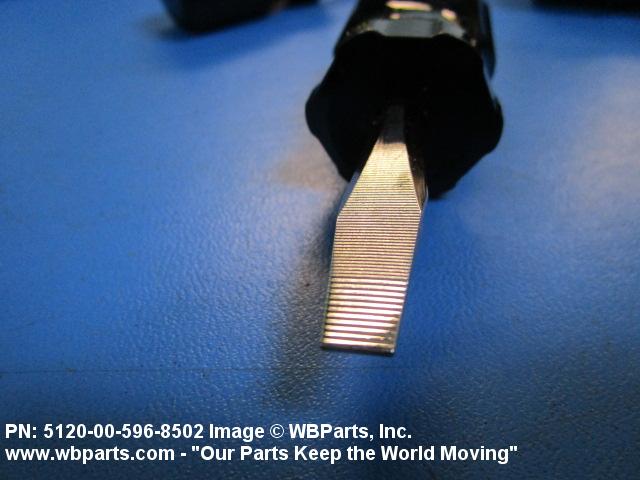

Drawings & Photos | NSN 5120-00-596-8502
Demand History | NSN 5120-00-596-8502
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 304 | 2023-08-234 | 9 | United States |
| 304 | 2023-08-220 | 9 | United States |
| 5120-00-596-8502 | 2023-04-107 | 33 | US |
| 5120-00-596-8502 | 2022-09-262 | 1 | US |
| 5120-00-596-8502 | 2022-08-214 | 300 | US |
| 5120-00-596-8502 | 2022-07-200 | 300 | US |
| 5120-00-596-8502 | 2022-07-200 | 300 | United States |
| 5120-00-596-8502 | 2021-07-190 | 8 | United States |
| GGGS121 | 2021-01-16 | 4 | US |
| GGGS121 | 2019-07-207 | 1 | US |
| 5120-00-596-8502 | 2019-04-94 | 1 | US |
| GGGS121 | 2017-10-279 | 3 | SA |
| SSD1 | 2017-10-277 | 3 | BD |
| 304 | 2015-09-245 | 10 | us |
| GGG-S-121 | 2014-02-36 | 52 | US |
| 5120-00-596-8502 | 2013-06-156 | 18 | United States |
| 304 | 2012-09-266 | 8 | |
| 304 | 2012-09-260 | 8 | |
| 304 | 2012-09-259 | 8 | |
| B10715 | 2012-05-140 | 10 | United States |
Cross Reference | NSN 5120-00-596-8502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110-0304B | 36139 | FULLER TOOL CO LTD |
| 304 | 36139 | FULLER TOOL CO LTD |
| 45-11465TW | 63653 | VAISALA INC. |
| 5120-00-596-8502 | 64067 | SOURCEAMERICA |
| B107.15 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.15 TY2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.15 TY2CL3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.600 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| GGG-S-121 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-S-121 TY1CL3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MS15221-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SDD1 | C7127 | SNAP-ON HOLDINGS GMBH DBA SUN DIAGNOSTICS |
| SDD1 | F0226 | STOKVIS TAPES FRANCE (ANCIENNEMENTADERA) |
| SSD1 | C7127 | SNAP-ON HOLDINGS GMBH DBA SUN DIAGNOSTICS |
| SSD1 | F0226 | STOKVIS TAPES FRANCE (ANCIENNEMENTADERA) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-596-8502
Technical Data | NSN 5120-00-596-8502
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC HANDLE STEEL BLADE |

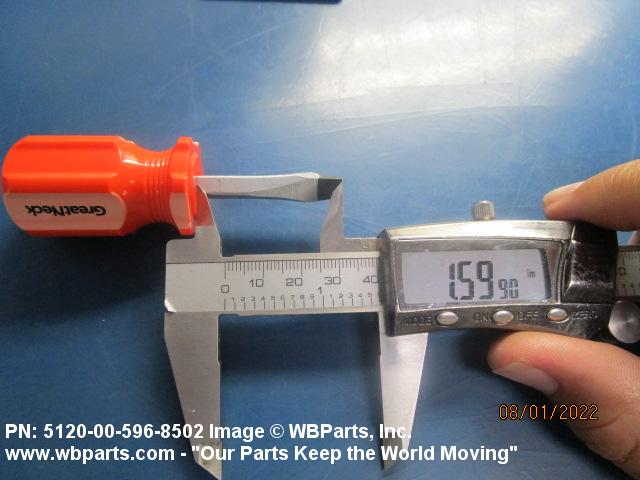

| BLADE LENGTH | 1.500 INCHES NOMINAL |

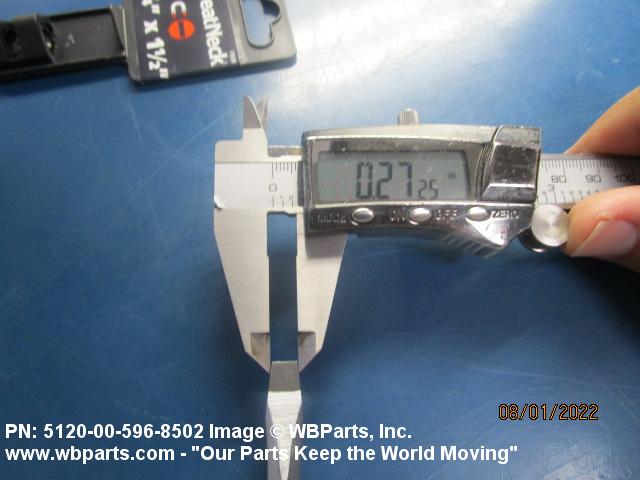

| TIP WIDTH | 0.250 INCHES NOMINAL |

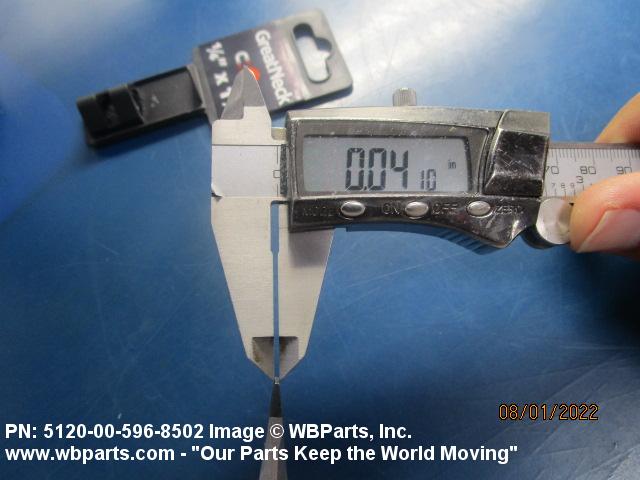

| END THICKNESS | 0.040 INCHES NOMINAL |
| FEATURES PROVIDED | FLARED TIP SIDE |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.15 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 3 CLASS |
Restrictions/Controls & Freight Information | NSN 5120-00-596-8502
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
