NSN 5120-00-596-1267 33959011049057REVAPC115, 339-5901-1049057REVAPC1-15, 38559011194470PC115
Product Details | SOCKET WRENCH
5120-00-596-1267 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Part Alternates: 33959011049057REVAPC115, 339-5901-1049057REVAPC1-15, 38559011194470PC115, 385-5901-1194470PC1-15, 41759011438888ALTDPC115, 417-5901-1438888ALTDPC1-15, 56959011191678PC12, 569-5901-1191678PC1-2, 5120-00-596-1267, 00-596-1267, 5120005961267, 005961267
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-596-1267 | 03520 ( WRENCH, SOCKET ) |
Drawings & Photos | NSN 5120-00-596-1267
Cross Reference | NSN 5120-00-596-1267
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-596-1267
Technical Data | NSN 5120-00-596-1267
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |

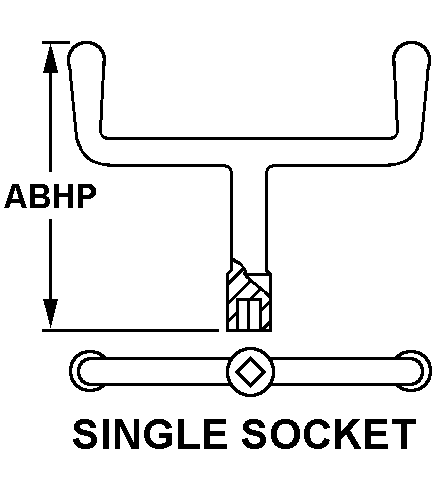

| STYLE DESIGNATOR | 187 SINGLE SOCKET |
| OVERALL LENGTH | 11.375 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.781 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | SQUARE SINGLE END INTERNAL |
| SPECIAL FEATURES | FIXED HANDLE,BOTH ENDS BENT UP 90 DEG 5 IN. FROM CENTERLINE |
Restrictions/Controls & Freight Information | NSN 5120-00-596-1267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-596-1267
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
