NSN 5120-00-596-0940 AM605, NAM605, H22307
Product Details | SOCKET WRENCH SCREWDRIVER ATTACHMENT
5120-00-596-0940 An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: AM605, NAM605, H22307, J47705/32 , J4770532, TMA562L0C, TMA5-62L0C, VA0940, GGGW641, GGG-W-641, GGG-W-641 TY4CL3STA, GGGW641TY4CL3STA, 10710, 10-710, 4990 5/32, 4990532, 5120-00-596-0940, 00-596-0940, 5120005960940, 005960940
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-596-0940 | 52399 ( SCREWDRIVER ATTACHMENT, SOCKET WRENCH ) |

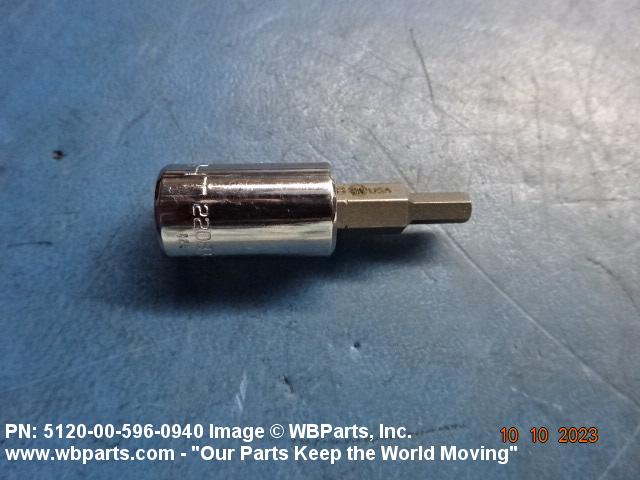

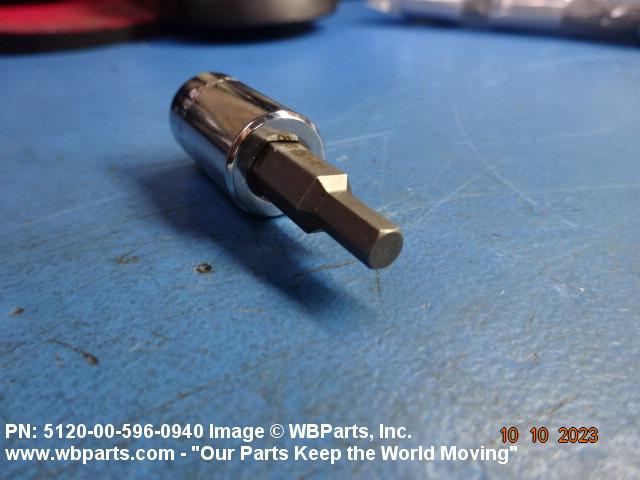

Drawings & Photos | NSN 5120-00-596-0940
Demand History | NSN 5120-00-596-0940
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-596-0940 | 2023-09-249 | 30 | United States |
| GGGW641 | 2023-08-226 | 57 | United States |
| GGGW641 | 2022-11-313 | 2 | United States |
| GGGW641 | 2022-04-97 | 10 | GE |
| 5120-00-596-0940 | 2021-10-288 | 3 | KR |
| GGGW641 | 2020-05-150 | 2 | United States |
| GGGW641 | 2019-07-207 | 1 | US |
| GGGW641 | 2017-10-278 | 2 | SA |
| GGGW641 | 2014-11-318 | 1 | Taiwan |
| VA0940 | 2012-09-261 | 8 | US |
Cross Reference | NSN 5120-00-596-0940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-710 | 03914 | ARMSTRONG BROS TOOL CO |
| 10-710 | 08292 | EASCO HAND TOOLS INC DIV DANAHER TOOL GROUP EASCO HAND |
| 10-710 | R1120 | SATAIR A/S |
| AM605 | 65814 | TRW INC HAND TOOLS DIV |
| GGG-W-641 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-641 TY4CL3STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| H22307 | K0967 | MBDA UK LTD |
| J47705/32 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| NAM605 | 65814 | TRW INC HAND TOOLS DIV |
| TMA5-62L0C | 06887 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| TMA5-62L0C | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| VA0940 | 95021 | DURSTON MANUFACTURING COMPANY DBA VIM TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-596-0940
Related Products | NSN 5120-00-596-0940
Technical Data | NSN 5120-00-596-0940
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| STYLE DESIGNATOR | 187C HEXAGON |

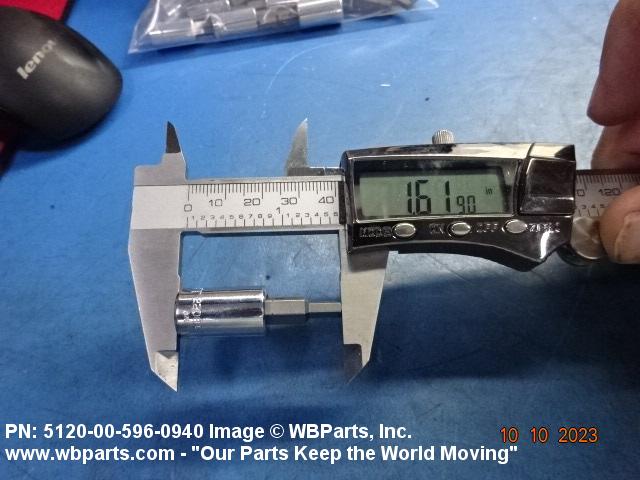

| OVERALL LENGTH | 1.125 INCHES NOMINAL |

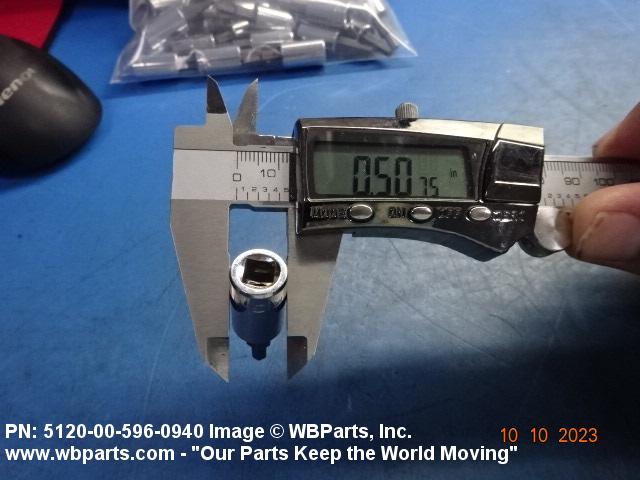

| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| BLADE LENGTH | 0.188 INCHES NOMINAL |

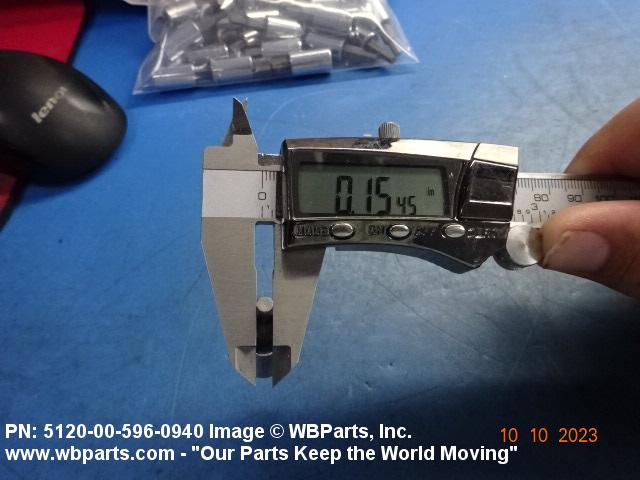

| WRENCHING SURFACE SIZE | 0.156 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END EXTERNAL |

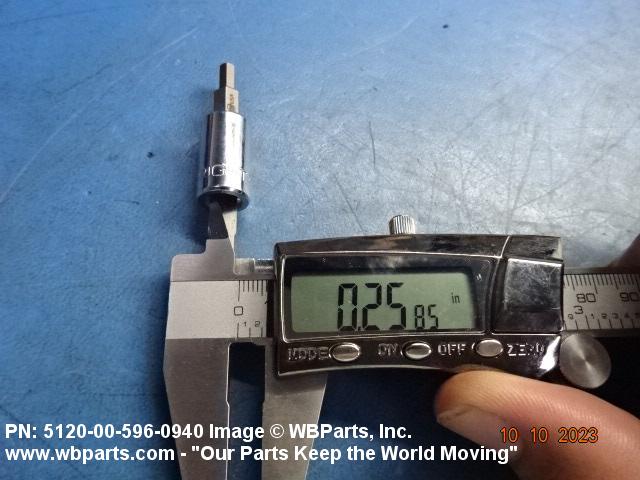

| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 3 CLASS AND A STYLE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY TWO PIECE DESIGN, BIT BLACK OXIDE AND BODY CHROME FINISH STEEL |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-641 |
Restrictions/Controls & Freight Information | NSN 5120-00-596-0940
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-596-0940
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
