NSN 5120-00-596-0830 MS8516237, MS8516-2-3-7, AN8516237
Product Details | SOCKET WRENCH SPANNER ATTACHMENT
5120-00-596-0830 An item having an adjustable or fixed span with pin, hook, or key type end that is used to fit and turn various size retaining rings, cover plates, plugs, couplings, and like parts. Usually designed to be driven by a male driver.
Part Alternates: MS8516237, MS8516-2-3-7, AN8516237, AN8516-2-3-7, 5120-00-596-0830, 00-596-0830, 5120005960830, 005960830
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-596-0830 | 33471 ( SPANNER ATTACHMENT, SOCKET WRENCH ) |

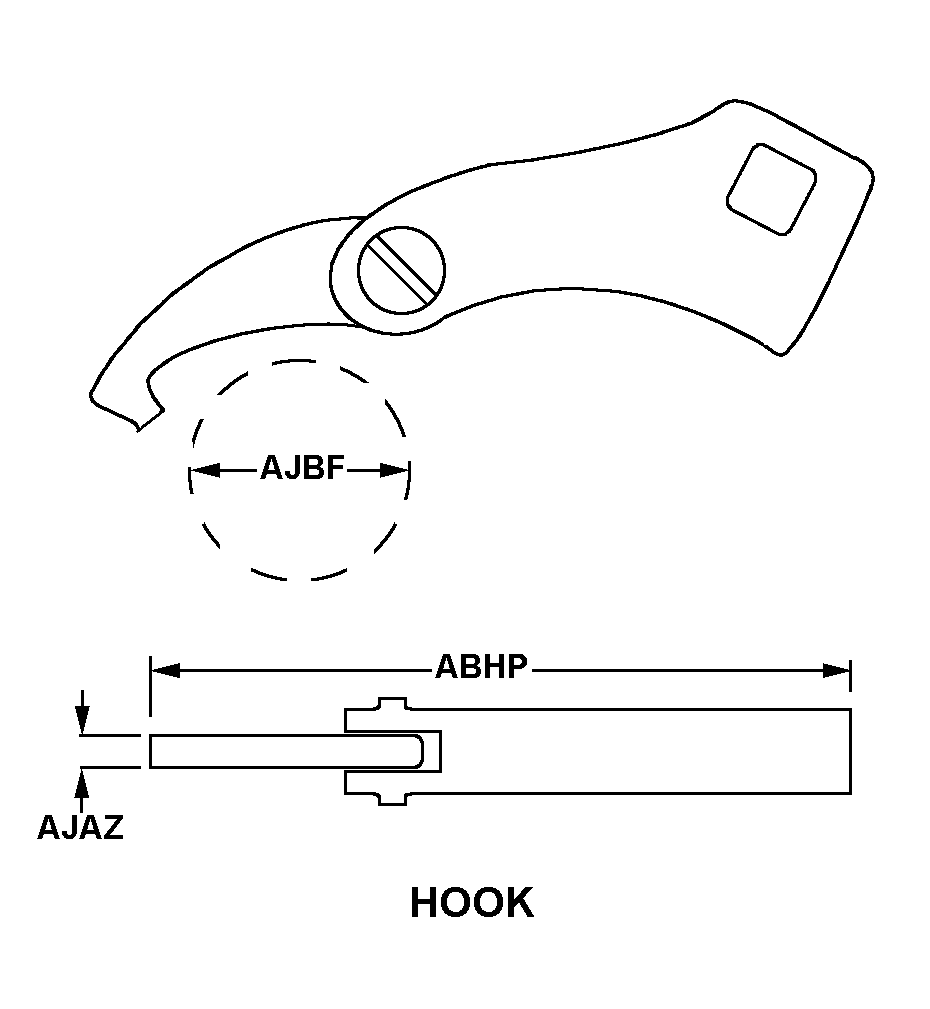

Drawings & Photos | NSN 5120-00-596-0830
Demand History | NSN 5120-00-596-0830
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-596-0830 | 2009-12-341 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-596-0830
Technical Data | NSN 5120-00-596-0830
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| STYLE DESIGNATOR | 202 HOOK |
| HOOK THICKNESS | 0.250 INCHES NOMINAL |
| CIRCLE RANGE DIAMETER | 3.500 INCHES MINIMUM AND 6.000 INCHES MAXIMUM |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS8516-2-3-7 |
Restrictions/Controls & Freight Information | NSN 5120-00-596-0830
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
