NSN 5120-00-595-9193 A-A-59220 TY2SZ7/8, AA59220TY2SZ78, MILW10698
Product Details | PIPE WRENCH
5120-00-595-9193 A wrench having serrated jaws, chain, girth, or strap at one end. It is designed for installing or removing pipe or pipe fittings. Excludes WRENCH, PIPE, INTERNAL GRIPPING.
Part Alternates: A-A-59220 TY2SZ7/8, AA59220TY2SZ78, MILW10698, MIL-W-10698, MIL-W-10698 TY2SZA, MILW10698TY2SZA, 5120-00-595-9193, 00-595-9193, 5120005959193, 005959193
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-595-9193 | 03492 ( WRENCH, PIPE ) |
Drawings & Photos | NSN 5120-00-595-9193
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-595-9193
Technical Data | NSN 5120-00-595-9193
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-700 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

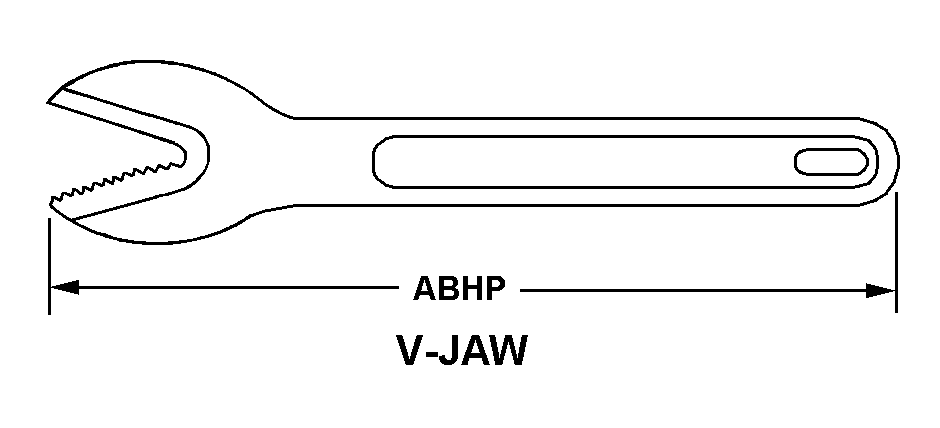

| STYLE DESIGNATOR | 132 V-JAW |
| OVERALL LENGTH | 4.785 INCHES MINIMUM AND 5.125 INCHES MAXIMUM |
| WRENCHING SURFACE SIZE | 0.859 INCHES MINIMUM AND 0.891 INCHES MAXIMUM FIRST END |
| WRENCHING SURFACE SHAPE | RECTANGULAR FIRST END INTERNAL |
| SPECIAL FEATURES | 0.281 INCH WIDE SCREWDRIVER TIP ON SECOND END |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A SIZE |
| END ITEM IDENTIFICATION | LT-DUTY USE ON M-41 AND YUKON STOVES OF MIL-H-13514 AND MIL-S-12340 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-10698 |
Restrictions/Controls & Freight Information | NSN 5120-00-595-9193
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-595-9193
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
