NSN 5120-00-595-8472 026B, 30030, 00-595-8472
Product Details | YARNING IRON
5120-00-595-8472 Refer to Reference Drawing Group AH before using item name. See also CAULKING TOOL, HAND; CAULKING IRON, WOOD and HAWSING IRON.
Part Alternates: 026B, 30030, 5120-00-595-8472, 00-595-8472, 5120005958472, 005958472
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-595-8472 | 03932 ( YARNING IRON ) |

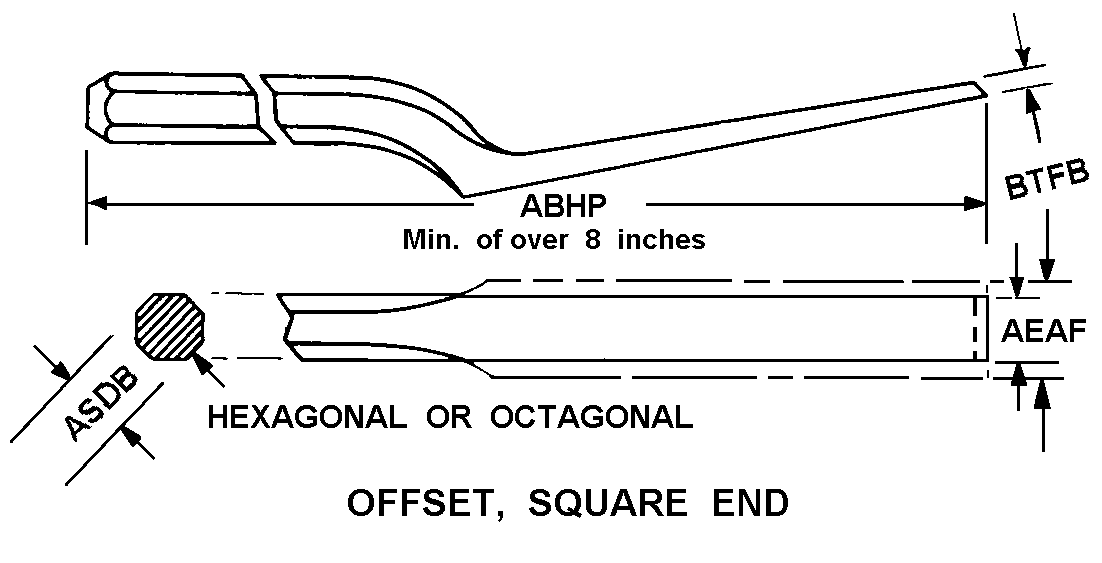

Drawings & Photos | NSN 5120-00-595-8472
Demand History | NSN 5120-00-595-8472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30030 | 2021-05-147 | 1 | United States |
| 30030 | 2021-01-04 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-595-8472
Related Products | NSN 5120-00-595-8472
Technical Data | NSN 5120-00-595-8472
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AH12 OFFSET, SQUARE END |
| OVERALL LENGTH | 14.000 INCHES NOMINAL |
| BLADE WIDTH | 0.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| TIP THICKNESS | 0.026 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5120-00-595-8472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-595-8472
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
