NSN 5120-00-442-7801 HSP1584, 865, 00-442-7801
Product Details | MECHANICAL PULLER
5120-00-442-7801 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: HSP1584, 865, 5120-00-442-7801, 00-442-7801, 5120004427801, 004427801
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-442-7801 | 18913 ( PULLER, MECHANICAL ) |

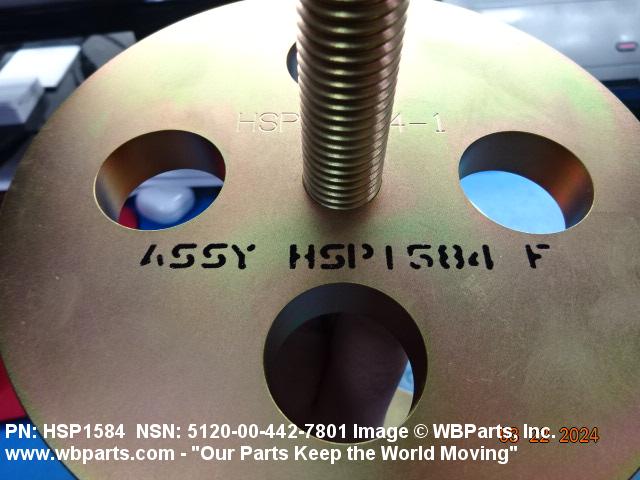

Drawings & Photos | NSN 5120-00-442-7801
Demand History | NSN 5120-00-442-7801
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-442-7801 | 2024-02-37 | 1 | France |
| 5120-00-442-7801 | 2023-11-314 | 1 | France |
| 5120-00-442-7801 | 2023-10-296 | 1 | France |
| 5120-00-442-7801 | 2023-04-96 | 1 | France |
| 5120-00-442-7801 | 2016-08-238 | 1 | United States |
| HSP1584 | 2015-09-265 | 1 | US |
| 5120-00-442-7801 | 2014-08-230 | 1 | US |
| 5120-00-442-7801 | 2014-06-176 | 1 | US |
| 5120-00-442-7801 | 2012-02-58 | 1 | US |
| HSP1584 | 2007-05-123 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-442-7801
Related Products | NSN 5120-00-442-7801
Technical Data | NSN 5120-00-442-7801
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | CONSISTS OF PULLER PLATE,PUSHER PLATE,BOLT AND NUT,USED TO PULL INTEGRAL OIL ASSEMBLY |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | HSP1584 |
Restrictions/Controls & Freight Information | NSN 5120-00-442-7801
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-442-7801
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
4 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
4 EA : Each |
