NSN 5120-00-423-9031 3B3850, 00-423-9031, 004239031
Product Details | SOCKET WRENCH
5120-00-423-9031 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Part Alternates: 3B3850, 5120-00-423-9031, 00-423-9031, 5120004239031, 004239031
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-423-9031 | 03520 ( WRENCH, SOCKET ) |
Drawings & Photos | NSN 5120-00-423-9031
Cross Reference | NSN 5120-00-423-9031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3B3850 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-423-9031
Technical Data | NSN 5120-00-423-9031
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |

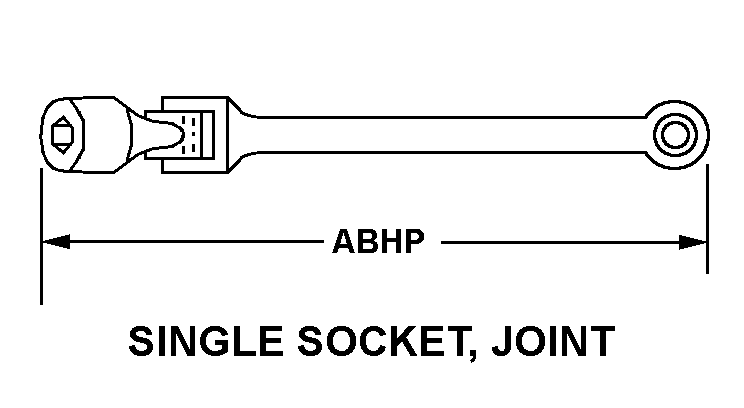

| STYLE DESIGNATOR | 177 SINGLE SOCKET, JOINT |
| OVERALL LENGTH | 18.500 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 1.125 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| SPECIAL FEATURES | L-SHAPED HANDLE 7.500 IN/LG |
Restrictions/Controls & Freight Information | NSN 5120-00-423-9031
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
