NSN 5120-00-413-4682 123GT10103, 00-413-4682, 004134682
Product Details | TORQUE WRENCH
5120-00-413-4682 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: 123GT10103, 5120-00-413-4682, 00-413-4682, 5120004134682, 004134682
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 MAY 1970 | 00-413-4682 | 17611 ( WRENCH, TORQUE ) |
Drawings & Photos | NSN 5120-00-413-4682
Demand History | NSN 5120-00-413-4682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-413-4682 | 2024-09-255 | 1 | United States |
| 5120-00-413-4682 | 2021-05-138 | 1 | United States |
Cross Reference | NSN 5120-00-413-4682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123GT10103 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-413-4682
Technical Data | NSN 5120-00-413-4682
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TORQUE CAPACITY | 4100.0 INCH-POUNDS NOMINAL |
| TORQUE INDICATING MECHANISM | PRESET-FIXED |
| TORQUE SIGNAL METHOD | AUDIBLE |

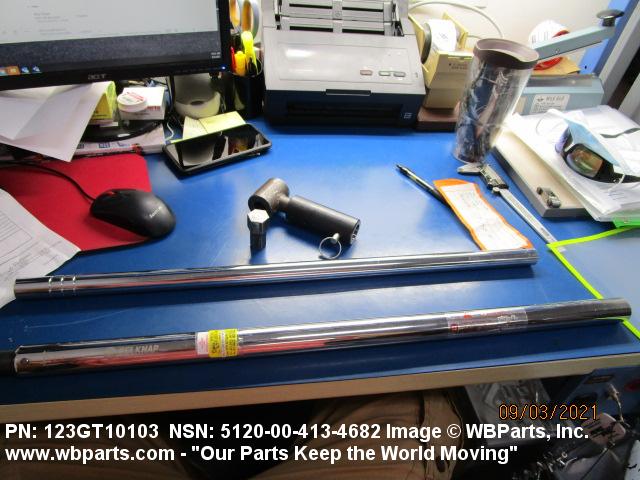

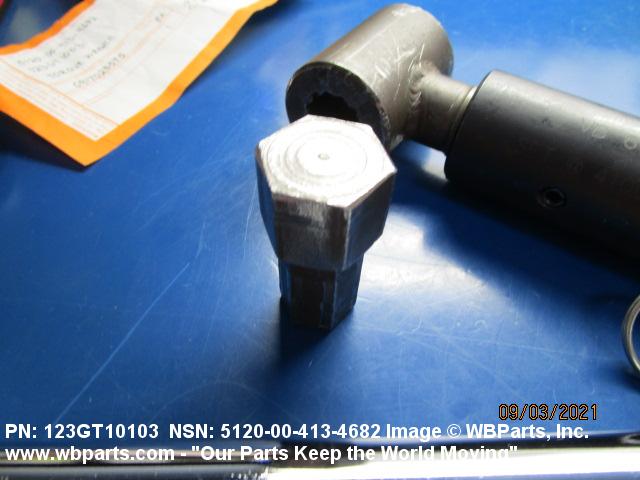

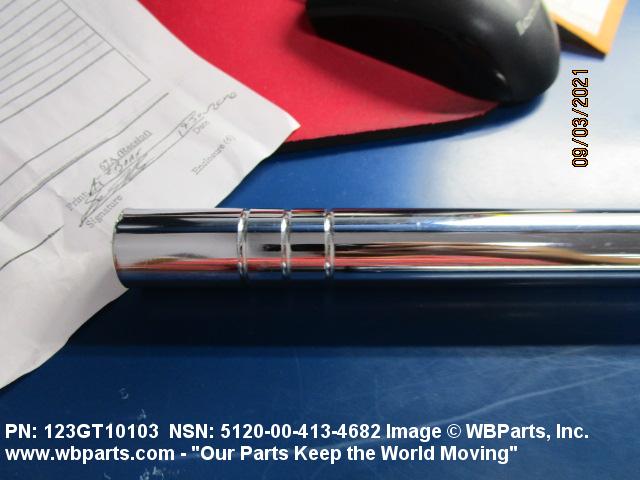

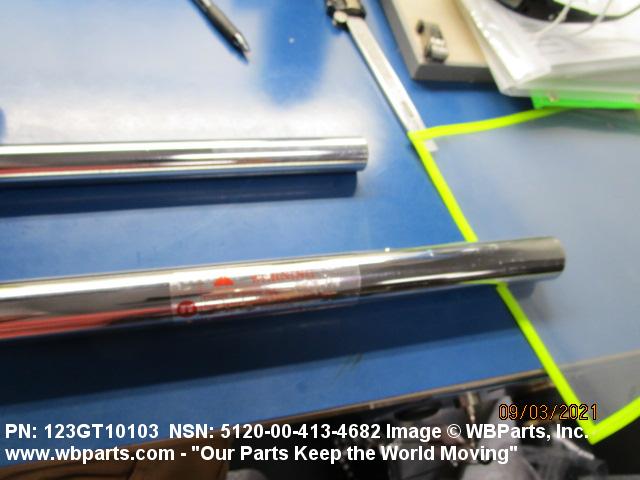

| FURNISHED ITEMS | 123GT10103-5 EXTENSION HANDLE,EXTENDS WRENCH TO 18 1/2 IN.; 123GT10103-7 EXTENSION HANDLE,EXTENDS WRENCH TO 9 IN.; 123GT10103-9 ADAPTER |
| III FUNCTIONAL DESCRIPTION | TO TORQUE WING NACELLE ATTACHMENT BOLTS 123WM10110-1 AND 123WM10119-1 |
Restrictions/Controls & Freight Information | NSN 5120-00-413-4682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-00-413-4682
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
