NSN 5120-00-330-3897 302988, 00-330-3897, 003303897
Product Details | SOCKET WRENCH
5120-00-330-3897 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Part Alternates: 302988, 5120-00-330-3897, 00-330-3897, 5120003303897, 003303897
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-330-3897 | 03520 ( WRENCH, SOCKET ) |
Drawings & Photos | NSN 5120-00-330-3897
Cross Reference | NSN 5120-00-330-3897
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302988 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-330-3897
Technical Data | NSN 5120-00-330-3897
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | M69510 MFR REF SINGLE TREATMENT RESPONSE OVERALL |

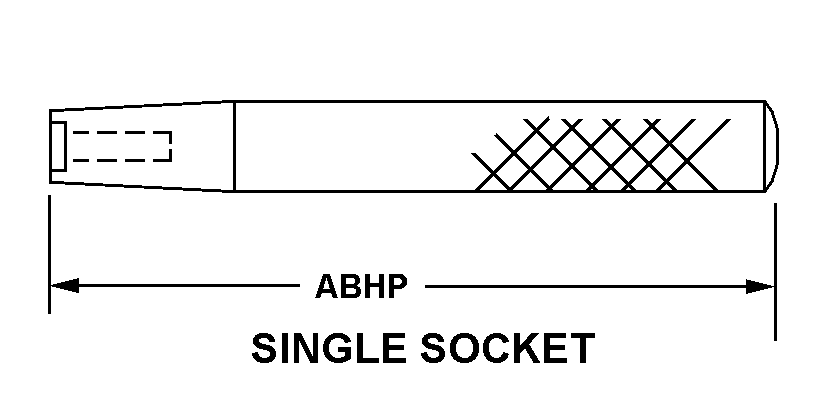

| STYLE DESIGNATOR | 162 SINGLE SOCKET |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.047 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | SPLINE SINGLE END INTERNAL |
| WRENCHING SURFACE FLUTE QUANTITY | 2 |
| HARDNESS RATING | 440.0 BRINELL STANDARD MINIMUM AND 480.0 BRINELL STANDARD MAXIMUM |
| SPECIAL FEATURES | BRINELL HARDNESS RATING IS FOR SOCKET END ONLY |
| END ITEM IDENTIFICATION | 1270-00-211-6942 |
Restrictions/Controls & Freight Information | NSN 5120-00-330-3897
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
