NSN 5120-00-303-0905 PWA70254, PWA7025-4, 00-303-0905
Product Details | TORQUE WRENCH ADAPTER

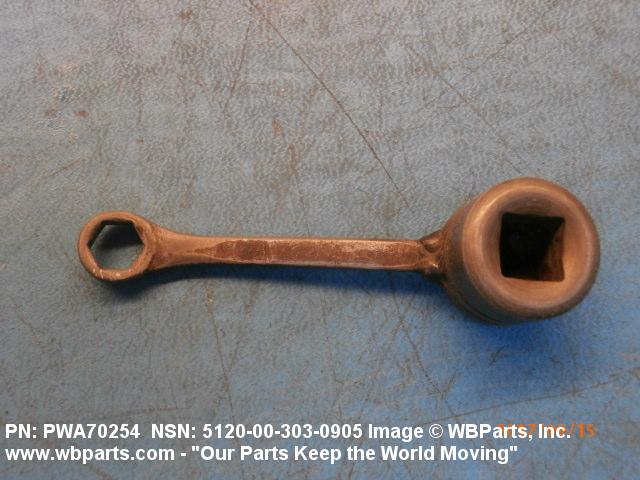

5120-00-303-0905 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: PWA70254, PWA7025-4, 5120-00-303-0905, 00-303-0905, 5120003030905, 003030905
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-303-0905 | 60023 ( ADAPTER, TORQUE WRENCH ) |

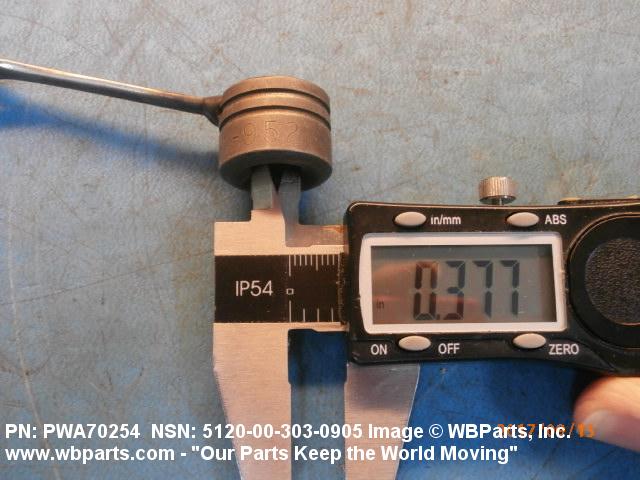

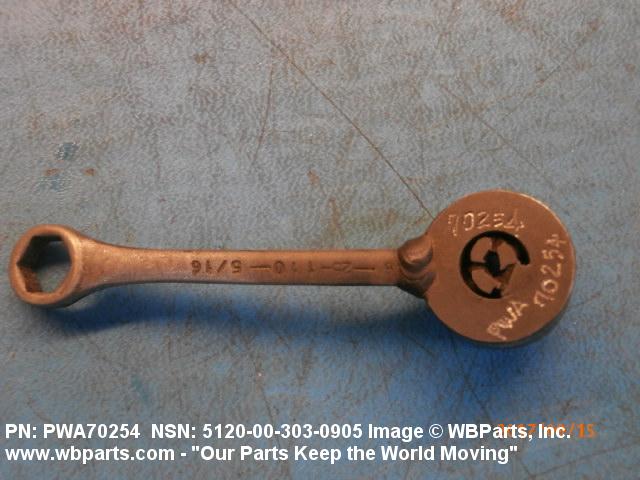

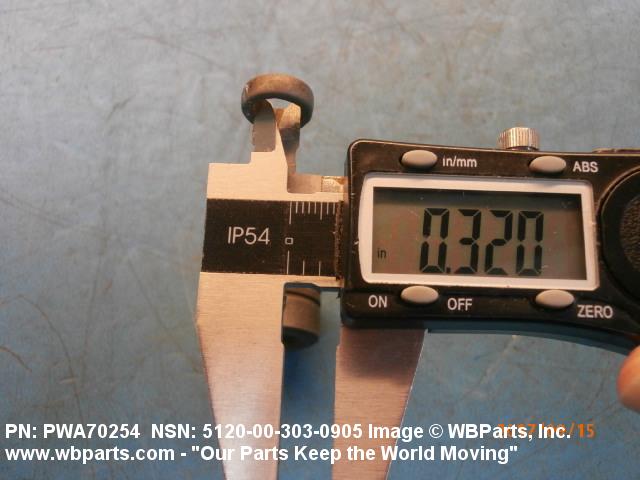

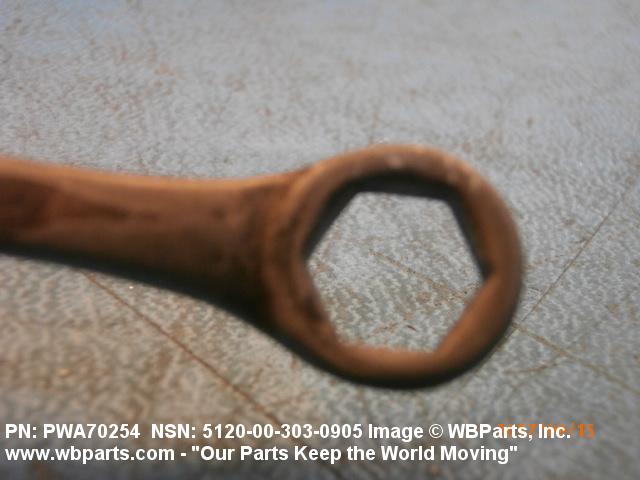

Drawings & Photos | NSN 5120-00-303-0905
Demand History | NSN 5120-00-303-0905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PWA70254 | 2017-08-233 | 2 | United States |
| PWA70254 | 2017-03-87 | 2 | United States |
Cross Reference | NSN 5120-00-303-0905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA7025-4 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-303-0905
Related Products | NSN 5120-00-303-0905
Technical Data | NSN 5120-00-303-0905
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| STYLE DESIGNATOR | 25 OFFSET |

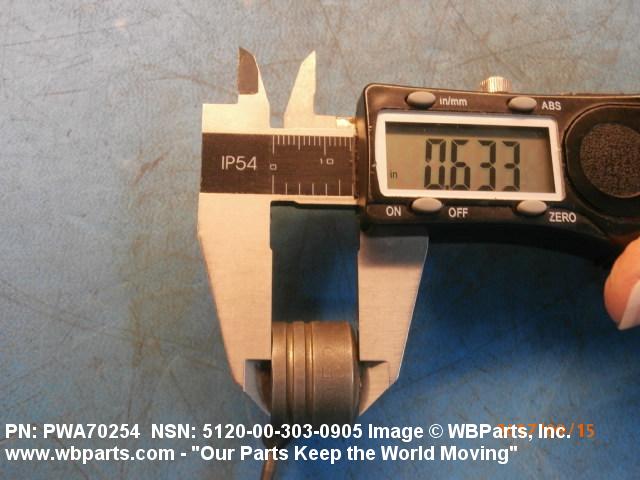

| DRIVE END HEAD THICKNESS | 0.625 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 15.0 DEGREES NOMINAL |
| DRIVE END OFFSET ANGLE | 15.0 DEGREES NOMINAL |

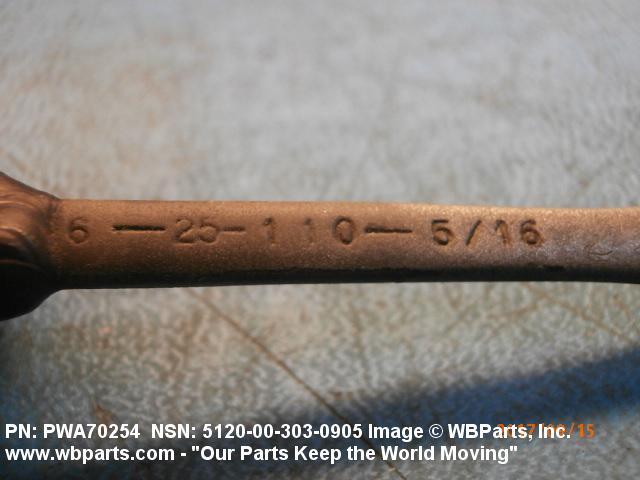

| WRENCHING SURFACE SIZE | 0.312 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 12 POINT SINGLE END INTERNAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |

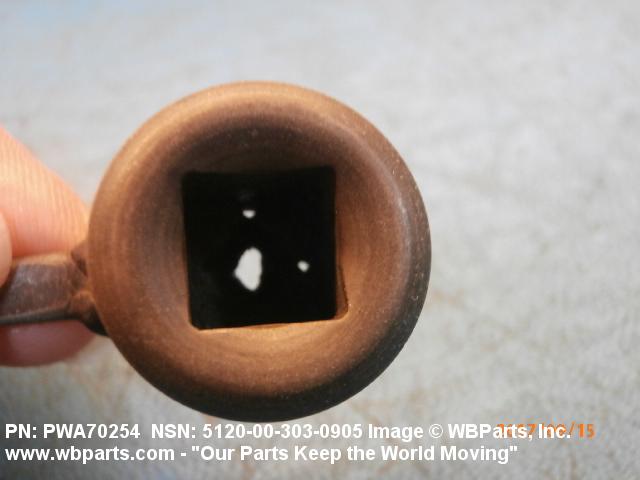

| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |

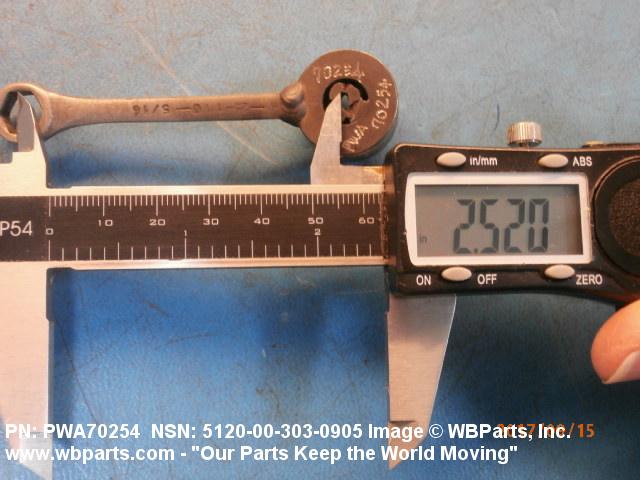

| SPECIAL MARKINGS | CENTER DISTANCE 2-1/2 IN. |
| MANUFACTURERS CODE | 77445 |

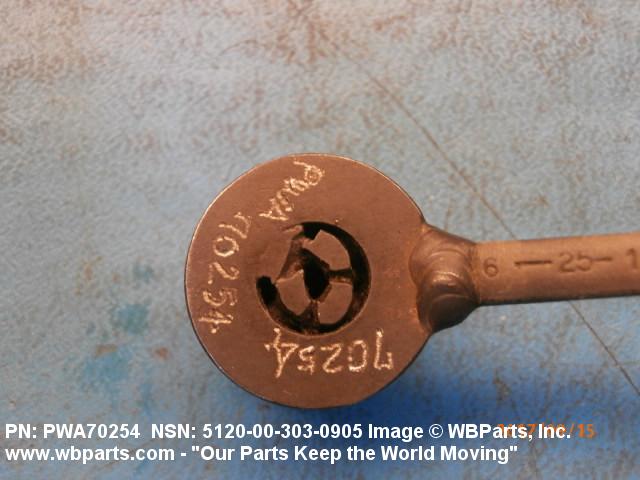

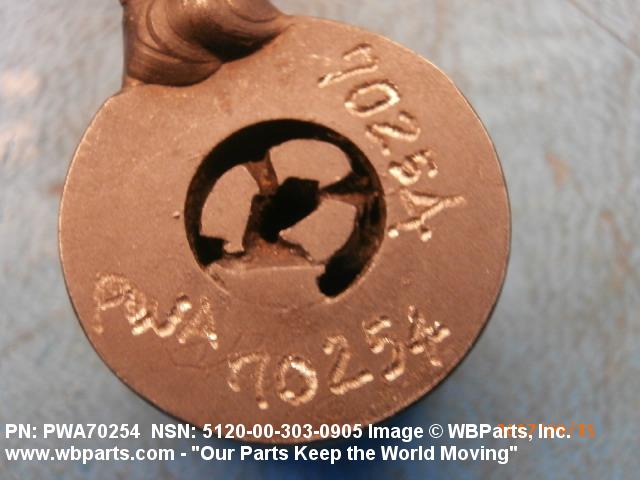

| DESIGN CONTROL REFERENCE | PWA7025-4 |
Restrictions/Controls & Freight Information | NSN 5120-00-303-0905
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-303-0905
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RU | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, J-57 |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
