NSN 5120-00-293-0987 GGGW641, GGG-W-641, GGG-W-641 TY3CL2
Product Details | SOCKET WRENCH HANDLE RATCHET HEAD
5120-00-293-0987 A reversible ratcheting mechanism having a square external end designed to fit into the internal end of a wrench socket or attachment, and has provisions for a round bar grip, but does not include the bar. When furnished with a bar, see HANDLE, SOCKET WRENCH. Excludes RATCHET ATTACHMENT, SOCKET WRENCH.
Part Alternates: GGGW641, GGG-W-641, GGG-W-641 TY3CL2, GGGW641TY3CL2, 8H8545, 5120-00-293-0987, 00-293-0987, 5120002930987, 002930987
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-293-0987 | 18872 ( RATCHET HEAD, SOCKET WRENCH HANDLE ) |
Drawings & Photos | NSN 5120-00-293-0987
Demand History | NSN 5120-00-293-0987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGW641 | 2023-08-226 | 57 | United States |
| GGGW641 | 2022-11-313 | 2 | United States |
| GGGW641 | 2022-04-97 | 10 | GE |
| GGGW641 | 2020-05-150 | 2 | United States |
| 5120-00-293-0987 | 2020-03-77 | 11 | United States |
| GGGW641 | 2019-07-207 | 1 | US |
| GGGW641 | 2017-10-278 | 2 | SA |
| GGGW641 | 2014-11-318 | 1 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-293-0987
Technical Data | NSN 5120-00-293-0987
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

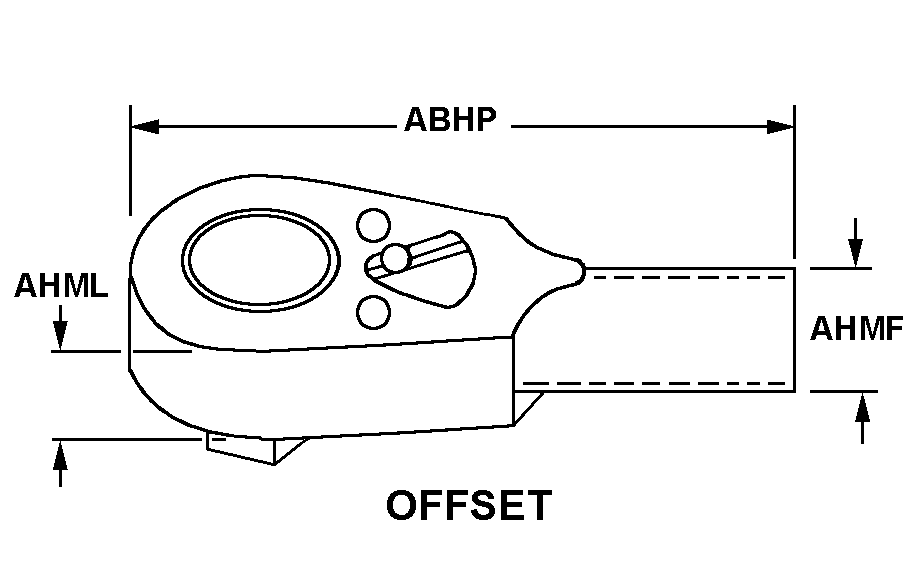

| STYLE DESIGNATOR | 152 OFFSET |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| HANDLE HOLE DIAMETER | 0.812 INCHES NOMINAL |
| HEAD THICKNESS | 1.125 INCHES MAXIMUM |
| DRIVE SURFACE SIZE | 0.750 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY ITEM NAME AND PAC STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-641 |
Restrictions/Controls & Freight Information | NSN 5120-00-293-0987
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
