NSN 5120-00-288-8774 00-288-8774, 002888774
Product Details | INTERNAL GRIPPING PIPE WRENCH
5120-00-288-8774 A hand tool designed to be inserted into the end of nipples and pipes, and grip the inner surface by a cam or expansion action. It is used to turn items which may not protrude sufficiently to grip externally, or where an exterior plating or thread may not be marred. The tool is turned by applying a wrench to the protruding section.
Part Alternates: 5120-00-288-8774, 00-288-8774, 5120002888774, 002888774
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 00-288-8774 | 19718 ( WRENCH, PIPE, INTERNAL GRIPPING ) |
Drawings & Photos | NSN 5120-00-288-8774
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-288-8774
Technical Data | NSN 5120-00-288-8774
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE AND PHOSPHATE AND ZINC OVERALL |

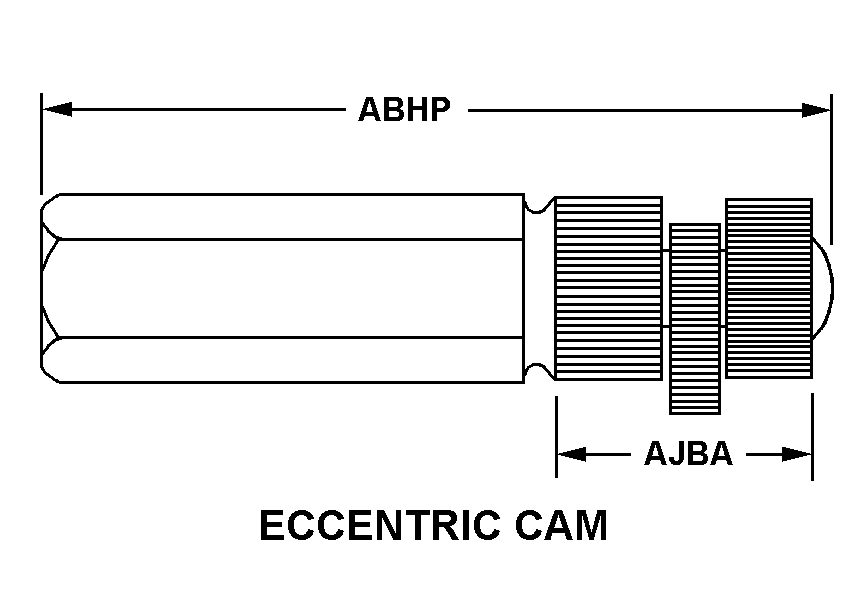

| STYLE DESIGNATOR | 467 ECCENTRIC CAM |
| OVERALL LENGTH | 3.000 INCHES MINIMUM |
| SERRATED SECTION LENGTH | 1.000 INCHES MINIMUM |
| WRENCHING SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | ROUND SINGLE END EXTERNAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL FIRST END |
| DRIVE END SHAPE | HEXAGON SINGLE END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-00-288-8774
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
