NSN 5120-00-274-3782 0TC927, 110, 1A805
Product Details | MECHANICAL PULLER
5120-00-274-3782 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: 0TC927, 110, 1A805, 71572, 71-572 , 927, 5120-00-274-3782, 00-274-3782, 5120002743782, 002743782
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 25 JUL 1973 | 00-274-3782 | 18913 ( PULLER, MECHANICAL ) |
Drawings & Photos | NSN 5120-00-274-3782
Demand History | NSN 5120-00-274-3782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 110 | 2019-08-242 | 1 | |
| 927 | 2018-01-07 | 2 | US |
| 5120-00-274-3782 | 2017-04-101 | 2 | us |
| 927 | 2016-09-250 | 2 | United States |
| 927 | 2016-07-183 | 2 | United States |
| 110 | 2015-05-126 | 1 | |
| 927 | 2012-07-207 | 14 | United States |
| 927 | 2012-01-30 | 20 | United States |
| 927 | 2011-06-155 | 2 | Saudi Arabia |
Cross Reference | NSN 5120-00-274-3782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0TC927 | 45225 | SERVICE SOLUTIONS U.S. LLC |
| 110 | 03914 | ARMSTRONG BROS TOOL CO |
| 110 | 636D0 | APEX TOOL GROUP, LLC |
| 110 | R1120 | SATAIR A/S |
| 1A805 | 25795 | W. W. GRAINGER, INC. DBA GRAINGER |
| 71-572 | 03914 | ARMSTRONG BROS TOOL CO |
| 71-572 | 08292 | EASCO HAND TOOLS INC DIV DANAHER TOOL GROUP EASCO HAND |
| 71-572 | 636D0 | APEX TOOL GROUP, LLC |
| 71-572 | R1120 | SATAIR A/S |
| 927 | 45225 | SERVICE SOLUTIONS U.S. LLC |
| 927 | Z1U36 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSPTY LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-274-3782
Related Products | NSN 5120-00-274-3782
Technical Data | NSN 5120-00-274-3782
| Characteristic | Specifications |
|---|---|

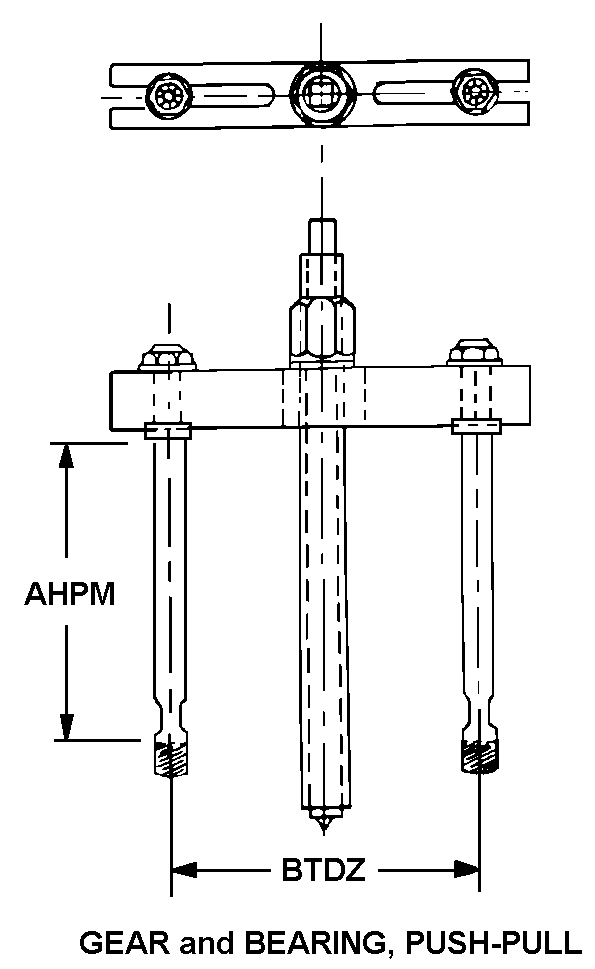

| STYLE DESIGNATOR | BA18 GEAR AND BEARING, PUSH-PULL |
| REACH LENGTH | 8.375 INCHES NOMINAL |
| SPREAD RANGE | 2.125 INCHES MINIMUM AND 7.250 INCHES MAXIMUM |
| SPECIAL FEATURES | 10 TON CAPACITY; 3/4-16 X 12 IN. LG SCREW; TIP OF FORCING SCREW THREADED 5/8-18; SUPPLIED WITH PAIR OF 6 3/4 IN. REACH LEGS AND LEG ENDS |
Restrictions/Controls & Freight Information | NSN 5120-00-274-3782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-274-3782
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
