NSN 5120-00-249-1071 AA2166, A-A-2166, AS4283
Product Details | SOCKET WRENCH HANDLE
5120-00-249-1071 An item having a square external end and designed to fit into the internal end of a wrench socket or attachment and to which force is applied to drive the socket. Excludes torque indicating and other torque controlled items. See also WRENCH, RATCHET.
Part Alternates: AA2166, A-A-2166, AS4283 , AS4283 TY1CL3 , AS4283TY1CL3, B107.10, B107.10 TY1CL3STA, B107.10M, B107.10M TY1CL3ST1, B10710, B10710M, B10710MTY1CL3ST1, B10710TY1CL3STA, GGGW641, GGG-W-641, GGG-W-641 TY3CL3STA, GGGW641TY3CL3STA, 00944161000 , 0738 7001 , 07387001, 10082467, 40181 , 44161, 731923, 73-1923 , 944161, 9-44161 , 5120-00-249-1071, 00-249-1071, 5120002491071, 002491071
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-249-1071 | 03493 ( HANDLE, SOCKET WRENCH ) |

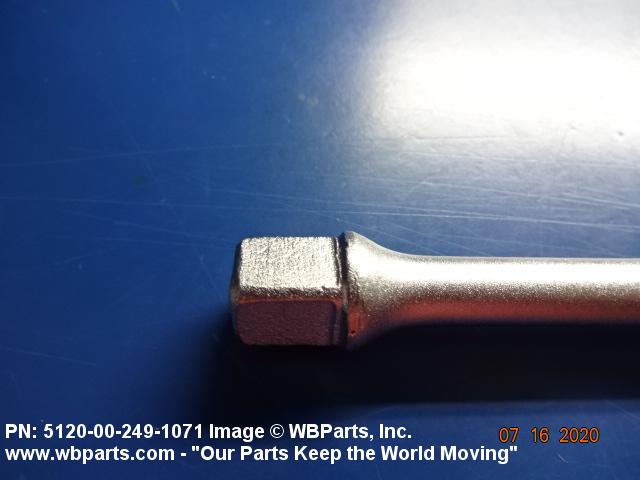

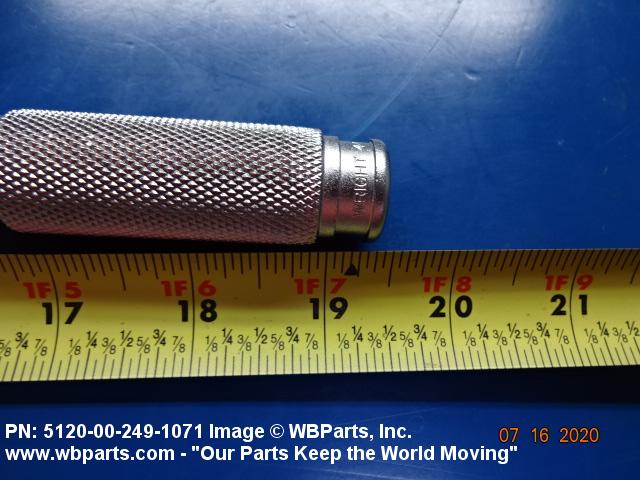

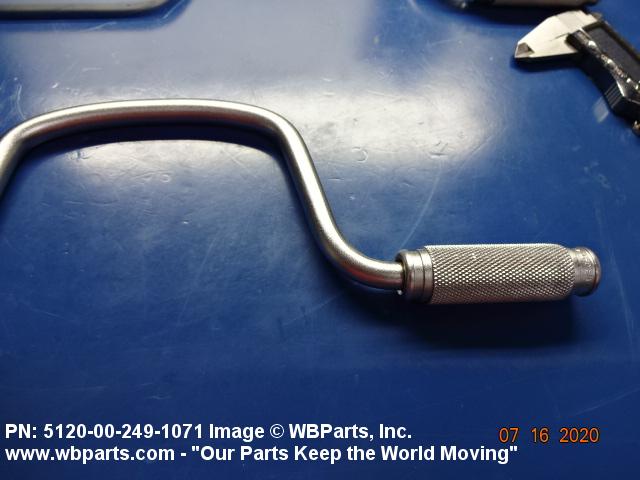

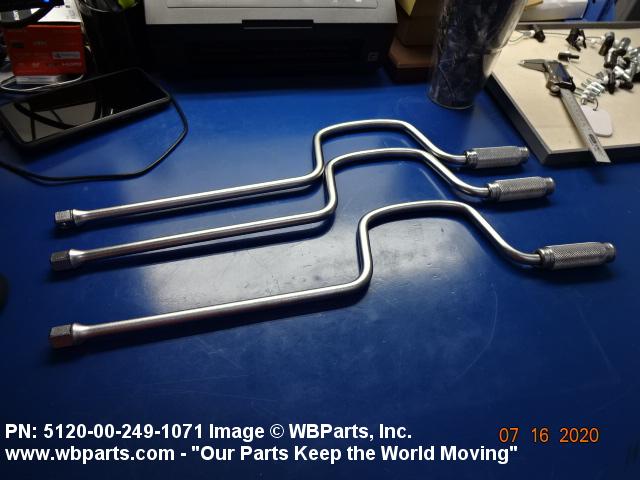

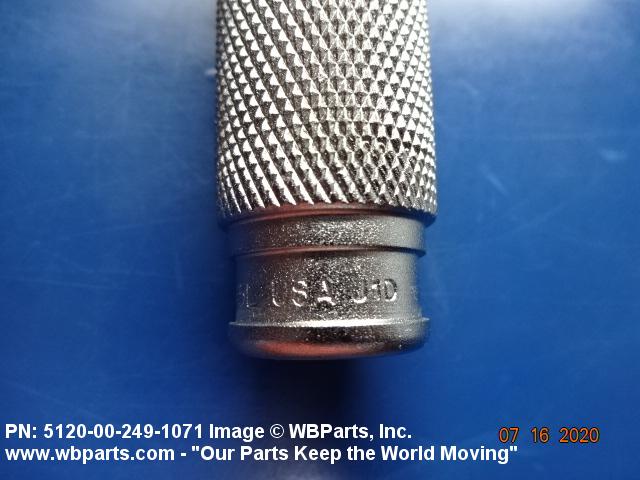

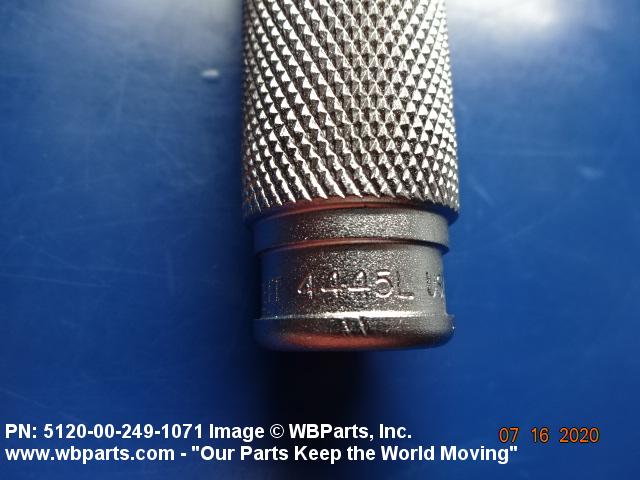

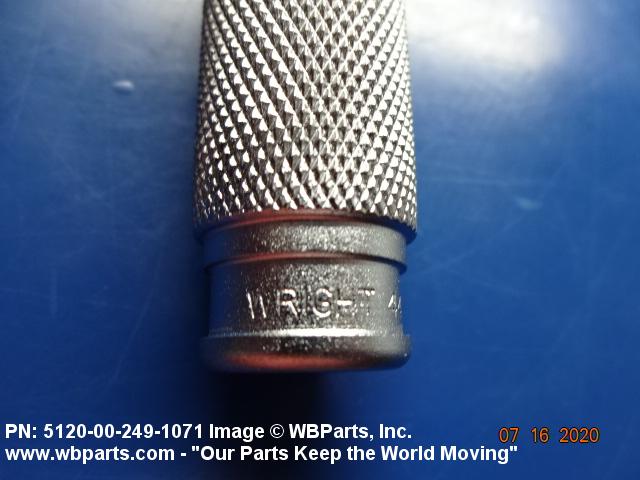

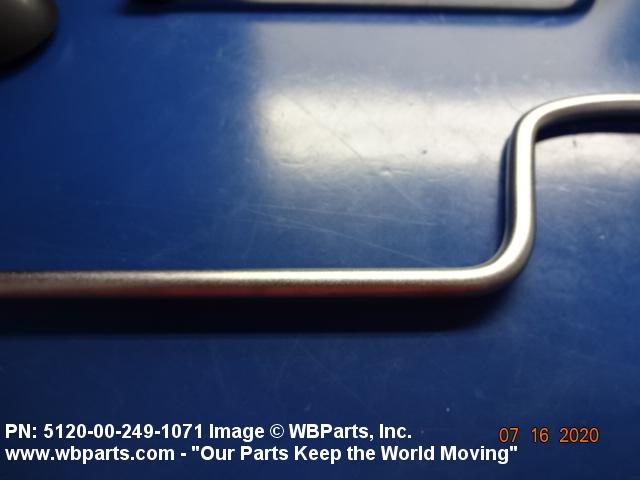

Drawings & Photos | NSN 5120-00-249-1071
Demand History | NSN 5120-00-249-1071
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-249-1071 | 2024-04-99 | 6 | United States |
| GGGW641 | 2023-08-226 | 57 | United States |
| GGGW641 | 2022-11-313 | 2 | United States |
| GGGW641 | 2022-04-97 | 10 | GE |
| B10710M | 2021-09-245 | 1 | IN |
| 5120-00-249-1071 | 2020-10-301 | 27 | US |
| 5120-00-249-1071 | 2020-07-190 | 3 | United States |
| GGGW641 | 2020-05-150 | 2 | United States |
| AS4283 | 2019-12-345 | 17 | US |
| GGGW641 | 2019-07-207 | 1 | US |
| 0738 7001 | 2019-04-114 | 1 | France |
| 5120-00-249-1071 | 2019-04-114 | 1 | MANUAL |
| 5120-00-249-1071 | 2019-03-85 | 42 | United States |
| 5120-00-249-1071 | 2019-03-70 | 1 | France |
| 5120-00-249-1071 | 2019-03-66 | 100 | MANUAL |
| 5120-00-249-1071 | 2019-01-11 | 3 | MANUAL |
| GGGW641 | 2017-10-278 | 2 | SA |
| 5120-00-249-1071 | 2017-09-269 | 20 | US |
| 5120-00-249-1071 | 2015-07-197 | 8 | United States |
| GGGW641 | 2014-11-318 | 1 | Taiwan |
| B107.10 | 2012-12-340 | 28 | United States |
| B107.10M | 2011-06-155 | 2 | Saudi Arabia |
| B10710 | 2010-09-246 | 4 | United States |
| B10710 | 2010-09-246 | 4 | United States |
| 5120-00-249-1071 | 2008-09-262 | 18 | US |
| 5120-00-249-1071 | 2008-09-262 | 18 | US |
| 5120-00-249-1071 | 2008-09-262 | 18 | US |
Cross Reference | NSN 5120-00-249-1071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00944161000 | 53800 | SEARS, ROEBUCK AND CO. DBA SEARS |
| 0738 7001 | ZD484 | J BLACKWOOD & SON LTD |
| 40181 | 2K880 | S K HAND TOOL CORP |
| 44161 | 53800 | SEARS, ROEBUCK AND CO. DBA SEARS |
| 73-1923 | 08292 | EASCO HAND TOOLS INC DIV DANAHER TOOL GROUP EASCO HAND |
| 73-1923 | 636D0 | APEX TOOL GROUP, LLC |
| 9-44161 | 53800 | SEARS, ROEBUCK AND CO. DBA SEARS |
| A-A-2166 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AS4283 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4283 TY1CL3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.10 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.10 TY1CL3STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.10M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.10M TY1CL3ST1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| GGG-W-641 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-641 TY3CL3STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-249-1071
Related Products | NSN 5120-00-249-1071
Technical Data | NSN 5120-00-249-1071
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 81 BRACE WITH SINGLE REVOLVING GRIP |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.10M PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND 1 STYLE |
Restrictions/Controls & Freight Information | NSN 5120-00-249-1071
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-249-1071
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
