NSN 5120-00-248-6684 AA3042, A-A-3042, GGGW646
Product Details | CROWFOOT WRENCH HEAD SOCKET
5120-00-248-6684 A component with an open-wall opening having one end designed to fit into a HEAD, CROWFOOT SOCKET WRENCH and the other end having an internal opening such as hexagonal or 8-point. See also CROWFOOT ATTACHMENT, SOCKET WRENCH.
Part Alternates: AA3042, A-A-3042, GGGW646, GGG-W-646, GGG-W-646 TY2CL1STAFMBPT146, GGGW646TY2CL1STAFMBPT146, 5120-00-248-6684, 00-248-6684, 5120002486684, 002486684
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-248-6684 | 17105 ( SOCKET, CROWFOOT WRENCH HEAD ) |
Drawings & Photos | NSN 5120-00-248-6684
Cross Reference | NSN 5120-00-248-6684
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-248-6684
Technical Data | NSN 5120-00-248-6684
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |

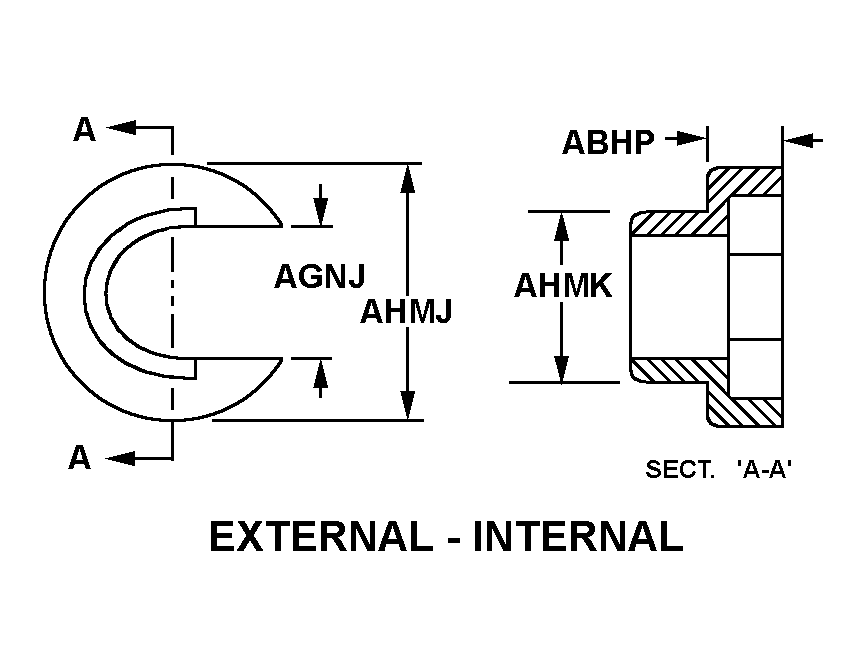

| STYLE DESIGNATOR | 157 EXTERNAL-INTERNAL |
| OVERALL LENGTH | 1.301 INCHES NOMINAL |
| OPENING DIAMETER | 2.812 INCHES MINIMUM |
| WRENCHING END OUTSIDE DIAMETER | 3.869 INCHES NOMINAL |
| DRIVE END OUTSIDE DIAMETER | 3.176 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 3.281 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 CLASS AND A STYLE AND B FORM AND 146 PART |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-646 |
Restrictions/Controls & Freight Information | NSN 5120-00-248-6684
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-248-6684
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
