NSN 5120-00-243-2946 GGGH86, GGG-H-86, GGG-H-86 TY11CL1STB
Product Details | HAND HAMMER
5120-00-243-2946 A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified).
Part Alternates: GGGH86, GGG-H-86, GGG-H-86 TY11CL1STB, GGGH86TY11CL1STB, 12421, 5120-00-243-2946, 00-243-2946, 5120002432946, 002432946
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-243-2946 | 05970 ( HAMMER, HAND ) |
Drawings & Photos | NSN 5120-00-243-2946
Demand History | NSN 5120-00-243-2946
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGH86 | 2009-09-246 | 1 | United Kingdom |
| GGGH86 | 2009-05-140 | 75 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-243-2946
Technical Data | NSN 5120-00-243-2946
| Characteristic | Specifications |
|---|---|

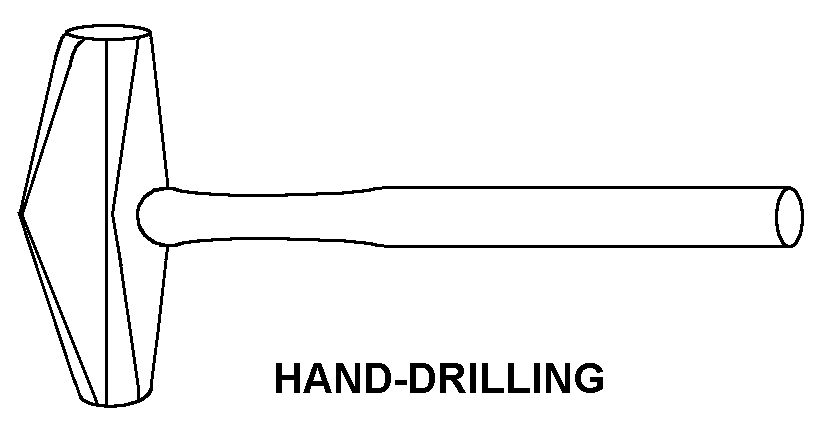

| STYLE DESIGNATOR | 33 HAND-DRILLING |
| HEAD WEIGHT | 3.000 POUNDS |
| HANDLE MATERIAL | WOOD |
| HEAD LENGTH | 4.250 INCHES NOMINAL |
| HANDLE LENGTH | 10.500 INCHES NOMINAL |
| SPECIAL FEATURES | HICKORY HANDLE |
| NONDEFINITIVE SPEC/STD DATA | 11 TYPE AND 1 CLASS AND B STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-H-86 |
Restrictions/Controls & Freight Information | NSN 5120-00-243-2946
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-243-2946
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
