NSN 5120-00-227-7416 GGGW641, GGG-W-641, GGG-W-641 TY1CL1
Product Details | SOCKET WRENCH
5120-00-227-7416 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Part Alternates: GGGW641, GGG-W-641, GGG-W-641 TY1CL1, GGGW641TY1CL1, 5120-00-227-7416, 00-227-7416, 5120002277416, 002277416
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-227-7416 | 03520 ( WRENCH, SOCKET ) |
Drawings & Photos | NSN 5120-00-227-7416
Demand History | NSN 5120-00-227-7416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGW641 | 2023-08-226 | 57 | United States |
| GGGW641 | 2022-11-313 | 2 | United States |
| GGGW641 | 2022-04-97 | 10 | GE |
| GGGW641 | 2020-05-150 | 2 | United States |
| GGGW641 | 2019-07-207 | 1 | US |
| GGGW641 | 2017-10-278 | 2 | SA |
| GGGW641 | 2014-11-318 | 1 | Taiwan |
| 5120-00-227-7416 | 2010-11-314 | 2 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-227-7416
Technical Data | NSN 5120-00-227-7416
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |

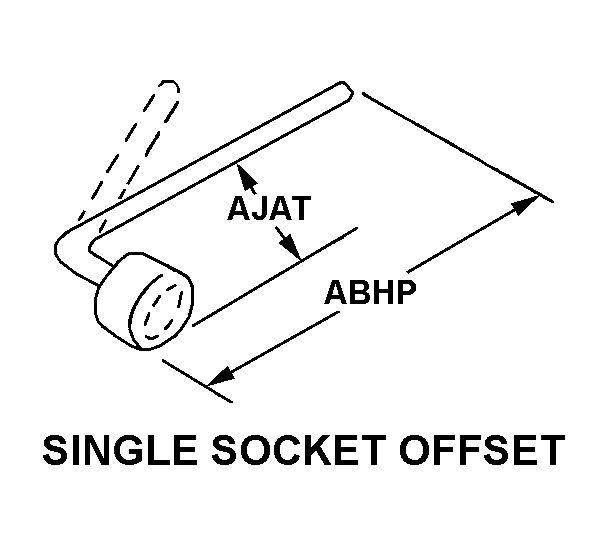

| STYLE DESIGNATOR | 167 SINGLE SOCKET OFFSET |
| OVERALL LENGTH | 6.250 INCHES MINIMUM |
| OFFSET HEIGHT | 1.500 INCHES MINIMUM |
| WRENCHING SURFACE SIZE | 0.631 INCHES MINIMUM AND 0.639 INCHES MAXIMUM SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-641 |
Restrictions/Controls & Freight Information | NSN 5120-00-227-7416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-227-7416
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
