NSN 5120-00-224-9482 GGGW201, GGG-W-201, GGG-W-201 TY2
Product Details | JOINT BREAKING WEDGE
5120-00-224-9482 Refer to Reference Drawing Group A before using item name.
Part Alternates: GGGW201, GGG-W-201, GGG-W-201 TY2, GGGW201TY2, 5120-00-224-9482, 00-224-9482, 5120002249482, 002249482
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-224-9482 | 18462 ( WEDGE, JOINT BREAKING ) |
Drawings & Photos | NSN 5120-00-224-9482
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-224-9482
Related Products | NSN 5120-00-224-9482
Technical Data | NSN 5120-00-224-9482
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

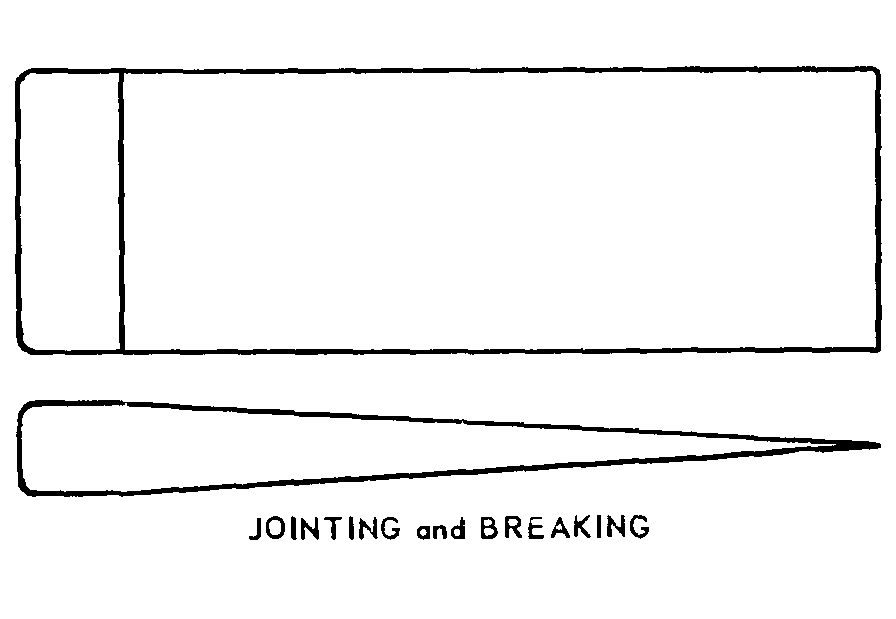

| WEDGE STYLE DESIGNATOR | A9 JOINTING AND BREAKING |
| LENGTH | 10.000 INCHES NOMINAL |
| FEATURES PROVIDED | NONSPARKING |
| SPECIAL FEATURES | NONMAGNETIC |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-201 |
Restrictions/Controls & Freight Information | NSN 5120-00-224-9482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-00-224-9482
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
