NSN 5120-00-224-1541 GGGP471, GGG-P-471, GGG-P-471 TY14CL1
Product Details | PLIERS
5120-00-224-1541 Refer to Reference Drawing Group A. See also PLIERS (as modified).20313850059Surface Use Explosive Ordnance Disposal Tools and Equipment51100029Hand Tools, Edged, Nonpowered51200032Hand Tools, Nonedged, Nonpowered
Part Alternates: GGGP471, GGG-P-471, GGG-P-471 TY14CL1, GGGP471TY14CL1, 2241541, 224-1541, 36Z, 5120-00-224-1541, 00-224-1541, 5120002241541, 002241541
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-224-1541 | 03978 ( PLIERS ) |
Drawings & Photos | NSN 5120-00-224-1541
Demand History | NSN 5120-00-224-1541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2241541 | 2018-03-08 | 2 | US |
| 5120-00-224-1541 | 2018-02-02 | 2 | United States |
| 5120-00-224-1541 | 2013-08-22 | 1 | MANUAL |
| 5120-00-224-1541 | 2012-03-23 | 1 | US |
| 5120-00-224-1541 | 2011-12-01 | 6 | United States |
Cross Reference | NSN 5120-00-224-1541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 224-1541 | 7L527 | KAUFMAN COMPANY, INC. |
| 36Z | 1AS28 | STRIDE TOOL INC |
| 36Z | 85688 | STRIDE TOOL INC. DBA STRIDE MILBAR COMPANY |
| 5120-00-224-1541 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| GGG-P-471 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-P-471 TY14CL1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-224-1541
Technical Data | NSN 5120-00-224-1541
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 6.500 INCHES NOMINAL |

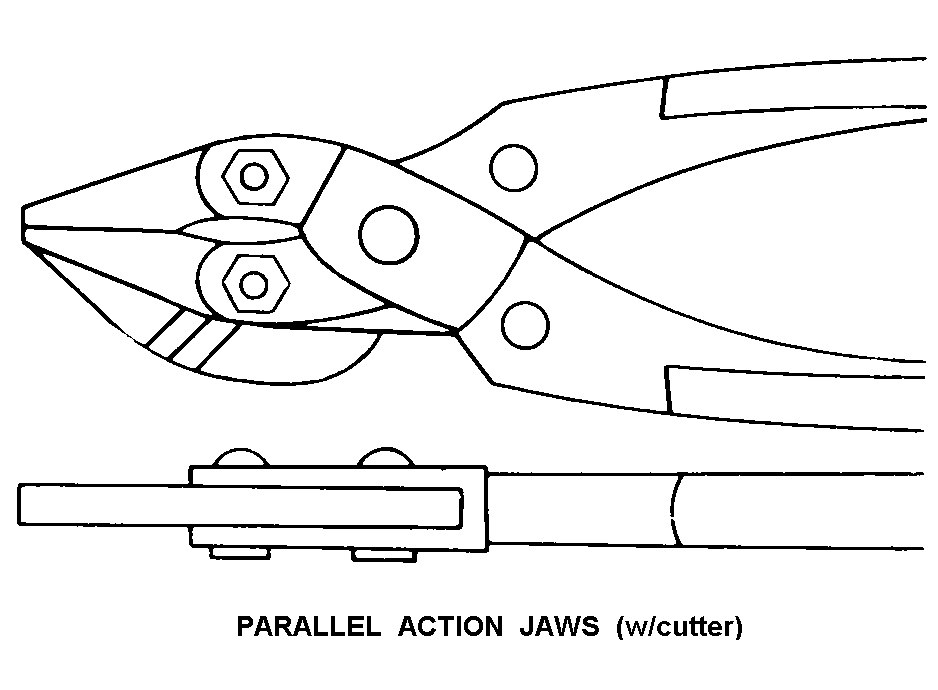

| PLIERS STYLE DESIGNATOR | A17 PARALLEL ACTION JAWS |
| INSULATED HANDLE | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 5120-00-224-1541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
