Product Details | WOOD CAULKING IRON

5120-00-222-3250 Refer to Reference Drawing Group A before using item name. See also CAULKING TOOL, HAND; HAWSING IRON and YARNING IRON.

Part Alternates: GGGI671, GGG-I-671, GGG-I-671 TY10, GGGI671TY10, 8610L, 86-10L, 5120-00-222-3250, 00-222-3250, 5120002223250, 002223250

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-222-3250

Drawings & Photos | NSN 5120-00-222-3250


Cross Reference | NSN 5120-00-222-3250

Part Number Cage Code Manufacturer
86-10L 58005 STORTZ JOHN AND SON INCORPORATED
GGG-I-671 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GGG-I-671 TY10 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-222-3250

Technical Data | NSN 5120-00-222-3250

Characteristic Specifications

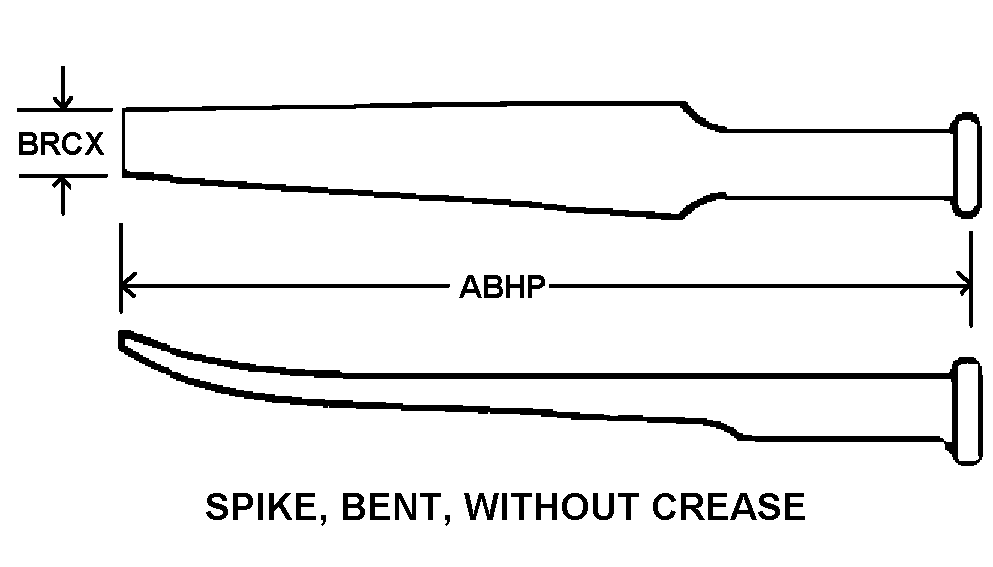

STYLE DESIGNATOR AH10 SPIKE, BENT, WITHOUT CREASE
OVERALL LENGTH 8.500 INCHES NOMINAL
WORKING END WIDTH 0.562 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5120-00-222-3250

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5120-00-222-3250

Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
B
EA : Each
