NSN 5120-00-177-7028 MS332322, MS3323-22, M81969/2-01
Product Details | ELECTRICAL CONTACT INSERTER
5120-00-177-7028 A hand tool designed for installing a CONTACT, ELECTRICAL on various types of electrical/electronic components.
Part Alternates: MS332322, MS3323-22, M81969/2-01, M81969201, ATML0201, H23107, DAK12622, DAK126-22, MILI81969, MIL-I-81969, VG95212T33M81969201, 294278, 294-278, 620881, 7904446-00, 87100003, 8710-0003, 5120-00-177-7028, 00-177-7028, 5120001777028, 001777028, 790444600
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 13 MAY 1970 | 00-177-7028 | 35965 ( INSERTER, ELECTRICAL CONTACT ) |

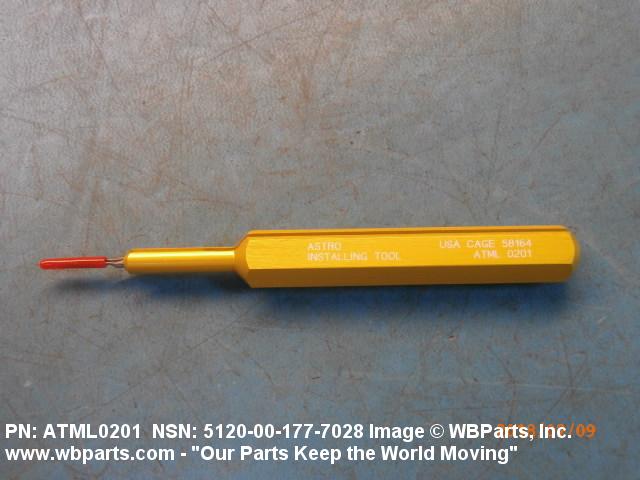

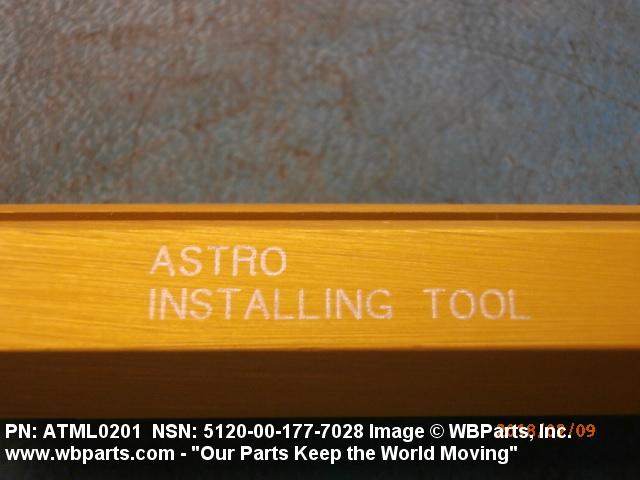

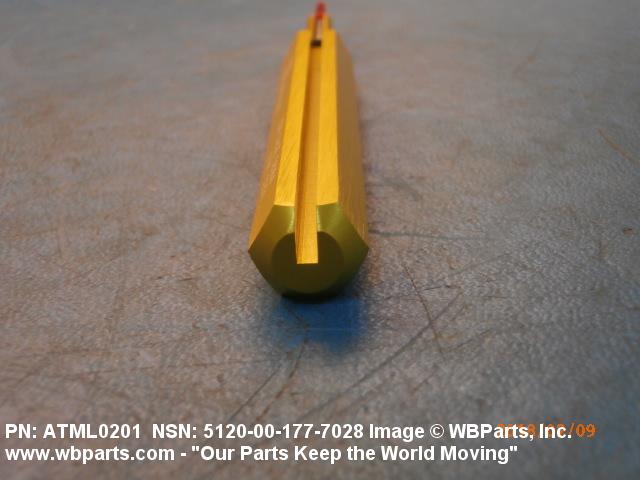

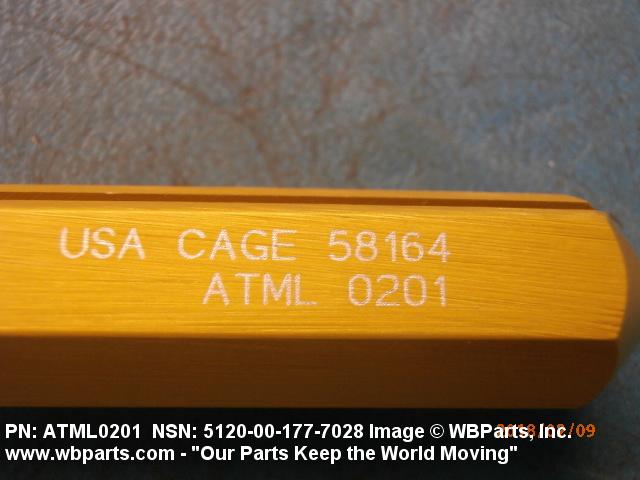

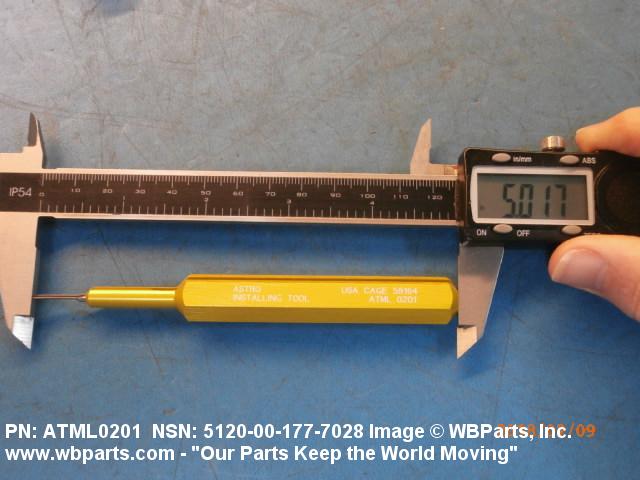

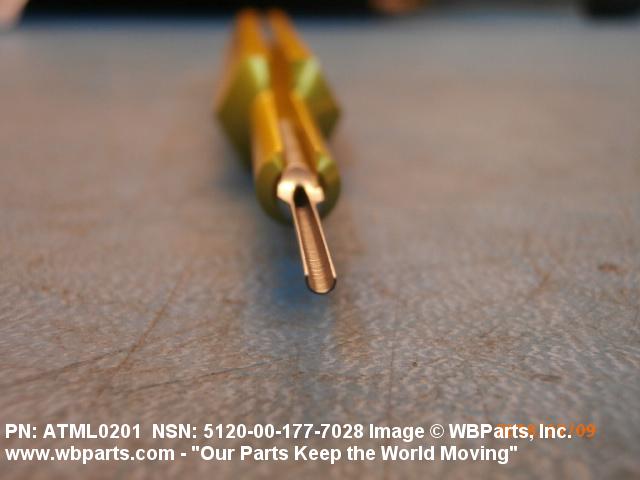

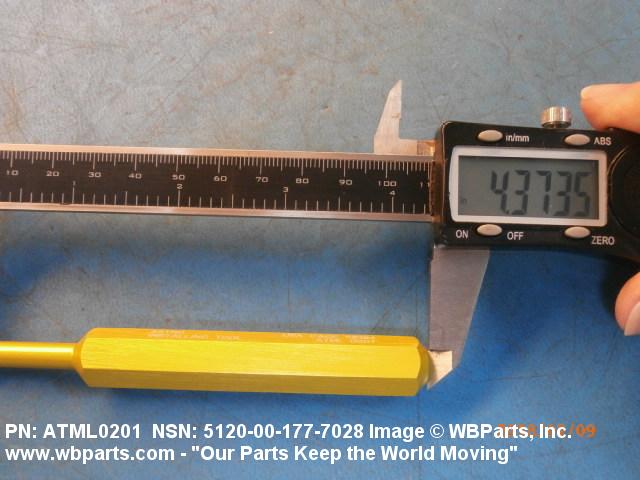

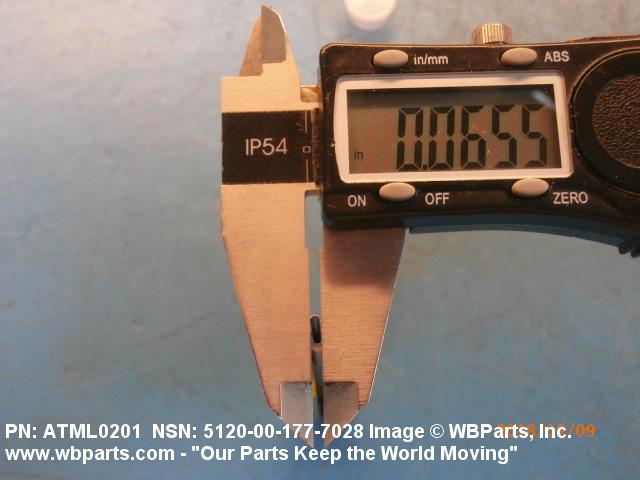

Drawings & Photos | NSN 5120-00-177-7028
Demand History | NSN 5120-00-177-7028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-177-7028 | 2019-10-291 | 1 | TW |
| 5120-00-177-7028 | 2018-08-229 | 1 | TW |
| 5120-00-177-7028 | 2018-01-22 | 3 | us |
| 5120-00-177-7028 | 2017-11-310 | 20 | SG |
Cross Reference | NSN 5120-00-177-7028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 294-278 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 294-278 | D8311 | AMPHENOL-TUCHEL ELECTRONICS GMBH |
| 620881 | C1798 | AEROMARITIME SYSTEMBAU GMBH |
| 7904446-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8710-0003 | 33783 | BR COMMUNICATIONS INC |
| ATML0201 | 58164 | ASTRO TOOL CORP. |
| DAK126-22 | 11851 | DANIELS MANUFACTURING CORPORATION |
| DAK126-22 | C1129 | FCT-ELECTRONIC GMBH |
| DAK126-22 | F7391 | OCETA |
| H23107 | K0967 | MBDA UK LTD |
| M81969/2-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-81969 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3323-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VG95212T33+M81969/2-01 | D9477 | BUNDESAMT FUER AUSRUESTUNG, |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-177-7028
Related Products | NSN 5120-00-177-7028
Technical Data | NSN 5120-00-177-7028
| Characteristic | Specifications |
|---|---|
| CONTACT SIZE FOR WHICH DESIGNED | NO. 22 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-81969 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81969/2-01 |
Restrictions/Controls & Freight Information | NSN 5120-00-177-7028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | Q | 70 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-177-7028
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | AQ | TURBO PROPENGINES(TF30) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
