NSN 5120-00-020-5622 S0E1316, S0E13-16, SOE-13/16
Product Details | TORQUE WRENCH ADAPTER
5120-00-020-5622 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: S0E1316, S0E13-16, SOE-13/16, SOE1316, OE-13/16, OE1316, 819009, 8190092, 819009-2, 5120-00-020-5622, 00-020-5622, 5120000205622, 000205622
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-020-5622 | 60023 ( ADAPTER, TORQUE WRENCH ) |
Drawings & Photos | NSN 5120-00-020-5622
Cross Reference | NSN 5120-00-020-5622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 819009 | 64334 | RYESON CORPORATION DBA STURTEVANT RICHMONT TORQUE |
| 819009-2 | 64334 | RYESON CORPORATION DBA STURTEVANT RICHMONT TORQUE |
| OE-13/16 | 64334 | RYESON CORPORATION DBA STURTEVANT RICHMONT TORQUE |
| S0E13-16 | K2283 | PROBOTEC LTD |
| SOE-13/16 | 64334 | RYESON CORPORATION DBA STURTEVANT RICHMONT TORQUE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-020-5622
Related Products | NSN 5120-00-020-5622
Technical Data | NSN 5120-00-020-5622
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

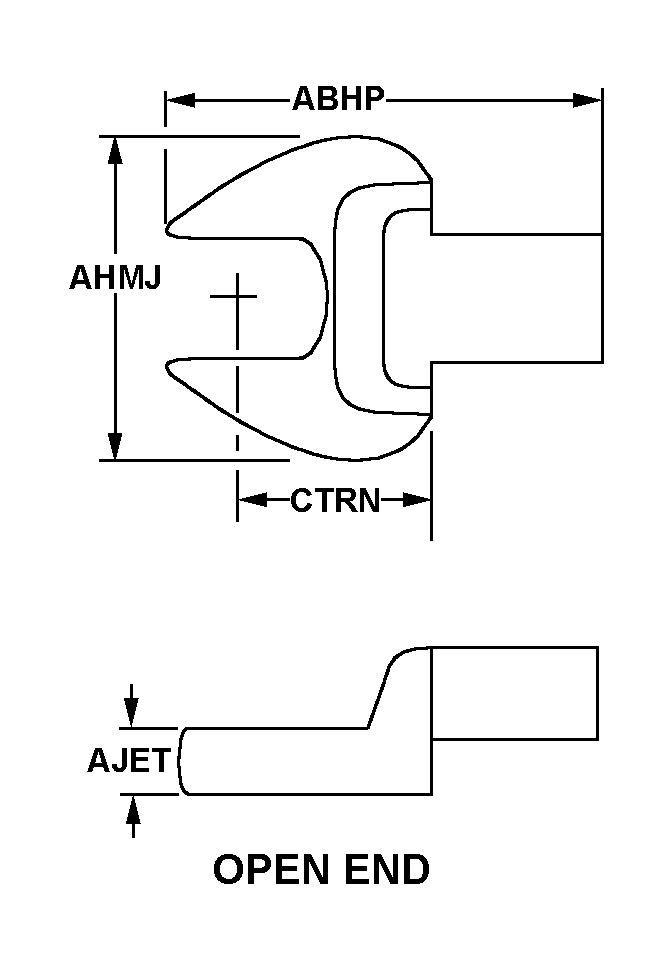

| STYLE DESIGNATOR | 30A OPEN END |
| WRENCHING END OUTSIDE DIAMETER | 1.844 INCHES NOMINAL |
| DRIVE END OUTSIDE DIAMETER | 1.0000 INCHES NOMINAL |
| WRENCHING END HEAD THICKNESS | 0.812 INCHES NOMINAL |
| HEAD ANGLE | 15.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.812 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | OVAL SINGLE END INTERNAL |
| DRIVE END SHAPE | DOVETAIL SINGLE END INTERNAL |
| TORQUE CAPACITY | 1250.0 INCH-POUNDS MAXIMUM |
| III END ITEM IDENTIFICATION | STURTEVANT-RICHMONT TYPE CCM AND LTC TORQUE WRENCHES |
| MANUFACTURERS CODE | 64334 |
| DESIGN CONTROL REFERENCE | OE-13/16 |
Restrictions/Controls & Freight Information | NSN 5120-00-020-5622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
