NSN 5110-01-039-9486 AA2430, A-A-2430, 36723
Product Details | HAND FILE
5110-01-039-9486 Excludes RASP, HAND.
Part Alternates: AA2430, A-A-2430, 36723, 5110-01-039-9486, 01-039-9486, 5110010399486, 010399486
Hand Tools | Hand Tools, Edged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 28 APR 1977 | 01-039-9486 | 01027 ( FILE, HAND ) |
Drawings & Photos | NSN 5110-01-039-9486
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5110-01-039-9486
Related Products | NSN 5110-01-039-9486
Technical Data | NSN 5110-01-039-9486
| Characteristic | Specifications |
|---|---|

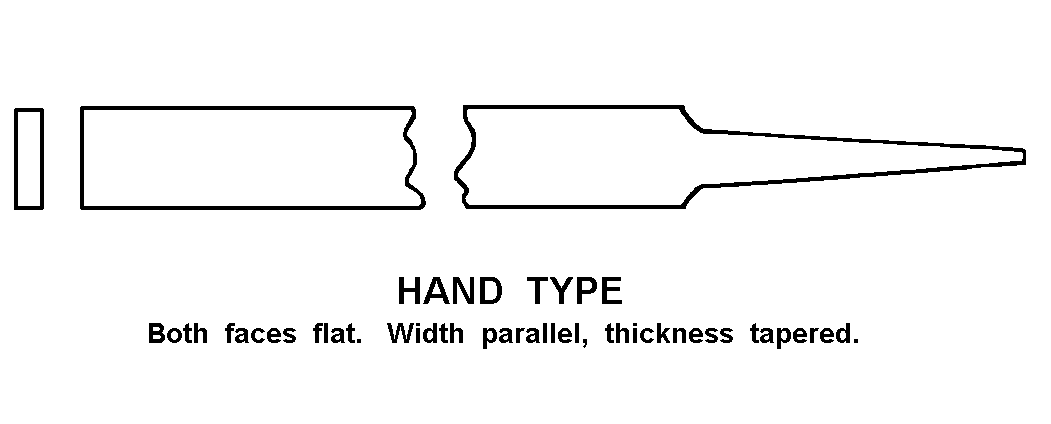

| STYLE DESIGNATOR | B12 HAND TYPE |
| PATTERN TYPE | SWISS |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| LARGEST DIAMETER | 0.531 INCHES |
| FACE CUT TYPE | DOUBLE CUT, NO. 2 CUT |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-2430 |
Restrictions/Controls & Freight Information | NSN 5110-01-039-9486
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
