NSN 5110-00-293-1197 002931197
Product Details | HAND MASONRY DRILL
5110-00-293-1197 A hand driven tool for drilling holes in brick, tile, concrete, stone and other types of masonry.
Part Alternates: 002931197
Hand Tools | Hand Tools, Edged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 00-293-1197 | 15870 ( DRILL, MASONRY, HAND ) |
Drawings & Photos | NSN 5110-00-293-1197
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5110-00-293-1197
Related Products | NSN 5110-00-293-1197
Technical Data | NSN 5110-00-293-1197
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 9255 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |
| CUTTING END STYLE | 54 STAR MASONRY HAND |
| FLUTE LENGTH | 1.750 INCHES NOMINAL |

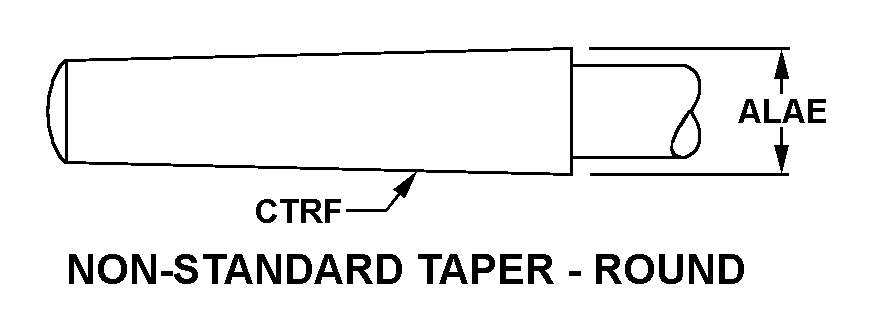

| SHANK STYLE | 78 NON-STANDARD TAPER-ROUND |
| SHANK LARGE END DIAMETER | 0.372 INCHES NOMINAL |
| SHANK TAPER | 1.000 INCHES PER FOOT NOMINAL |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.2500 INCHES |
| SPECIAL FEATURES | 0.300 IN. NOM DIA SMALL END OF SHANK |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-2556 |
Restrictions/Controls & Freight Information | NSN 5110-00-293-1197
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
