Product Details | HAND CABLE STRIPPER

5110-00-238-7696 A hand held, hand operated item specifically designed to strip insulation and outer coverings, such as lead or plastic sheathing from electric conductors. To prevent damage to the underlying insulation, it shall have an adjustable blade for proper depth of cut or a nonadjustable, hook type blade with a blunt nose provided in handle. See also STRIPPER, WIRE HAND.

Part Alternates: CS-1-3/4, CS134, GGGS665, GGG-S-665, GGG-S-665 TY1, GGGS665TY1, PD5110002387696, PD5110-00-238-7696, TL583U, X427, 7998000, 79980-00, 5110-00-238-7696, 00-238-7696, 5110002387696, 002387696

Hand Tools | Hand Tools, Edged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-238-7696

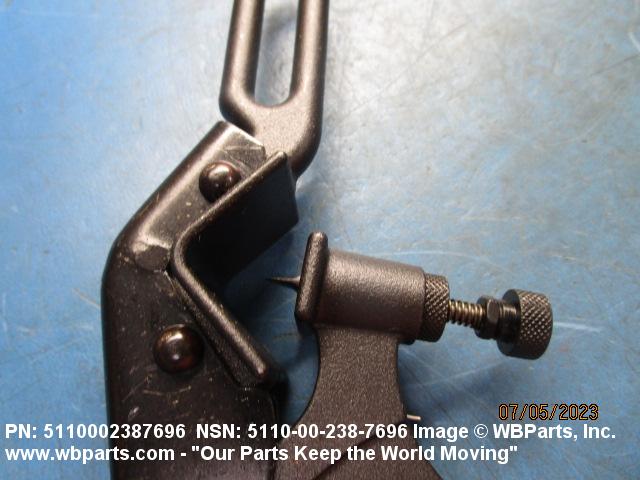

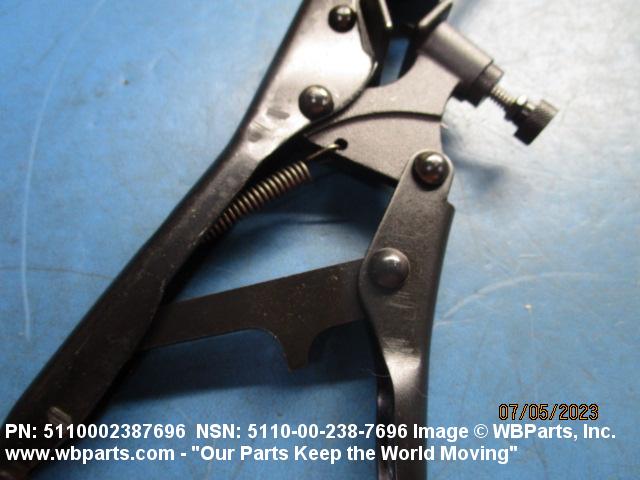

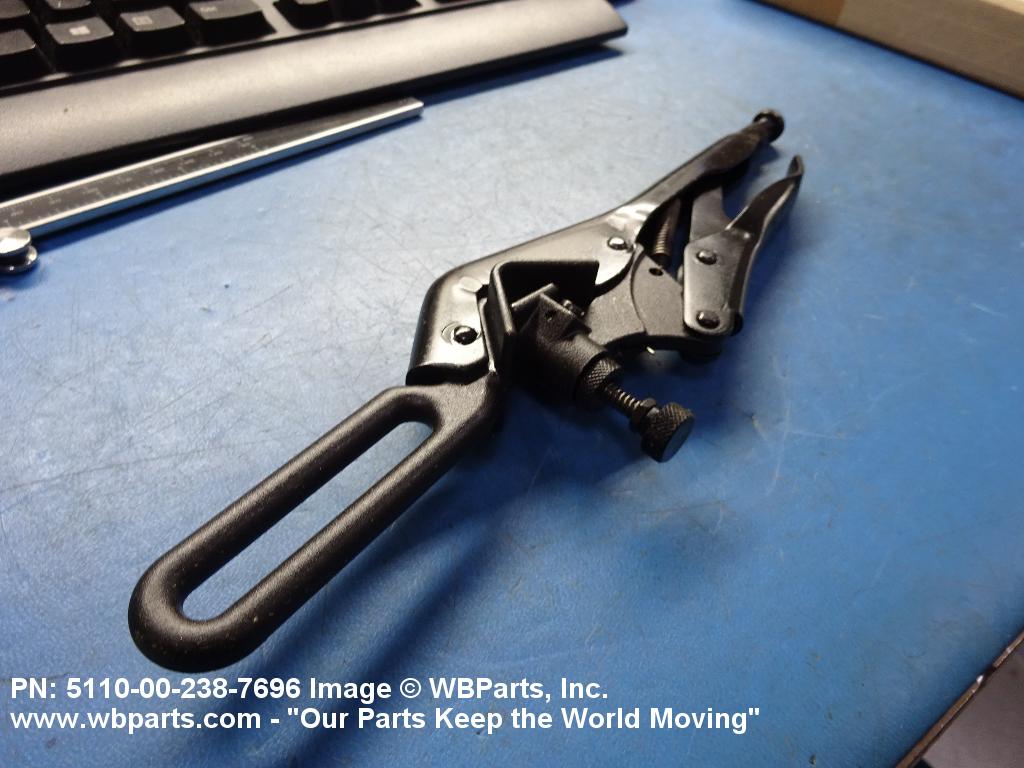

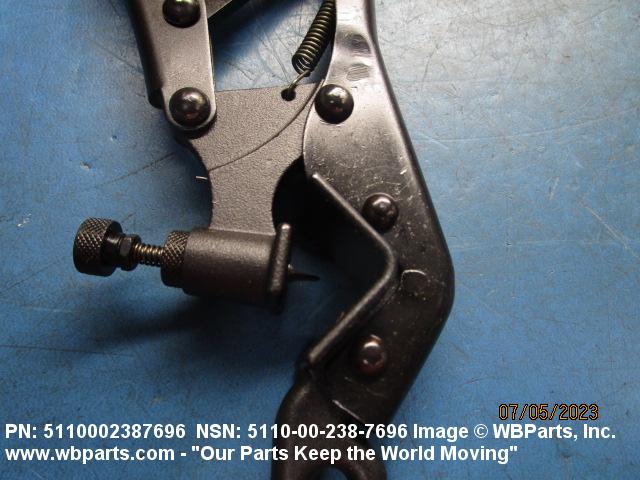

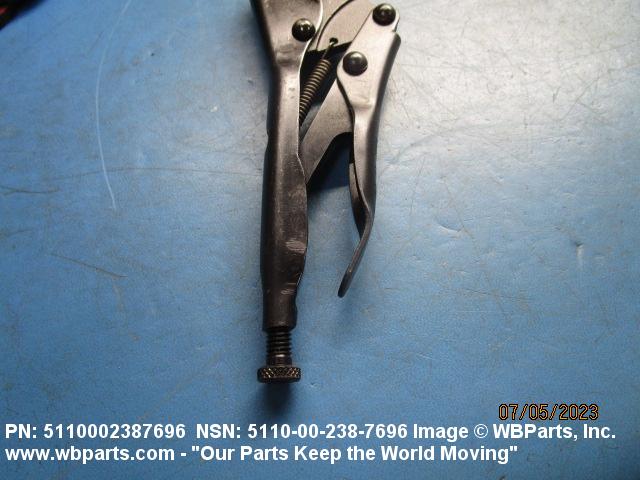

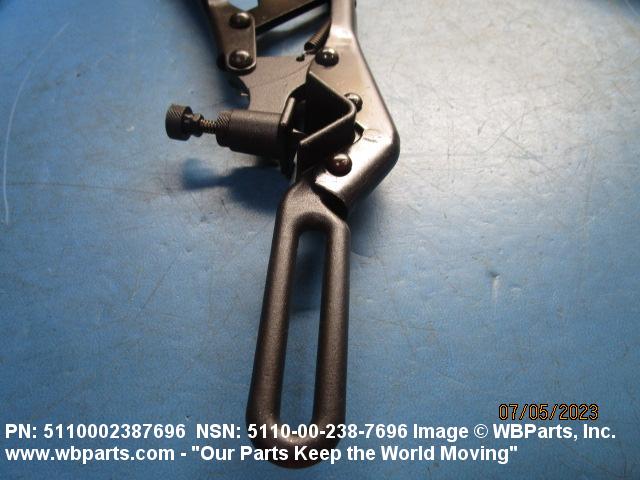

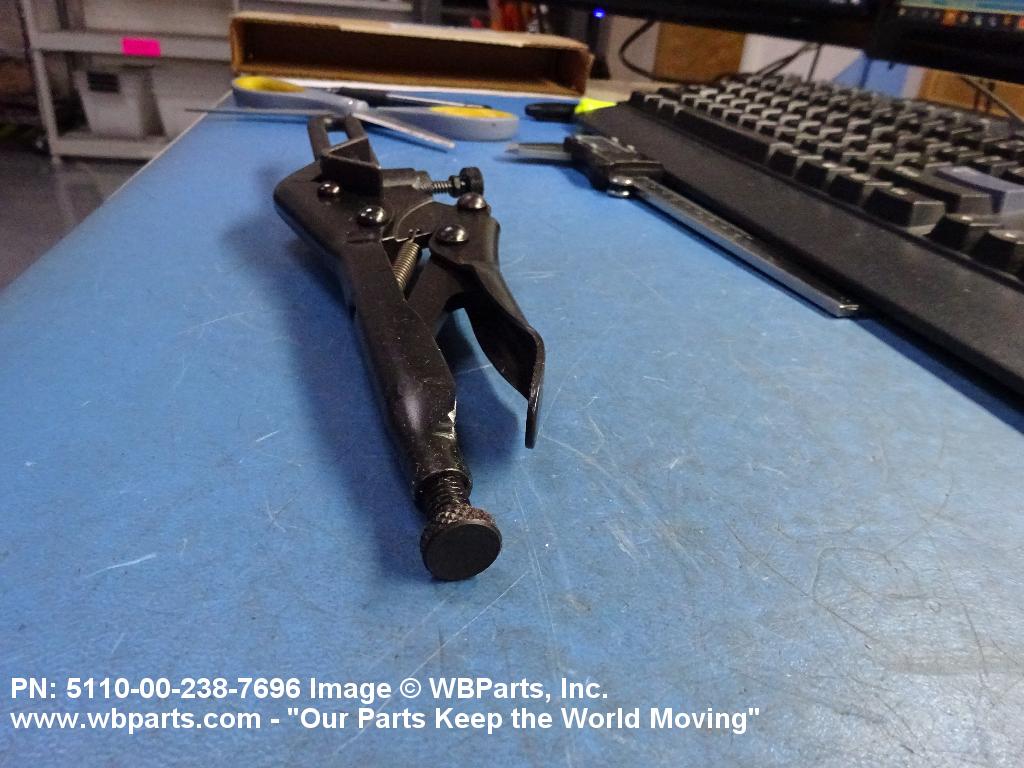

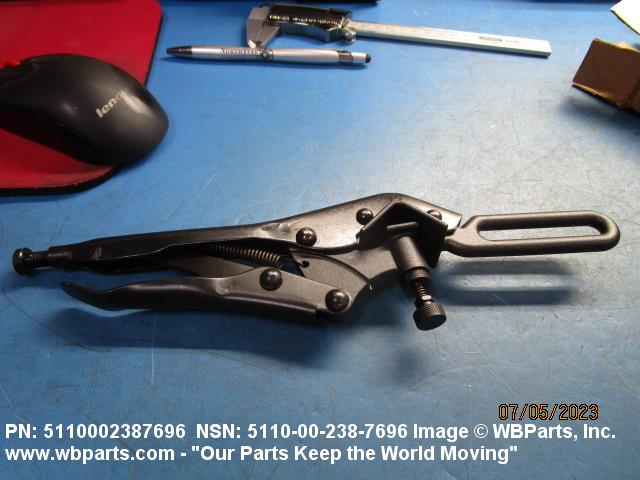

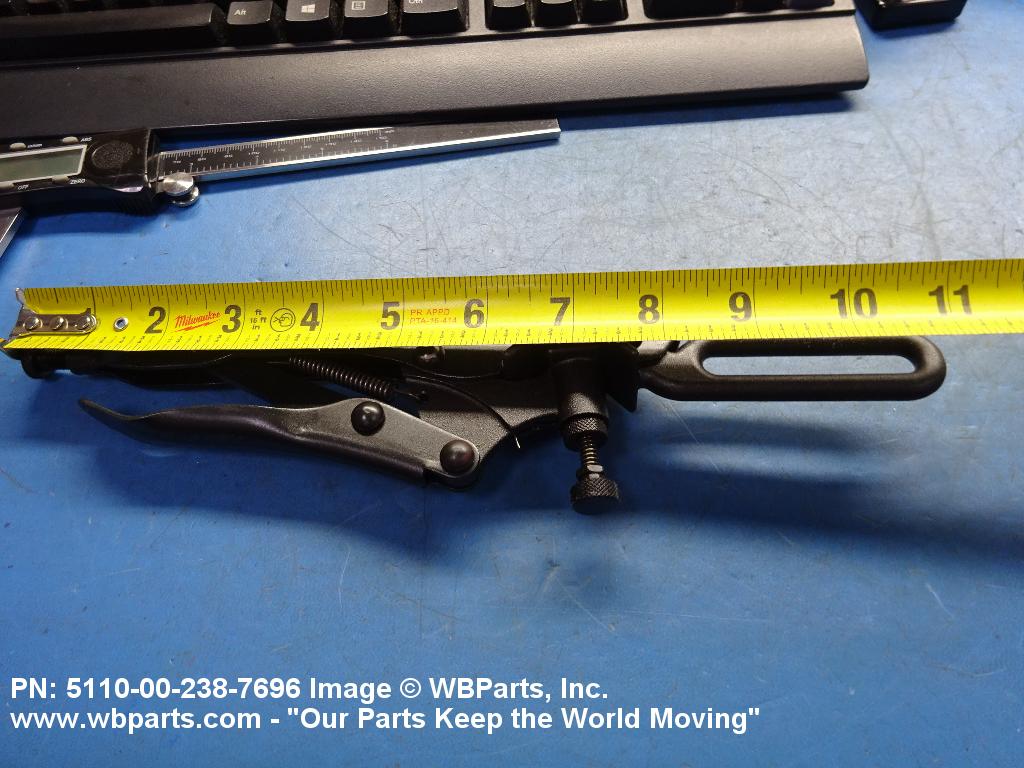

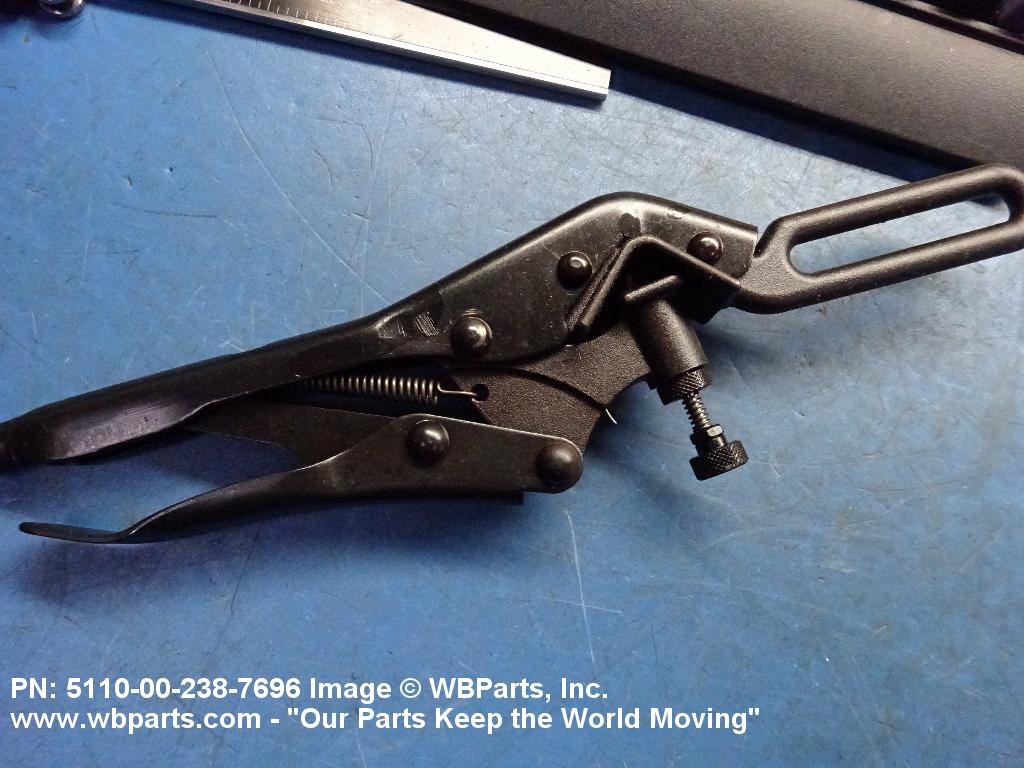

Drawings & Photos | NSN 5110-00-238-7696


Demand History | NSN 5110-00-238-7696

Part Number Request Date QTY Origin
5110-00-238-7696 2024-11-313 1 United States
5110-00-238-7696 2023-08-217 1 GU
5110-00-238-7696 2023-06-172 1 us
5110-00-238-7696 2022-11-305 12 US
5110-00-238-7696 2022-08-236 2 United States
5110-00-238-7696 2022-08-221 2 us
5110-00-238-7696 2022-05-140 12 US
5110-00-238-7696 2020-07-209 1 United States
5110-00-238-7696 2019-09-248 4 MANUAL
5110-00-238-7696 2019-08-226 2 US
5110-00-238-7696 2013-01-17 1 MANUAL

Cross Reference | NSN 5110-00-238-7696

Part Number Cage Code Manufacturer
79980-00 30106 UTICA TOOL CO INC
CS-1-3/4 40496 KELTEK SPECIALTY TOOL DESIGN & MANUFACTURE, INC
GGG-S-665 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GGG-S-665 TY1 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
PD5110-00-238-7696 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
TL583U 80058 JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
X427 30106 UTICA TOOL CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5110-00-238-7696

Technical Data | NSN 5110-00-238-7696

Characteristic Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION ADJUSTABLE TOGGLE HANDLE TYPE;ADJUSTABLE BLADE;3/8 TO 1 5/8 IN. DIA.STRIPPING CAPACITY RANGE
NONDEFINITIVE SPEC/STD DATA 1 TYPE

Restrictions/Controls & Freight Information | NSN 5110-00-238-7696

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 030310 CABLE OR WIRE
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 743 unknown
Originating Activity Code 48 Federal Aviation Administration
Oklahoma City, OK 73125
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5110-00-238-7696

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
V
FT : Foot
