NSN 4940-01-499-8551 MODEL P, MODELP, 94066008
Product Details | PRESSURE JET STEAM CLEANER
4940-01-499-8551 A unit designed to remove surface deposits of foreign materials by means of a forced stream of steam and detergent or water. Excludes CLEANER, STEAM, PRESSURE JET, TRAILER MOUNTED; DISHWASHING MACHINE, COMMERCIAL; DISHWASHING MACHINE, HOUSEHOLD; and CLEANER, PRESSURE, SOLVENT-WATER.20249400063Miscellaneous Maintenance and Repair Shop Specialized Equipment72900065Miscellaneous Household and Commercial Furnishings and Appliances
Part Alternates: MODEL P, MODELP, 94066008, 9406-6008 , 4940-01-499-8551, 01-499-8551, 4940014998551, 014998551
Maintenance and Repair Shop Equipment | Miscellaneous Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 06 AUG 2002 | 01-499-8551 | 10239 ( CLEANER, STEAM, PRESSURE JET ) |
Drawings & Photos | NSN 4940-01-499-8551
Demand History | NSN 4940-01-499-8551
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4940-01-499-8551 | 2017-08-22 | 1 | DIBBS |
| 4940-01-499-8551 | 2014-08-20 | 1 | DIBBS |
| 4940-01-499-8551 | 2014-03-17 | 1 | DIBBS |
| 4940-01-499-8551 | 2014-03-02 | 1 | DIBBS |
| 4940-01-499-8551 | 2012-10-28 | 3 | DIBBS |
| 4940-01-499-8551 | 2012-06-27 | 1 | BS |
| 4940-01-499-8551 | 2012-02-12 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4940-01-499-8551
Technical Data | NSN 4940-01-499-8551
| Characteristic | Specifications |
|---|---|
| STEAM GENERATOR | NOT INCLUDED |
| OUTSIDE STEAM SOURCE | NOT REQUIRED |
| OUTSIDE WATER SOURCE | NOT REQUIRED |
| MAXIMUM CLEANING SOLUTION JET PRESSURE RATING | NOT RATED |
| MAXIMUM LIQUID JET PRESSURE RATING | NOT RATED |
| POWER SOURCE | ELECTRIC MOTOR |
| POWER SOURCE HORSEPOWER RATING | 1.5 |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 110.0 115.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PUMP QUANTITY | 1 |
| MOUNTING TYPE | BASE OR WHEEL |
| WHEEL QUANTITY | 2 |

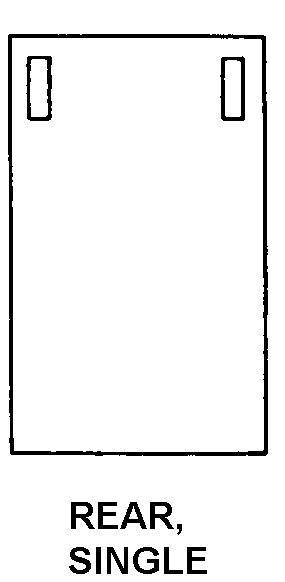

| WHEEL ARRANGEMENT STYLE | 3 REAR, SINGLE |
| SPECIAL FEATURES | WORKING PRESSURE 600 PSI RINSE, 300 PSI WASH; STURDY CART W/10IN. WHEELS; CYLINDER BODY, STAINLESS STEEL; CYLINDER HEAD, CHROME PLATED BRONZE CAST; NUMBER OF CYLINDERS, 3; PRESSURE HOSE, 40FT. LONG, RATED 1125 PSI; VALVES, FLAT POPPET TYPE; RATED CAPACITY, 3 GAL. PER MINUTE |
| III TYPE/MODEL DESIGNATION | MODEL P |
| III EXTERIOR CONTAINER QUANTITY | 2 |
| III END ITEM IDENTIFICATION | PORTA-WASHER MODEL P, ECOLAB P/N 9406-6008 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CLEANER,STEAM,PRESSURE |
Restrictions/Controls & Freight Information | NSN 4940-01-499-8551
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177680 | SPRAYER/STEAM/ETC CLEAN OUTFIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | T | Household goods. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4940-01-499-8551
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
