NSN 4940-00-977-9908 GS500, MILC4036, MIL-C-4036
Product Details | TRAILER MOUNTED PRESSURE JET STEAM CLEANER
4940-00-977-9908 A unit designed to remove surface deposits of foreign materials by means of a forced stream of steam and detergent or water. Excludes CLEANER, STEAM, PRESSURE JET; DISHWASHING MACHINE, COMMERCIAL; DISHWASHING MACHINE, HOUSEHOLD; and CLEANER, PRESSURE, SOLVENT-WATER
Part Alternates: GS500, MILC4036, MIL-C-4036, 4940-00-977-9908, 00-977-9908, 4940009779908, 009779908
Maintenance and Repair Shop Equipment | Miscellaneous Maintenance and Repair Shop Specialized Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
49 | 07 OCT 1966 | 00-977-9908 | 19228 ( CLEANER, STEAM, PRESSURE JET, TRAILER MOUNTED ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4940-00-977-9908
Related Products | NSN 4940-00-977-9908
Technical Data | NSN 4940-00-977-9908
Characteristic | Specifications |
---|---|
STEAM GENERATOR | INCLUDED |
OUTSIDE STEAM SOURCE | NOT REQUIRED |
OUTSIDE WATER SOURCE | NOT REQUIRED |
MAXIMUM CLEANING SOLUTION JET PRESSURE RATING | 90.0 POUNDS PER SQUARE INCH |
CLEANING SOLUTION MAXIMUM DISCHARGE RATE | 150.0 GALLONS PER HOUR |
MAXIMUM LIQUID JET PRESSURE RATING | 150.0 POUNDS PER SQUARE INCH |
MAXIMUM LIQUID DISCHARGE RATE | 275.0 GALLONS PER HOUR |
CLEANING GUN QUANTITY | 2 |
NOZZLE ADJUSTABILITY | NONADJUSTABLE |
HAZARD PROTECTION FEATURE | NONMAGNETIC |
HOSE CONNECTION QUANTITY | 2 |
HOSE LENGTH | 25.000 FEET NOMINAL |
HEATING METHOD | GAS OR OIL |
POWER SOURCE | GASOLINE ENGINE |
QUANTITY | 1 |
POWER SOURCE HORSEPOWER RATING | 3.5 |
CYLINDER QUANTITY | 1 |
COOLING METHOD | AIR |
PUMP QUANTITY | 1 |
PUMP CAPACITY | 275.0 GALLONS PER HOUR NOMINAL |
STORAGE TANK QUANTITY | 4 |
STORED MATERIAL | FUEL AND SOAP CONCENTRATE |
CAPACITY | 15.0 GALLONS AND 100.0 GALLONS |
MOUNTING TYPE | TRAILER |
WHEEL QUANTITY | 4 |
TIRE TYPE | PNEUMATIC |
TIRE SIZE | ANY ACCEPTABLE |

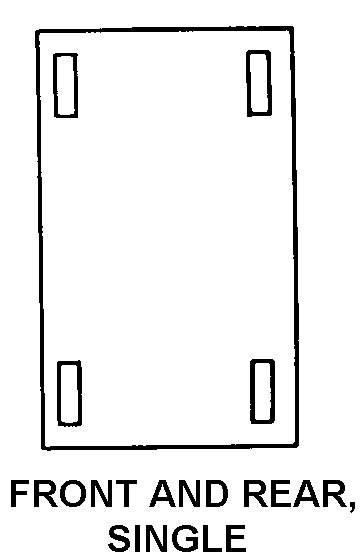

WHEEL ARRANGEMENT STYLE | 6 FRONT AND REAR, SINGLE |
RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
NONDEFINITIVE SPEC/STD DATA | 1 STYLE |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-4036 |
Restrictions/Controls & Freight Information | NSN 4940-00-977-9908
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 177680 | SPRAYER/STEAM/ETC CLEAN OUTFIT |
Less than car load rating | K | 92.5 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 72E | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | 2 | Type cargo code not applicable (for Air Force internal use). |
